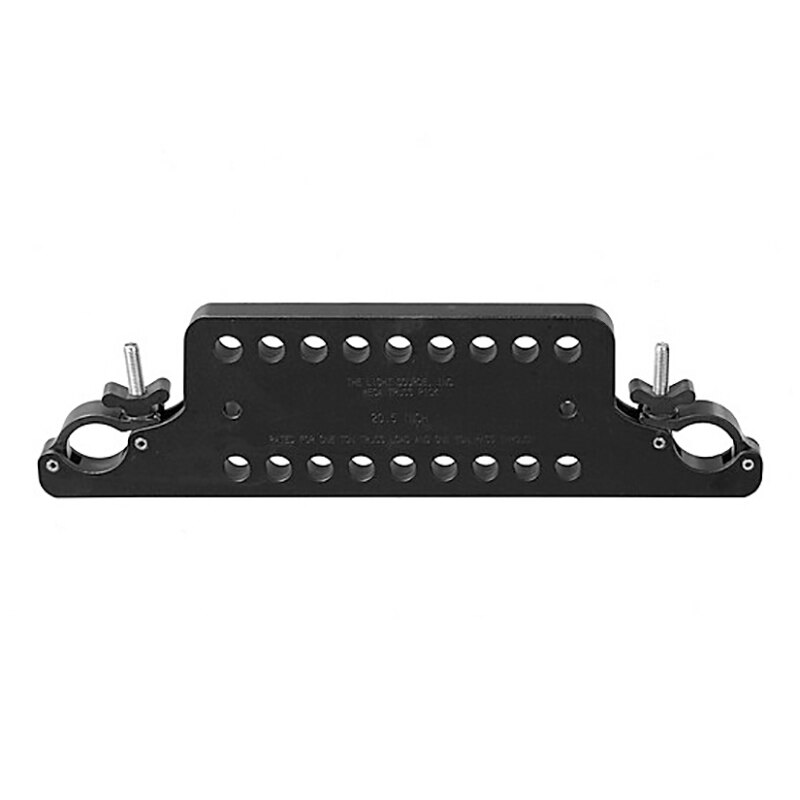

Light Source Mega-Truss Pick Multi Hole Fits Total Structures - Black Anodized

1" x 6" x 21-7/8" 6061T-6 Aluminum CNC machined with pockets to support one piece of 20.5" truss. Truss is secured by two aluminum pivoting links, half inch swivel bolts, and our solid wing nuts. Has two rigging holes for shackles, motor, or chain hook. The Mega-Truss Pick will suspend one ton of truss, and an additional one ton load suspended under the truss.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 12",16", 18", 24", and 30" truss.

Please note that these do not fit a Global Truss or Applied Truss.

Working Load Limit:

• 1 ton

Hardware:

• 1/2"-13 steel swivel eyebolts with our solid aluminum wing nuts

Dimensions:

• 1"x6"x21-7/8"Actual center hole is 1.5" wideActual single multi-hole is 5/8" wide

Weight:

• 8.6 pounds

Light Source 20.5in Mega-Truss Pick Specifications.pdf
