Light Source Micro-Clamp - Aluminum Finish - Light Source MMM
Details

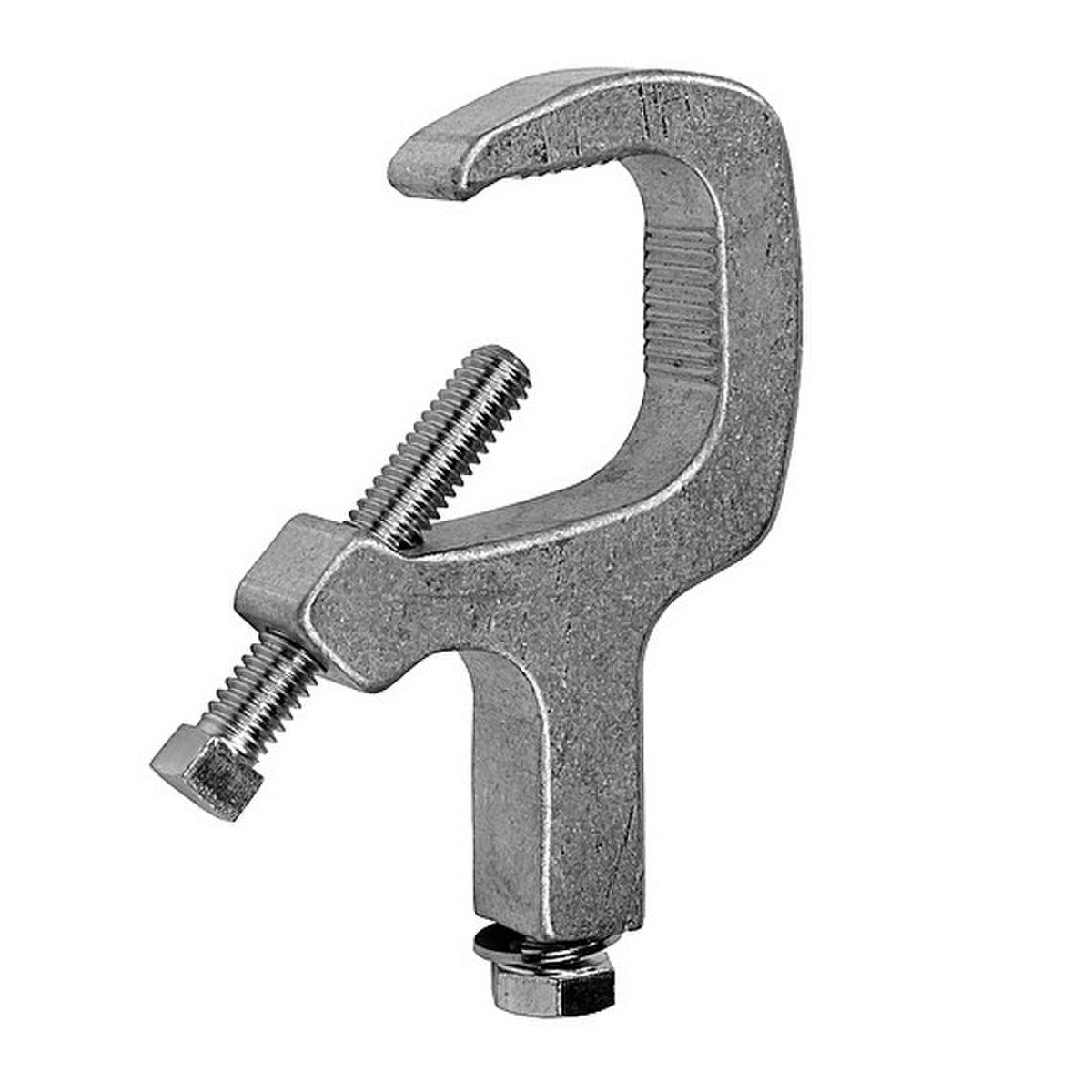

The Micro Clamp is ideal for hanging miniature fixtures like MR-16 onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners.
Spec_Sheet_4452_File_1.pdf
Quick_Reference_Guide_4394_File_1.pdf
Specifications:
- Minimum Size: 3/8" pipe, 0.675" OD
- Maximum Size: 1" pipe, 1.315" OD
- Safe Vertical Working Load: 125 lb (55kg)
- Hardware
- 5/16" x 3/4" long hex head Grade 5 Bolt
- 5/16" x 2" long square head case hardened set screw
- Belleville spring washer
- Dimensions: 3.85" tall x 2.5" wide x 0.625" thick
- Weight: 3.2 oz
Spec_Sheet_4452_File_1.pdf
Quick_Reference_Guide_4394_File_1.pdf
