  • Light Source Micro-Clamp - Black Anodized - Light Source MMB

Light Source Micro-Clamp - Black Anodized - Light Source MMB

(0)No Reviews yet
$11.14
QuantityPrice
1 – 11$11.14
12 – 23$10.58
24 – 35$10.30
36 – 47$10.03
48 +$9.75
SKU: Light Source MMB

If you add this item, you're only $138 away from free shipping! (Motor Freight Excluded)

Details

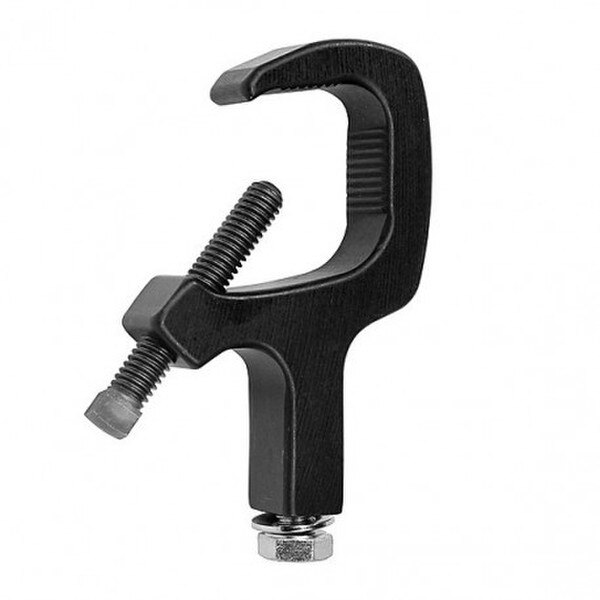

The Micro Clamp is ideal for hanging miniature fixtures like MR-16´s onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners.


Specifications:
  • Minimum Size: 3/8" pipe, 0.675" OD
  • Maximum Size: 1" pipe, 1.315" OD
  • Safe Vertical Working Load: 125 lb (55kg)
  • Hardware
    • 5/16" x 3/4" long hex head Grade 5 Bolt
    • 5/16" x 2" long square head case hardened set screw
    • Belleville spring washer
  • Dimensions: 3.85" tall x 2.5" wide x 0.625" thick
  • Weight: 3.2 oz

Spec_Sheet_4452_File_1.pdf
Quick_Reference_Guide_4394_File_1.pdf
