Light Source Micro-Clamp - Zinc Plated Bolts - Black Adonized - Light Source MMB-Z

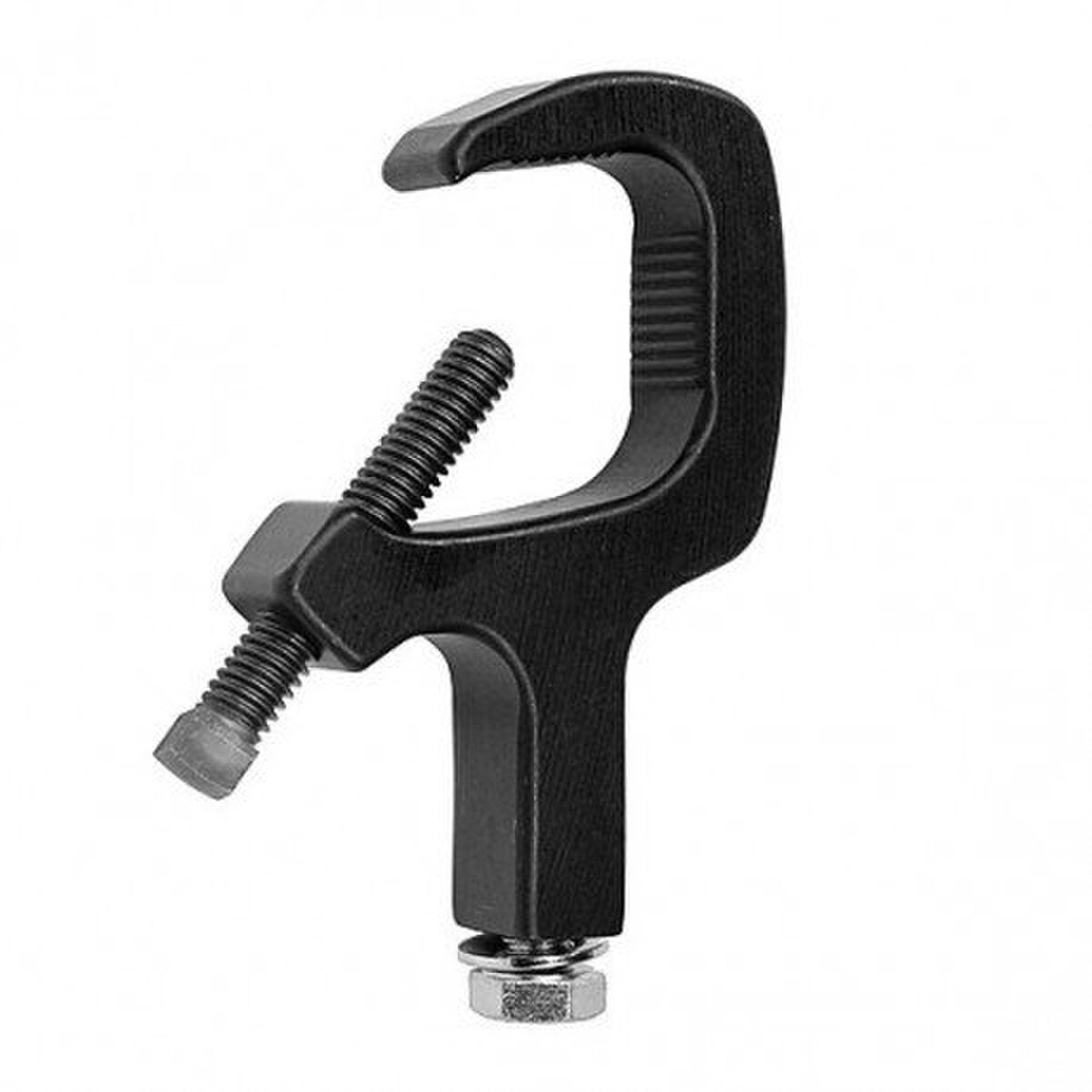

The Micro Clamp is ideal for hanging miniature fixtures like MR-16 onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners.

Specifications:

• Minimum Size: 3/8" pipe, 0.675" OD
• Maximum Size: 1" pipe, 1.315" OD
• Safe Vertical Working Load: 125 lb (55kg)
• Hardware
  • 5/16" x 3/4" long hex head Grade 5 Bolt
  • 5/16" x 2" long square head case hardened set screw
  • Belleville spring washer
• Dimensions: 3.85" tall x 2.5" wide x 0.625" thick
• Weight: 3.2 oz
