Light Source Mini-Clamp - Black Anodized - Light Source MNB
Details

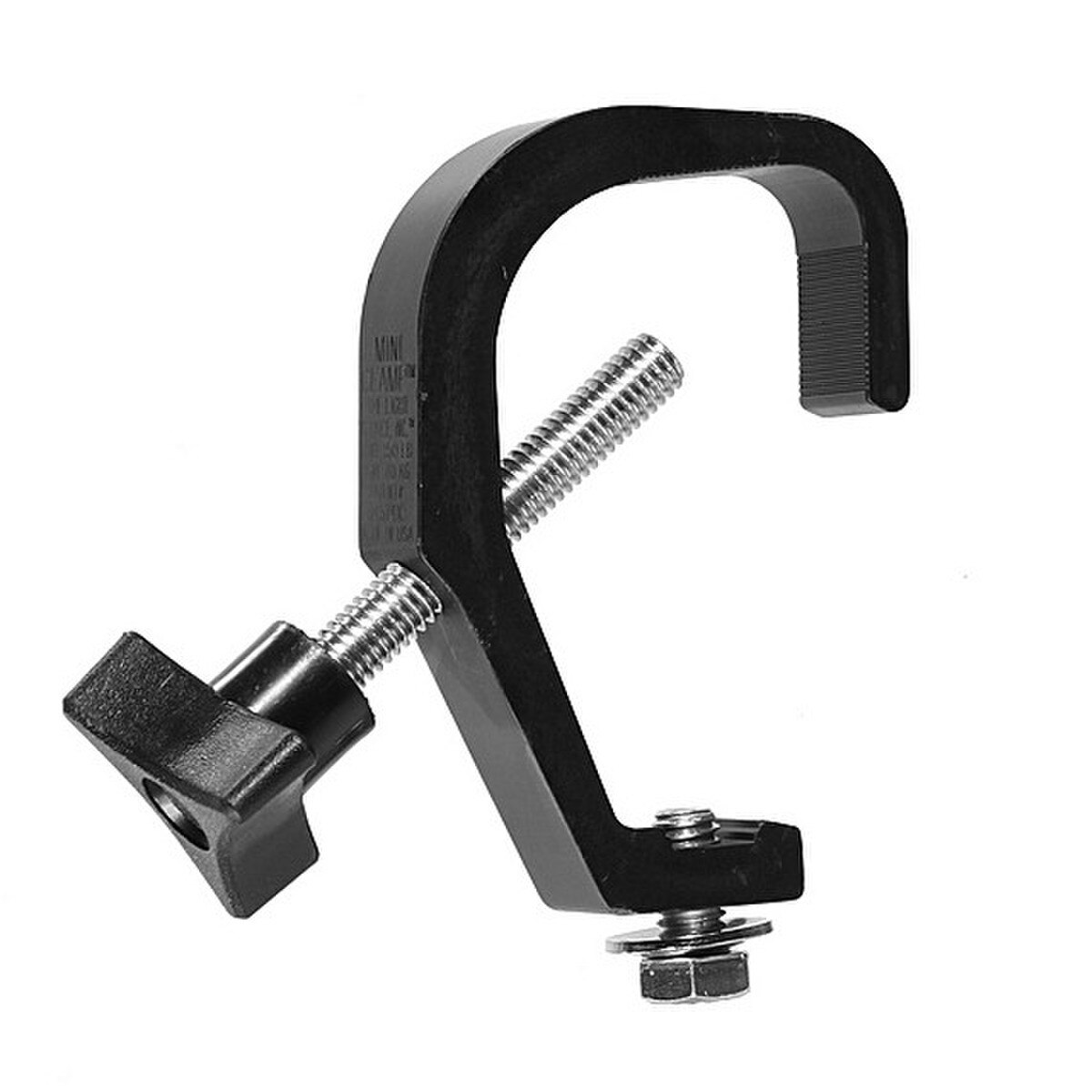

The Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power. The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is a 3/8"-16 TPI x 2" black plastic knob. The yoke bolt is 3/8"-16 TPI x 3/4" long. SWL is 150 pounds (70kg) yet the Mini-Clamp weighs less than 6 oz.!
Specifications:
- Minimum Size: 3/8" pipe, 0.675" OD
- Maximum Size: 1.5" pipe, 1.9" OD, 2" OD Truss Tube
- Safe Vertical Working Load: 150 lb (70kg)
Hardware:
- Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a black plastic knob
- Yoke bolt is a 3/8"-16 TPI x 3/4" long
- Belleville Washer
- Dimensions: 4" tall x 2 3/4" wide x 7/8" thick
- Weight: 6oz
