  • Light Source Mini-Clamp TV (Short Handle) - Aluminum Finish - Light Source MNMTV

Light Source Mini-Clamp TV (Short Handle) - Aluminum Finish - Light Source MNMTV

(0)No Reviews yet
$9.68
QuantityPrice
1 – 11$9.68
12 – 23$9.20
24 – 35$8.95
36 – 47$8.71
48 +$8.47
SKU: Light Source MNMTV

If you add this item, you're only $139 away from free shipping! (Motor Freight Excluded)

Details

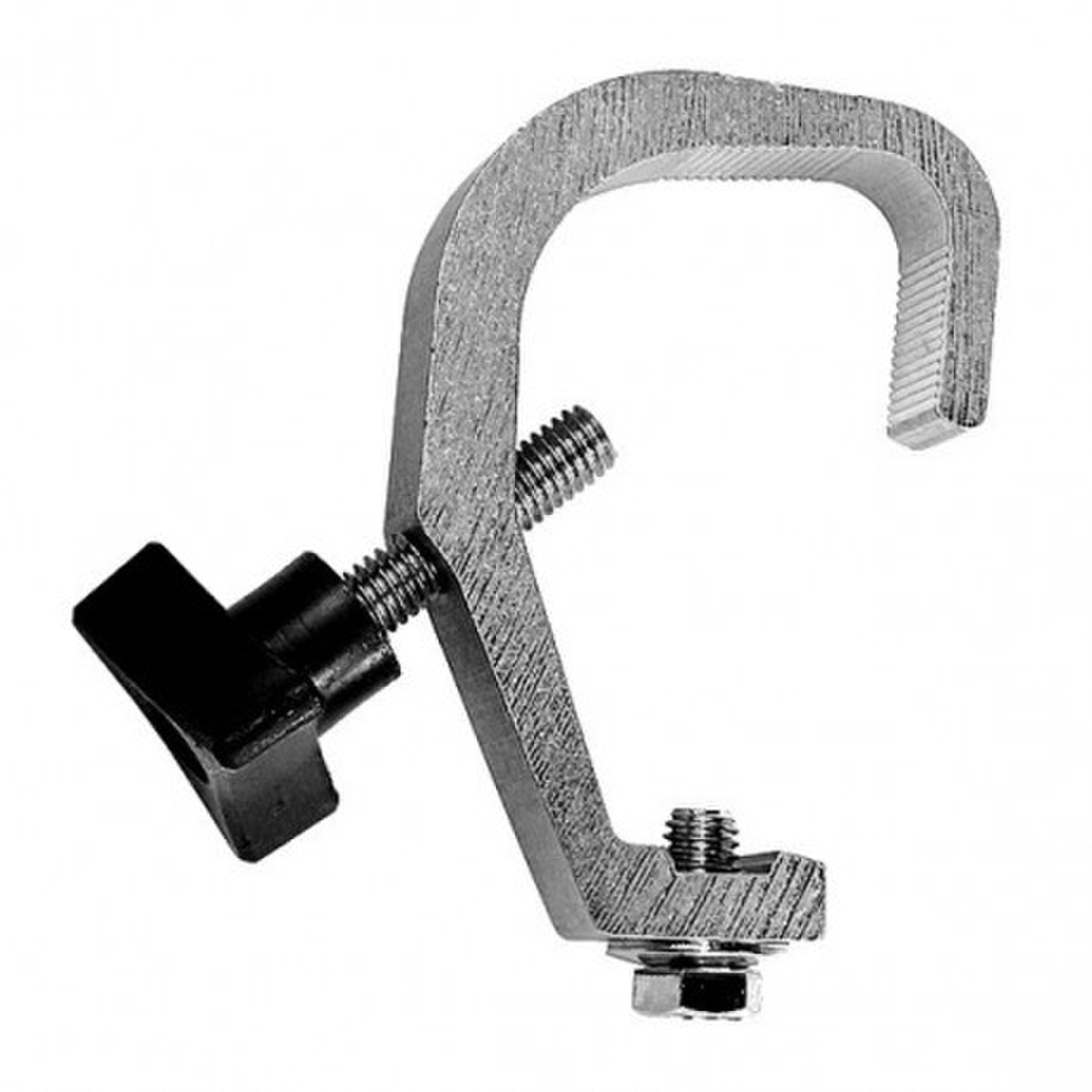

The Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.


The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 Oz.


There is a one inch difference in the short handle


Specifications:

  • Minimum Size: 3/8" pipe, 0.675" OD
  • Maximum Size: 1.25" pipe, 1.9" OD, 2" OD Truss Tube
  • Safe Vertical Working Load: 150 lb (70kg)
  • Hardware:
    • Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a black plastic knob
    • Yoke bolt is a 3/8"-16 TPI x 3/4" long
    • Belleville Washer
  • Dimensions: 3" tall x 2 3/4" wide x 7/8" thick
  • Weight: 6oz

Spec_Sheet_4454_File_1.pdf
Quick_Reference_Guide_4394_File_1.pdf
