Light Source Mini-Clamp TV (Short Handle) - Black Anodized - Light Source MNBTV

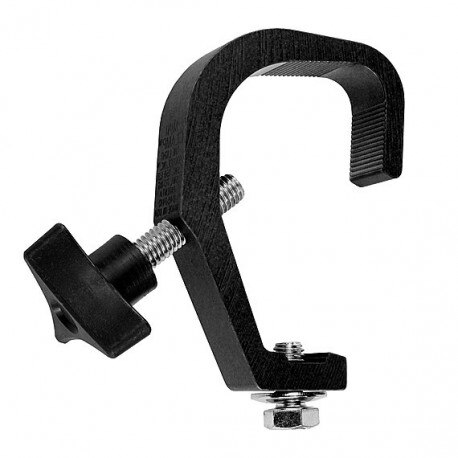

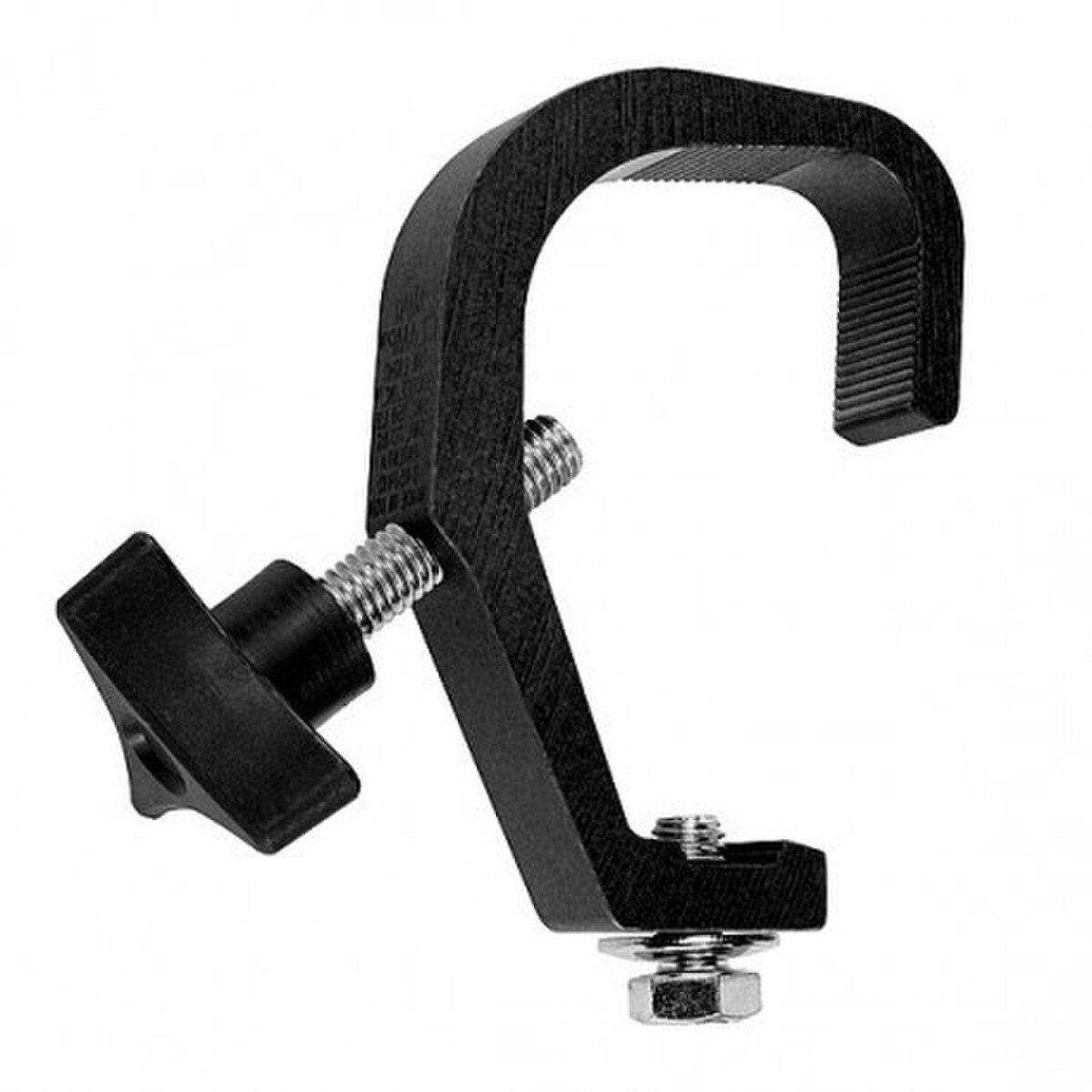

The Mini-Clamp is perfect for PAR 38’s, Pin Spots, and other small fixtures. The clamp is made from an aircraft grade aluminum extrusion with micro-grooves that conform to the pipe for real gripping power.

The Mini-Clamp will grip from 3/4" to 2" tubing. Pipe bolt is 3/8"-16 TPI x 2" Black Plastic Knob. Yoke bolt is a 3/8"-16 TPI x 3/4" long. SWL is 150 pounds,70kg, yet the Mini-Clamp weighs less than 6 Oz.!

There is a one inch difference in the short handle.

Specifications:

• Minimum Size: 3/8" pipe, 0.675" OD
• Maximum Size: 1.25" pipe, 1.9" OD, 2" OD Truss Tube
• Safe Vertical Working Load: 150 lb (70kg)
• Hardware:
  • Pipe bolt is a steel 3/8"-16 TPI x 2" stud with a black plastic knob
  • Yoke bolt is a 3/8"-16 TPI x 3/4" long
  • Belleville Washer
• Dimensions: 3" tall x 2 3/4" wide x 7/8" thick
• Weight: 6oz
