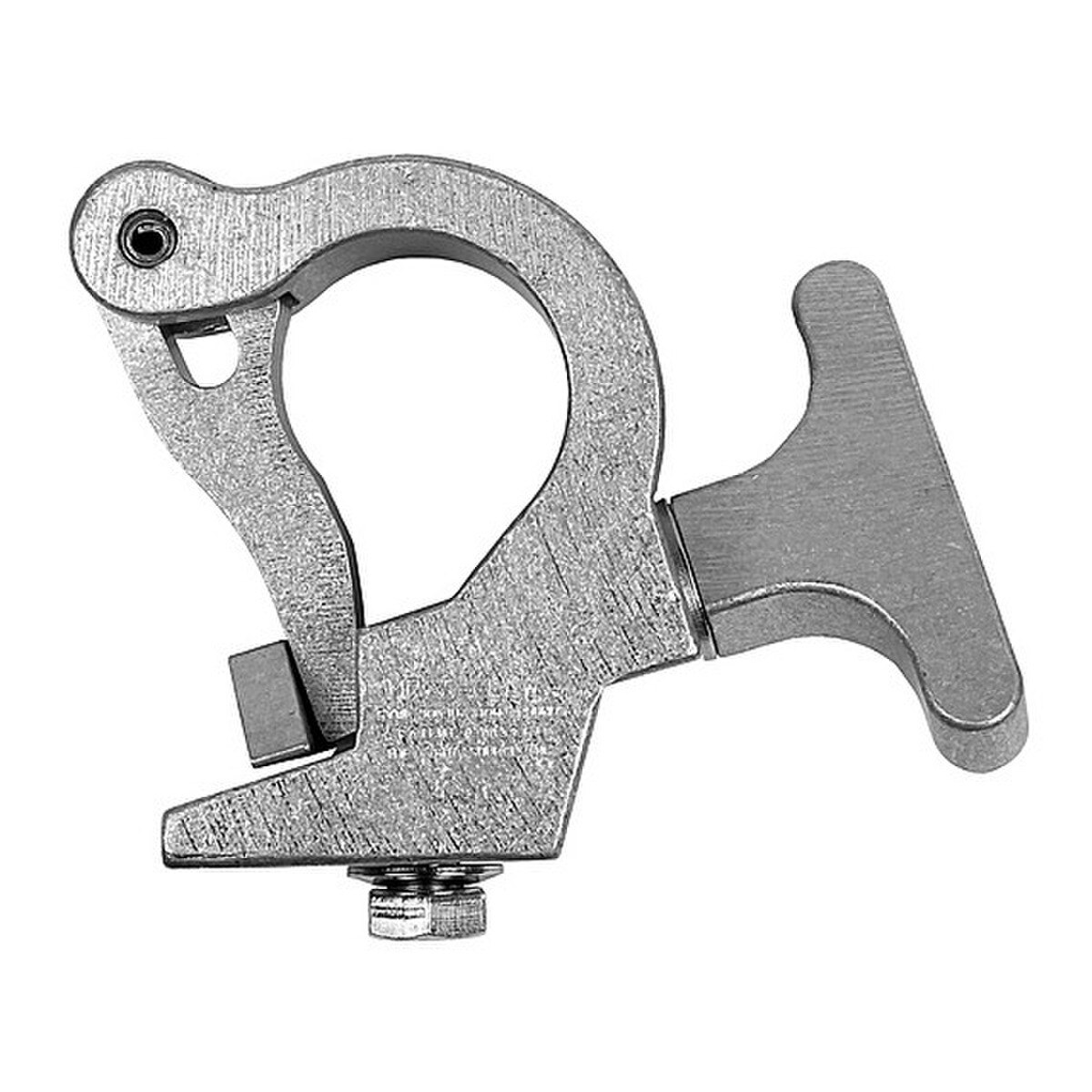

Light Source Mini-Claw Stainless Steel
Details
The Mini-Claw has a lightweight profile and is used for hanging small lighting fixtures on truss or pipes.
The Mini-Claw’s wrap around construction protects truss from being marred and supports the weight of the fixture as it is being secured.
Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 TPI by 3/4" long hex head grade 5 bolt for fastening to the fixture.
Features:
- Minimum Size: 1.25" pipe, 1.66" OD
- Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load: 150 lb 66kg
Hardware:
- 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt
- 1" Belleville spring washer
Specifications:
- Dimensions: 3 3/8" tall x 2" thick
- Weight: 15 oz
Light Source MIM.jpg
