Light Source Mini Coupler – Black Anodized - Light Source MUB

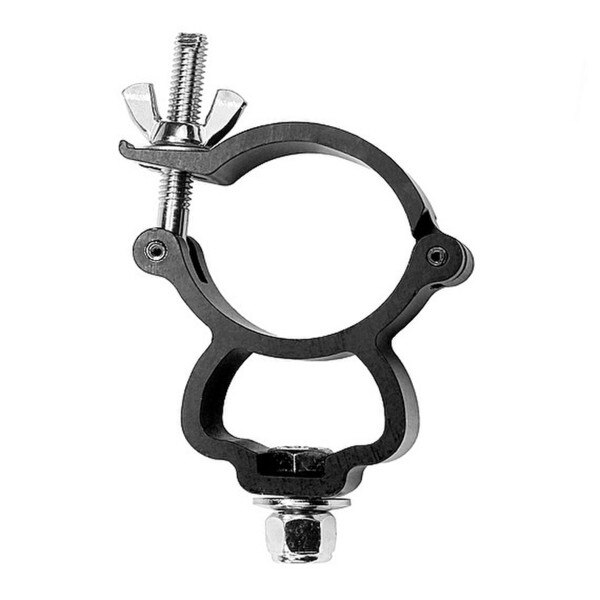

The Mini-Coupler is 1" wide and fits from 1.65" OD to 2" OD tube. The Mini-Coupler uses a 3/8 x 1 long Grade 5 bolt with a Belleville washer and a Nyloc nut. The Mini-Coupler has a safe working load of 330 lbs (150 Kg).


Specifications:

• Minimum Size: 1.25" pipe, 1.66" OD pipe
• Maximum Size: 2" OD truss tube, 1.5" pipe, 1.90" OD pipe
• Safe Vertical Working Load: 330 lbs (150 Kg)
• Hardware: 3/8"  x1" long Grade 5 bolt with a Belleville washer and a Nyloc nut
• Weight: 0.3 lbs
