Light Source Monstro-Clamp 4in. with Stainless Steel Hardware - Aluminum Finish - Light Source MOM4SS
Details

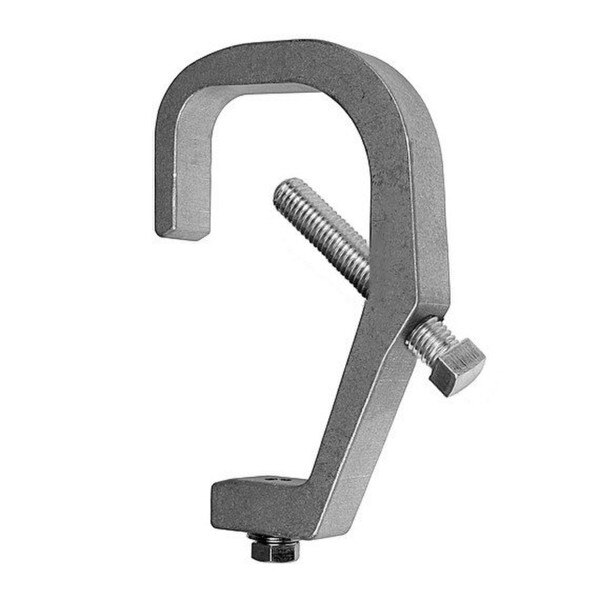

The Monstro-Clamp 4" fastens to those really big (2 3/8" OD to 4" OD) pipes. CNC cut from a solid one inch thick aluminum plate. 1/2" square head bolt.
Spec_Sheet_4460_File_1.pdf
Specifications:
- Minimum Size: 2" pipe, 2.375" OD
- Maximum Size: 3.5" pipe, 4" OD
- Safe Vertical Working Load: 250 lbs
- Hardware:
- 1/2" x 1" hex head bolt for fastening fixture
- 1/2" x4" square head set screw to fasten to pipe
