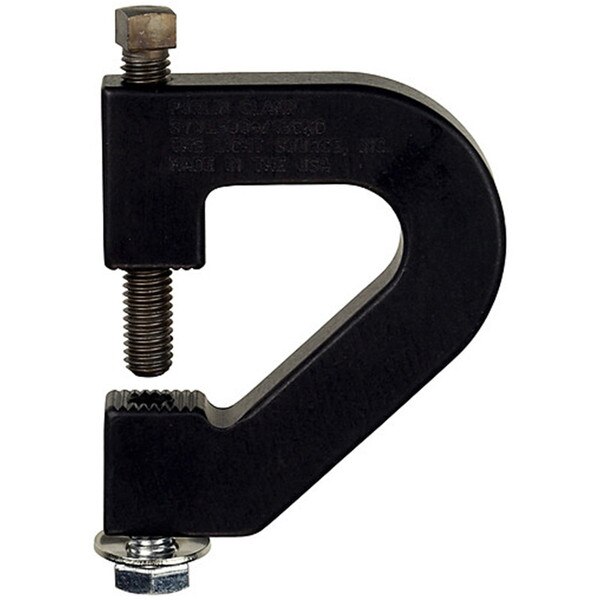

Light Source Purlin Clamp - 1/2" Fasteners - Black Finish - Light Source PCB1/2
Details
The Purlin Clamp is perfect for installing to purlins, I-beams and bar joists up to 1" thick. It has a 1/2" × 2.5" square head set screw for locking onto I-beam and 1/2" × 1" grade 5 hex head bolt supplied to connect load or to use for 1/2" – 13 tpi threaded rod. Micro-grooves secure the connection to beam. 1" thick.
Specifications:
- Safe Vertical Working Load: 500 lbs
- Hardware:
- 1/2" × 2 1/2" Square Head Set Screw
- 1/2" × 1″ Hex Head Cap Screw
- 1" Belleville Washer
- Dimensions: 3 3/8" × 3 7/8"
- Weight: 0.40 lb
