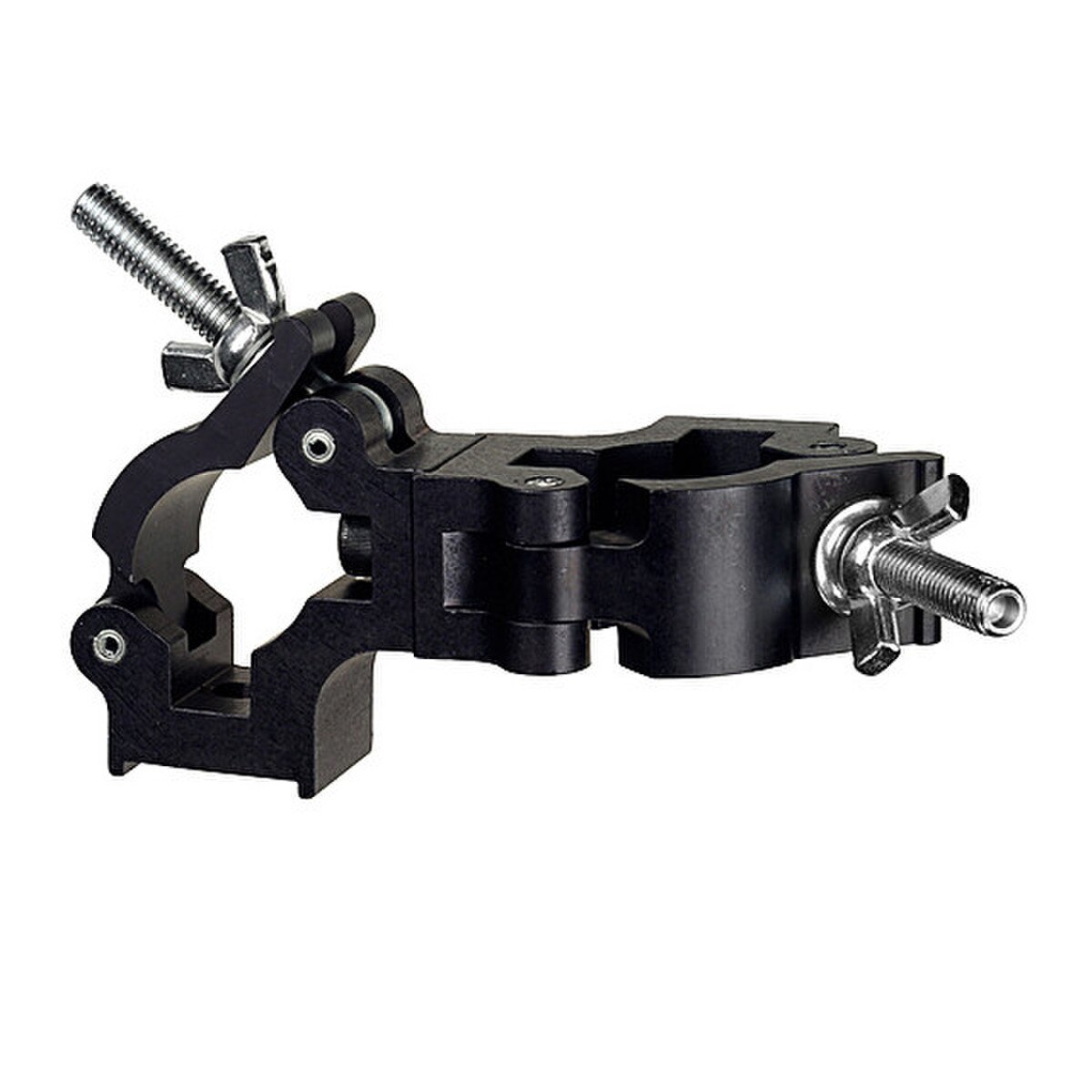

Light Source Quad Coupler 1.5 90° - Black Anodized

The Quad Coupler 1.5 90 Degree is made by bolting two Quad Couplers together with the keyed sides facing and interlocking with each other.

Specifications:

• Minimum Size: 1.25" OD tube, 1" pipe, 1.315" OD pipe
• Maximum Size: 1.5" OD tube
• Safe Vertical Working Load: 770 lbs
• Hardware:
  • 3/8" – 16 tpi x 1.25" Socket Head Cap Screw
  • 2 way nylon locking nut
• Dimensions: 1/2" thick (each coupler)
• Weight: 1 lb
