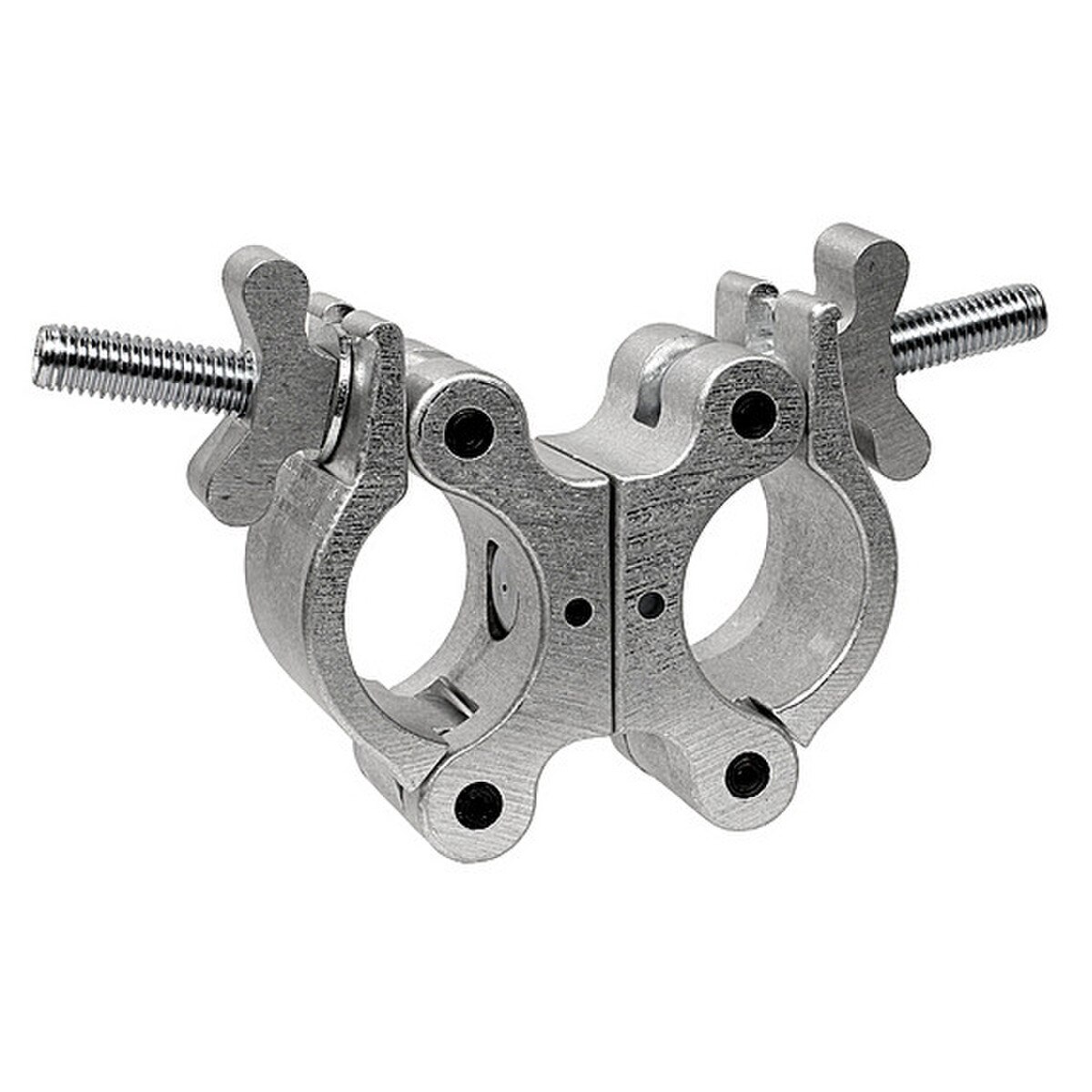

Light Source Swivel Coupler - Aluminum Finish - Light Source MLSM

The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has the wide wing nuts for fastening the clamp to the pipe or tube. The Swivel Coupler can be locked into a 90 degree fixed coupler by adding a 7/32" x 2" spiral pin.

Specifications:

• Minimum Size: 1.25" pipe, 1.66" OD pipe
• Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
• Safe Vertical Working Load: 1,100 lbs (500kg)
• Weight: 2.2 lbs
