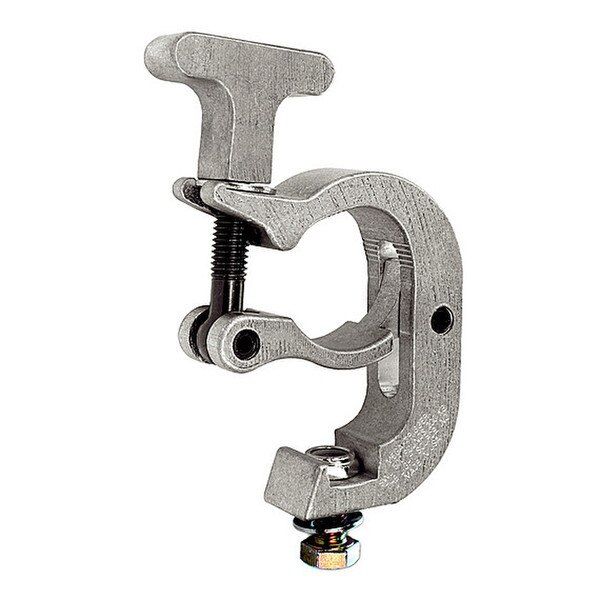

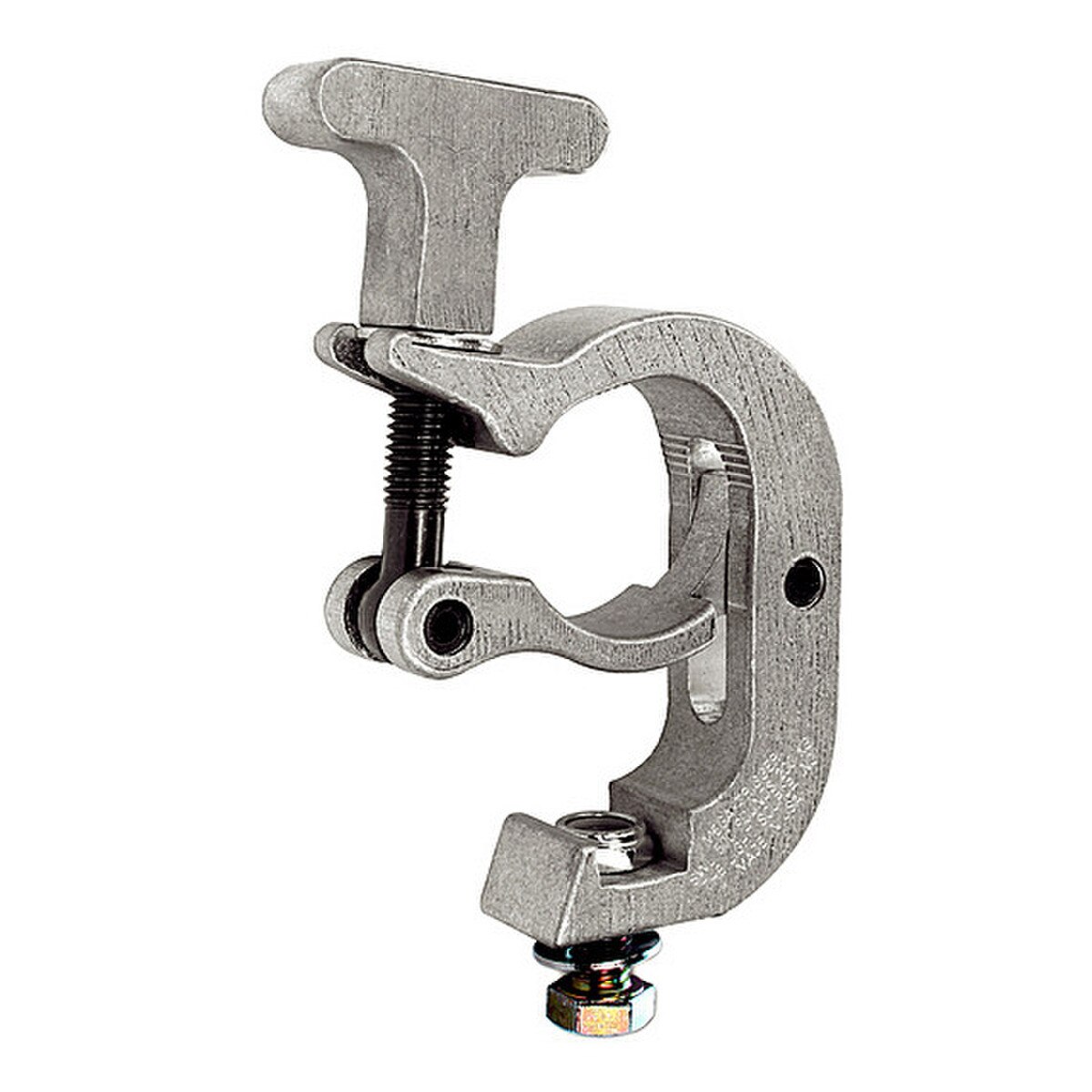

Light Source TC Clamp - Aluminum Finish - Light Source TCM

The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25″ × 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG).

Weight is 1.22 pounds (.55 KG)

Specifications:

• Safe Vertical Working Load: 450 lbs (200 kg)
• Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" OD pipe
• Maximum Size: 2" OD truss tube,1.5" pipe, 1.90" OD
• Hardware:
  • 1.25" x 13 TPI Grade 8 fastener with Nylock nut
  • 1" Belleville spring washer
• Dimensions: 4 5/8" tall x 4" wide x 1 3/16" thick
• Weight: 1.25 lbs
