  • Light Source TC Clamp Swivel - Black Anodized

Light Source TC Clamp Swivel - Black Anodized

(0)No Reviews yet
$99.89
QuantityPrice
1 – 11$99.89
12 – 23$94.90
24 – 35$92.40
36 – 47$89.90
48 +$87.40
SKU: Light Source TCSB

Details

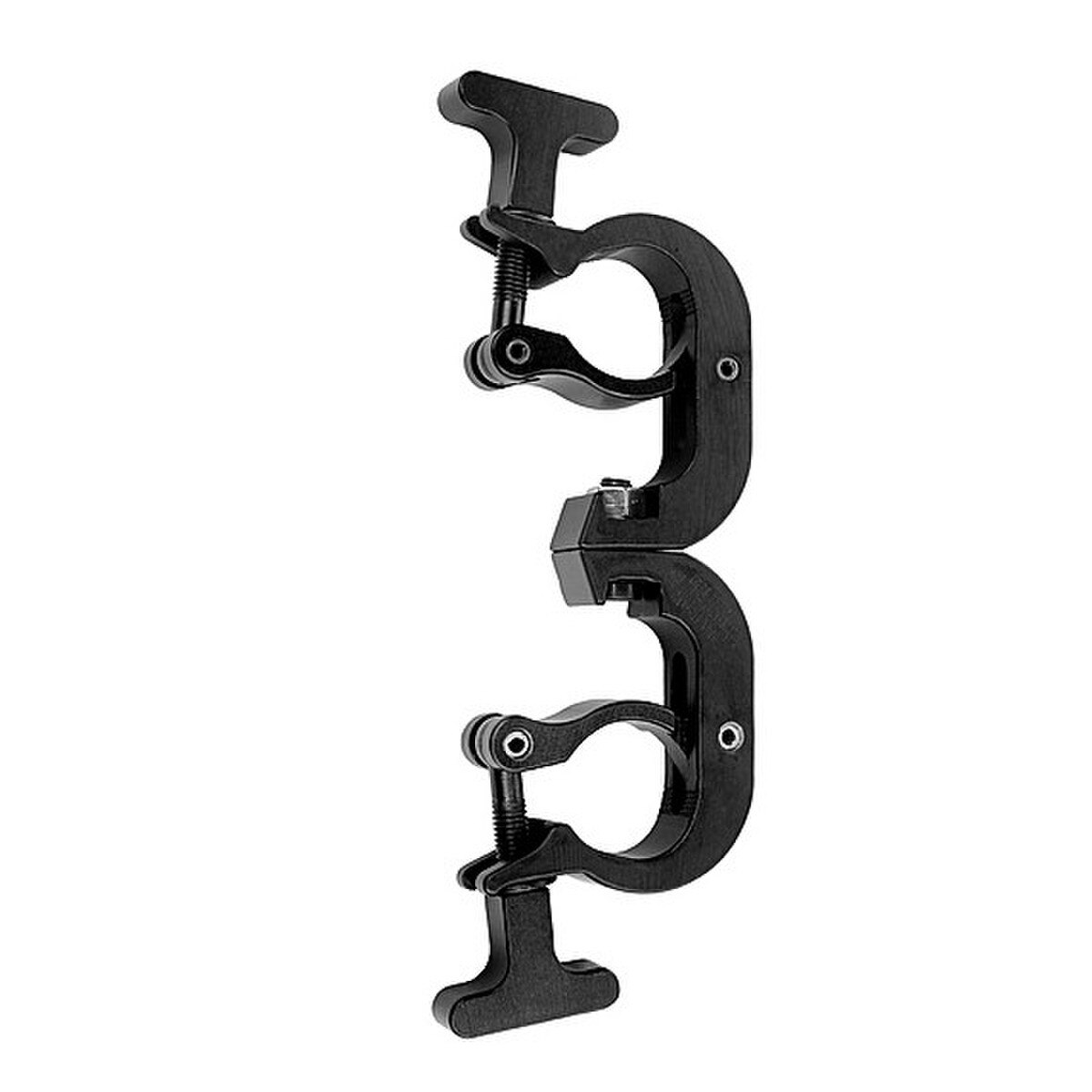

The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25" × 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG). Weight is 1.22 pounds (.55 KG)
  • Minimum Size
    • 1.5" OD tube, 1.25" pipe, 1.66" OD pipe
  • Maximum Size
    • 2" OD truss tube,1.5" pipe, 1.90" OD
  • Safe Vertical Working Load
    • 450 Pounds
  • Hardware
    • 1.25" × 1/2" – 13 TPI Grade 8 fastener with Nylock nut.
    • 1" Belleville spring washer.
  • Dimensions
    • 4 5/8" tall x 4" wide x 1 3/16" thick
  • Weight
    • 1.25 lbs.
