Light Source Truss Dolly Mega-Coupler Install Kit - Silver

(0)No Reviews yet
$187.20
QuantityPrice
1 – 11$187.20
12 – 23$177.84
24 – 35$173.16
36 – 47$168.48
48 +$163.80
SKU: Light Source MTD-K-CPLRINST

Details

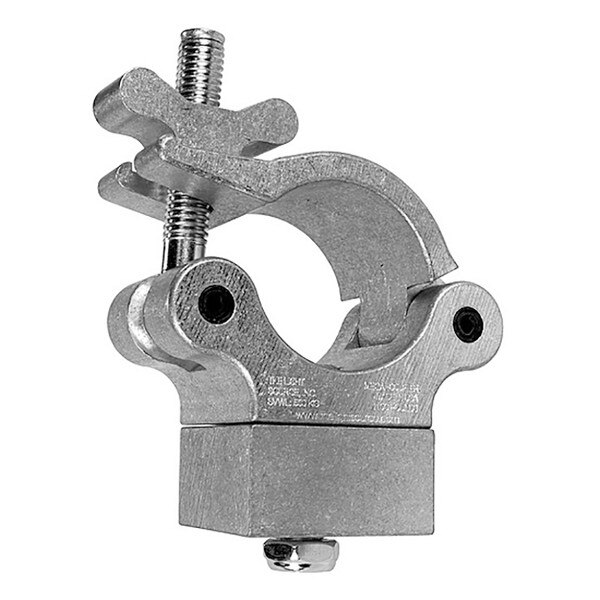

Mega-Coupler install kits provide the components to add Mega-Couplers to the regular Mega-Truss Dolly. Since Mega-Truss Dollies are sold in pairs, the install kit comes with 4 Mega-Couplers, 4 spacers, 4 nylock nuts, 4 flat head bolts and 4 hex head bolts. This allows for 2 Mega-Couplers per individual Mega-Truss Dolly.


The spacers have openings for a flat head bolt on one side and a hex head bolt on the other side. Use the flat head bolts for installing the Mega-Couplers in the outside position. Use the hex head bolt for installing the Mega-Couplers in the inside position.

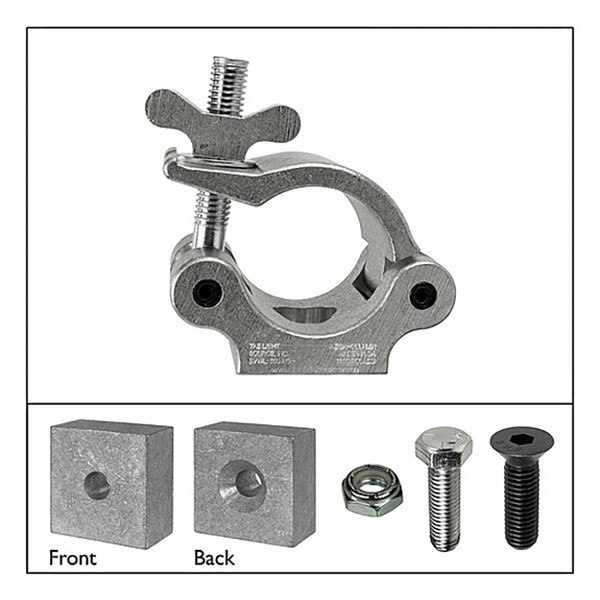

Components of Mega-Coupler Truss Dolly Install Kit:

  • 4 Mega-Couplers,
  • 4 Spacer Blocks (Each spacer block has an opening for a flat head bolt on one side and a hex head bolt on the other side.)
  • 4 Nylock Nuts,
  • 4 Flat Head Bolts
  • 4 Hex Head Bolts

Weight:

  • 3.78 lbs

Light Source Mega-Truss Dolly Parts Specifications.pdf
