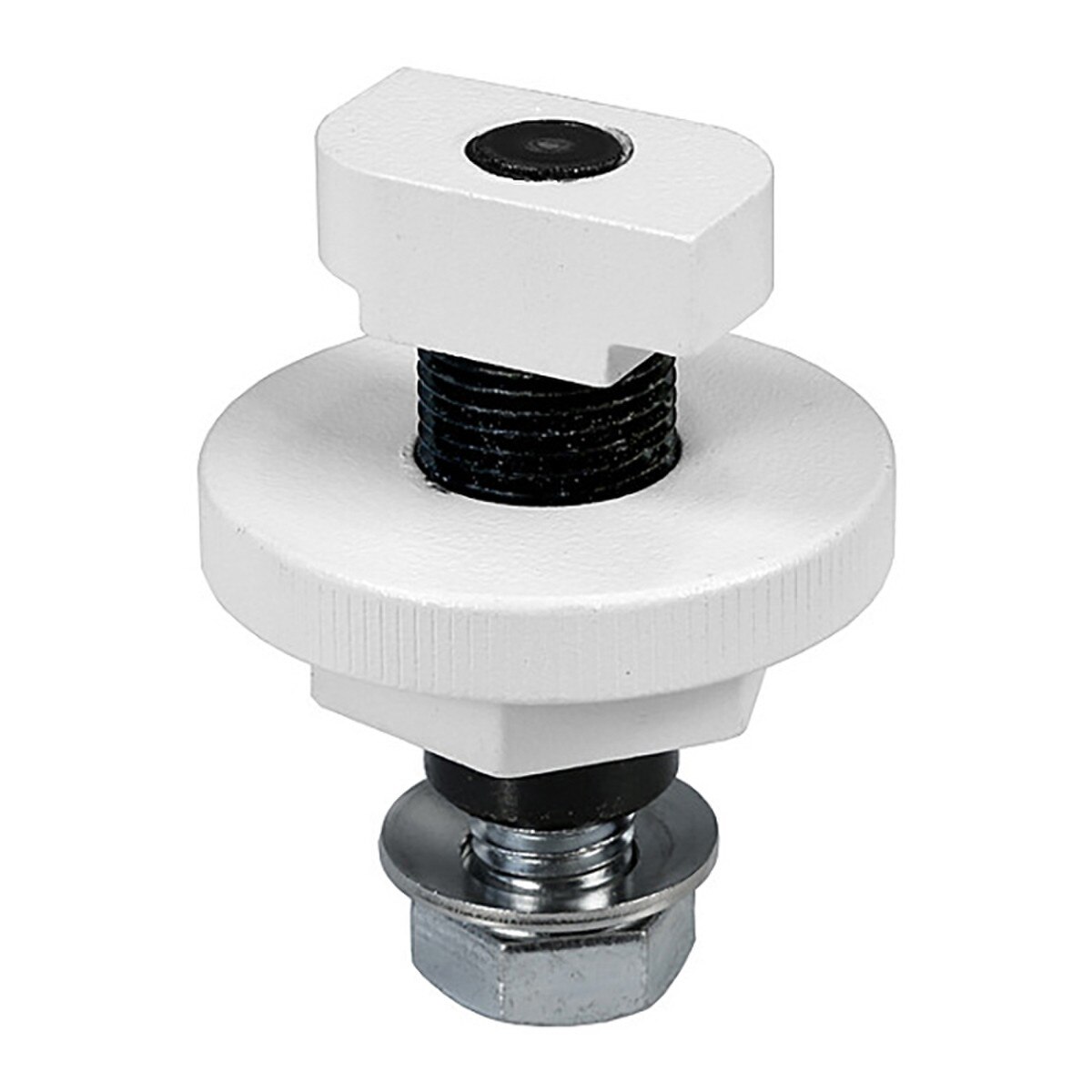

Light Source Uni-Bolt for Strut Channels - White Powder Coat
Details
The Uni-Bolt fastens fixtures or pipes to strut channel. Insert the Uni-Bolt into the strut channel, rotate 90 degrees and spin the 2" diameter knurled disk to lock into the channel. Also available for 1 5/8" x 13/16" strut channel.
The UB2B works with Uni-Strut product series: P1000, P1100, P2000, P3000, P5000, and P5500
The UB2B2 works with Uni-strut product series: P3300, P4000, and P4100
Specifications:
- Minimum Size: 1 5/8" x 1 5/8" Strut Channel
- Working Load Limit: 250 lbs.
- Hardware: 1/2-13 TPI x 1" Hex Head Cap Screw Grade 5 Zinc Plated.
- Weight: 0.35 lbs.
Light Source Uni-Bolt for Strut Channels Specifications.pdf
UB2B Channel Compatibility Chart.pdf
