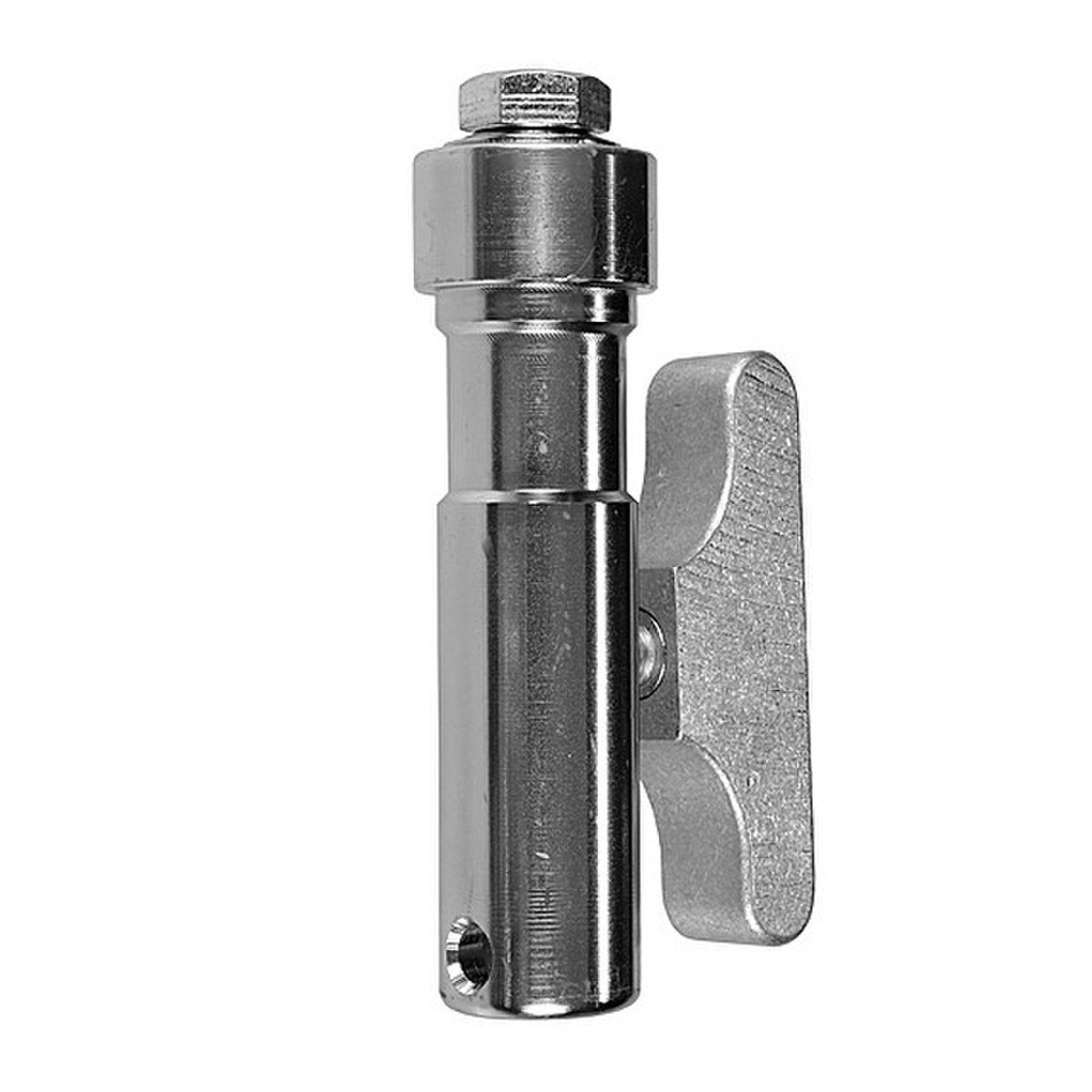

Light Source Universal Stand Adapter - Aluminum Finish

Universal Stand Adaptor is made from 12L14 Steel Pin CNC machined to fit the 5/8 inch male pins on stands or hanging adaptors. Also fits the 1-1/8 inch receivers on Junior stands. It has a 1/2"-13 tpi threads with 1/2"-13 tpi × 1" long hex head bolt with 1" Belleville washer to fasten fixture to adaptor.

Specifications:

• Hardware: 1/2"-13 tpi × 1" long hex head Grade 5 bolt with 1" Belleville washer

Dimensions:

• 5 1/4" × 1" Adapter
• 2 1/2" × 1" Handle
• Weight: 1.2 lbs
