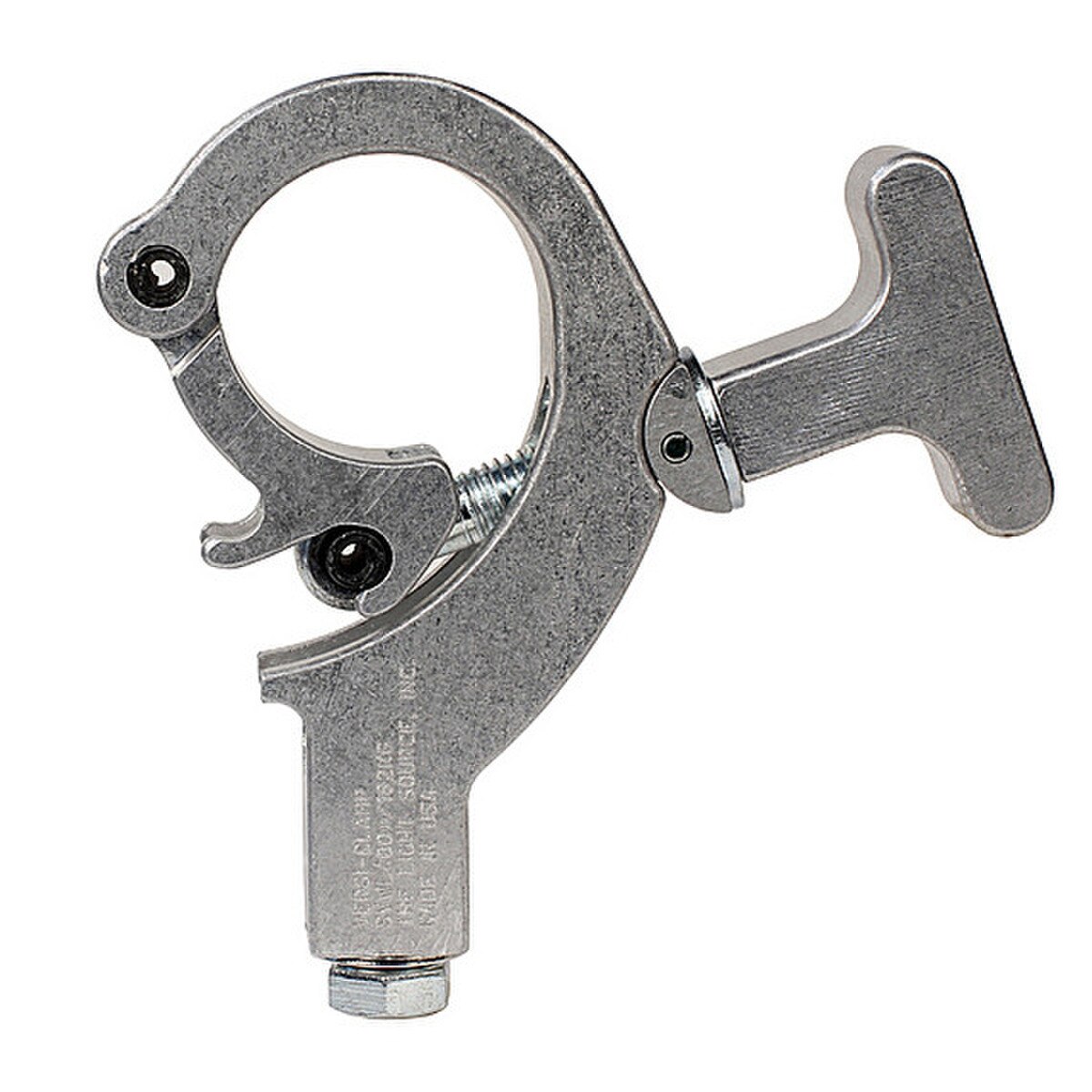

Light Source Versi-Clamp - Aluminum Finish - Light Source VCM

The Versi-Clamp wraps around the entire range of standard truss, from 2" OD down to 1" OD, all without marring the truss. The unique 2 position latch on the link saves time when switching from 2" truss to a small truss, just connect to the second latch for the smaller sizes. The quick release handle takes only 2 turns to be able to drop the locking mechanism, and release the clamp from the truss.

Specifications:

• Minimum Size: 1" tubing, 3/4" pipe, 1.050" OD pipe
• Maximum Size: 2" OD truss tube, 1.5" pipe, 1.90" OD pipe
• Safe Vertical Working Load: 400 lbs (182 kg)
• Weight: 1.2 lbs

Quick_Reference_Guide_4394_File_1.pdf
