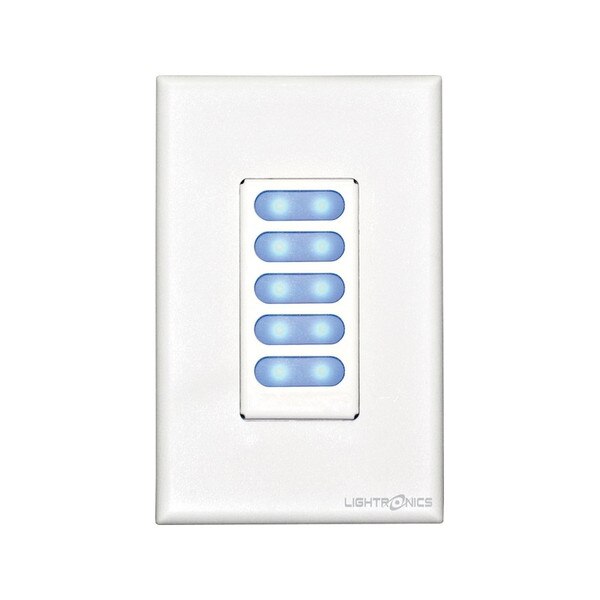

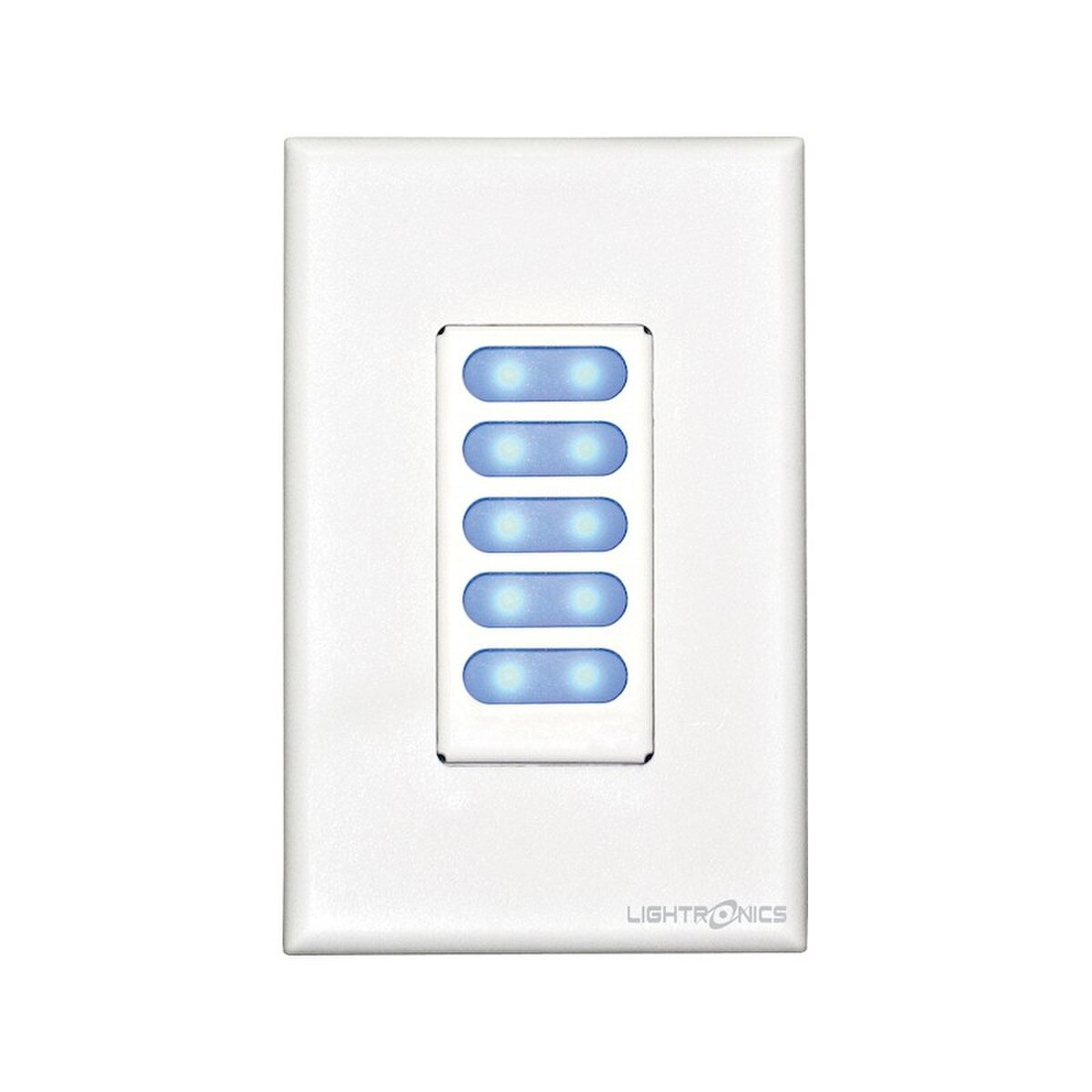

Lightronics 5-Scene Button Remote Station - Toggle Scene Control - Single Gang Box
Details
AK Series remote units are wall-mounted, multiscene remotes for use with the Lightronics AR1202 architectural dimmer and certain other Lightronics products. Each button activates a complete lighting scene. LED indicators show which scene is active.
Specification_Sheet_95555_File_1.pdf
User_Manual_95555_File_2.pdf
AK Series units fit into standard single gang wall switch boxes. They communicate with the AR1202 via a 4-wire bus, which will accommodate several remotes and other controls. All wiring is low voltage. The units generally operate in an exclusive mode where only one scene can be active at a time. Each scene may be toggled on and off. When a scene is selected, the AR1202 circuits fade at a user-controlled rate to the setting for that scene. Scenes activated by these remotes are actually set up and stored in the AR1202 dimmer. The remotes only tell the AR1202 which scene(s) to activate.
Specifications:
- 5 Scene Push Button
- Screwless Faceplate
- Toggle Scene Control
- Blue LED Backlit Buttons
- Fits Single Gang Wall Box
- All Low Voltage Wiring
- Button Engraving Available
