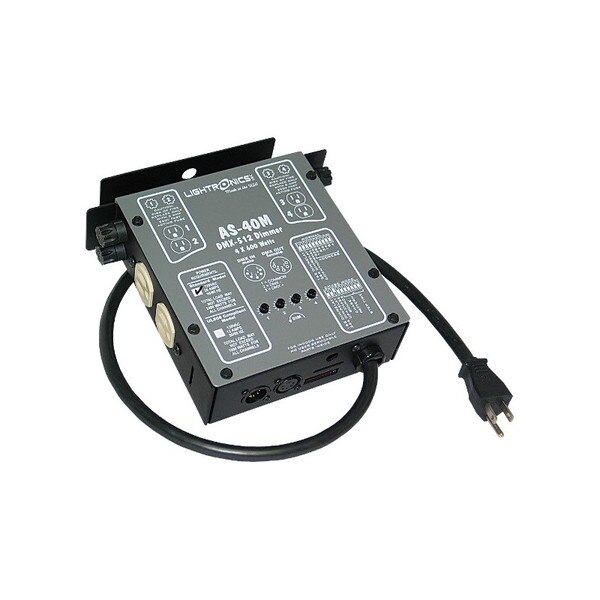

Lightronics AS40M Portable Dimmer - 4 Ch 600W per Ch Built-In Control

The AS40M is a compact portable 4 channel light dimmer. It has a maximum capacity of 600W per channel and maximum total load capacity of 2400W. It is supplied with an input power cord which may be connected to a 120 VAC, 20A power circuit. The unit operates using the USITT DMX-512 protocol. The AS40M may be operated in relay (non-dim) mode. The unit will also function as a stand-alone chaser and has eight primary preset chase patterns which may be used. An additional manual operating mode is available which enables the unit to function as a stand alone dimmer with manual control of each channel.

Specifications:

• 4 Channels
• 600W per channel
• Built-in control
• 8 built-in chases
• Relay mode switchable
• DMX-512 protocol
• 5A fuses
• Edison output
• 120V

Options:

• UB - UL-508 Compliant - 12 Amp mains circuit breaker, 1440 Watts total power
• UT - UL-508 Compliant - Twistlock power input connector
• 230V - 230 Volt operation
