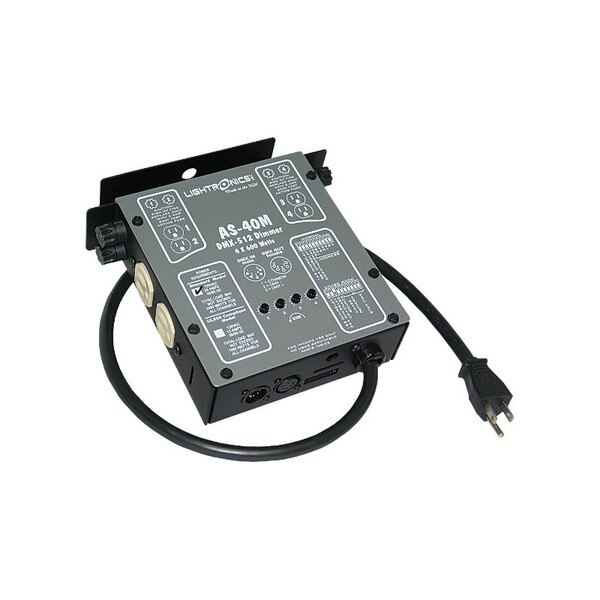

Lightronics AS40M Portable Dimmer - 4 Channel / 600W per Channel / Twistlock Power Input Connector
Details
The AS40M is a compact portable 4 channel light dimmer. It has a maximum capacity of 600W per channel and maximum total load capacity of 2400W. It is supplied with an input power cord which may be connected to a 120 VAC, 20A power circuit. The unit operates using the USITT DMX-512 protocol. The AS40M may be operated in relay (non-dim) mode. The unit will also function as a stand-alone chaser and has eight primary preset chase patterns which may be used. An additional manual operating mode is available which enables the unit to function as a stand alone dimmer with manual control of each channel.
Specifications:
- 4 Channels
- 600W per channel
- Built-in control
- 8 built-in chases
- Relay mode switchable
- DMX-512 protocol
- 5A fuses
- Edison output
- 120V
- UT - UL-508 Compliant - Twistlock power input connector
