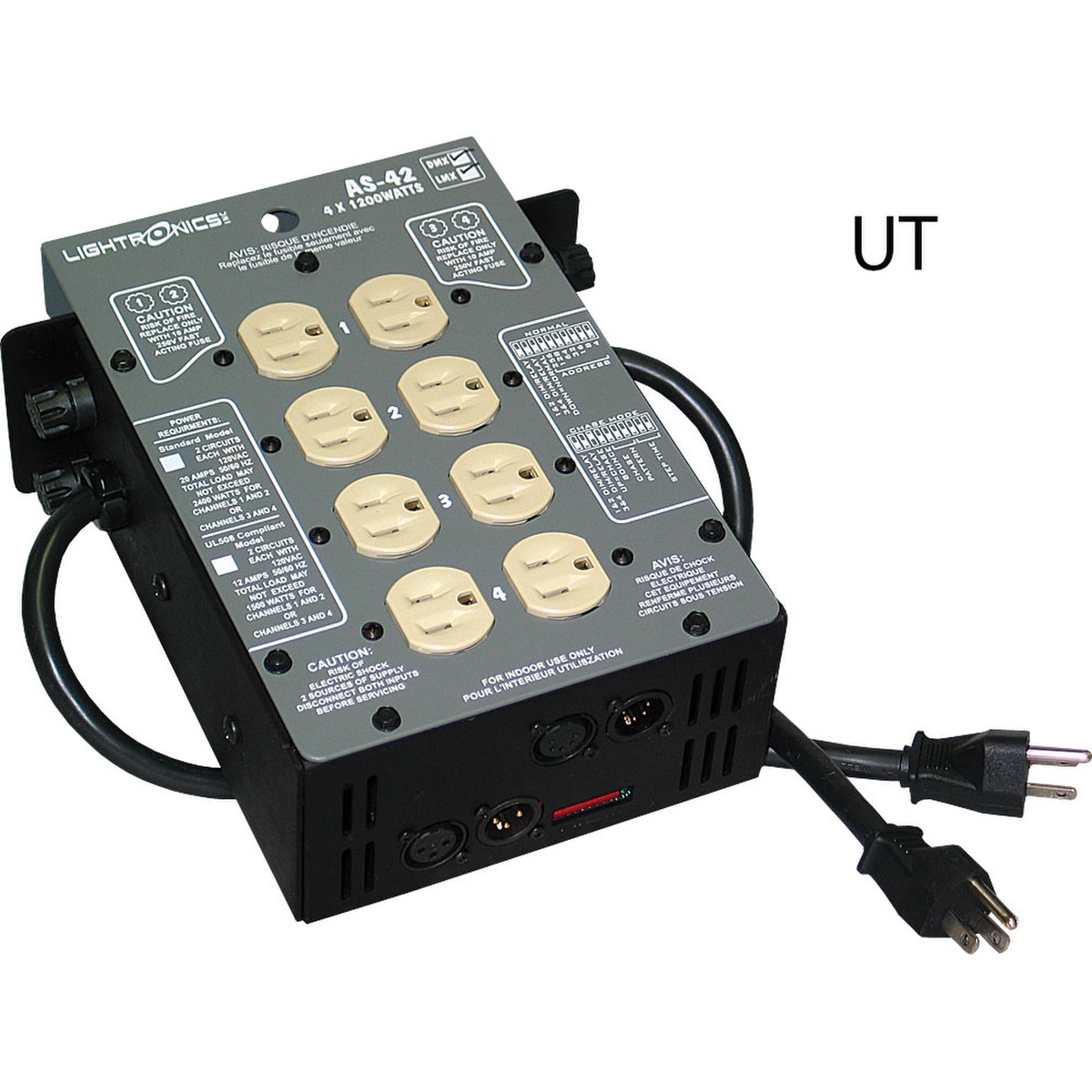

Lightronics AS42 Portable Dimmer - 4 Ch 1200W UL-508 Compliant - Twistlock Power Input Connector
Details
The AS42D is a compact portable 4 channel light dimmer. It has a maximum capacity of 1200W per channel and maximum total load capacity of 4800W. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.
Specifications:
- 4 Channels
- 1200W per Channel
- 8 Built in Chases
- DMX-512 & LMX-128
- Relay Mode Switchable
- Fuses
- Edison Outputs
- 120V
- UT - UL-508 Compliant - Twistlock power input connector
