Lightronics Architectural Dimmer Expander Module

Flexible, powerful, and affordable, this easy to install and use architectural system is equally at home in churches, schools, theaters, hotels, and more!

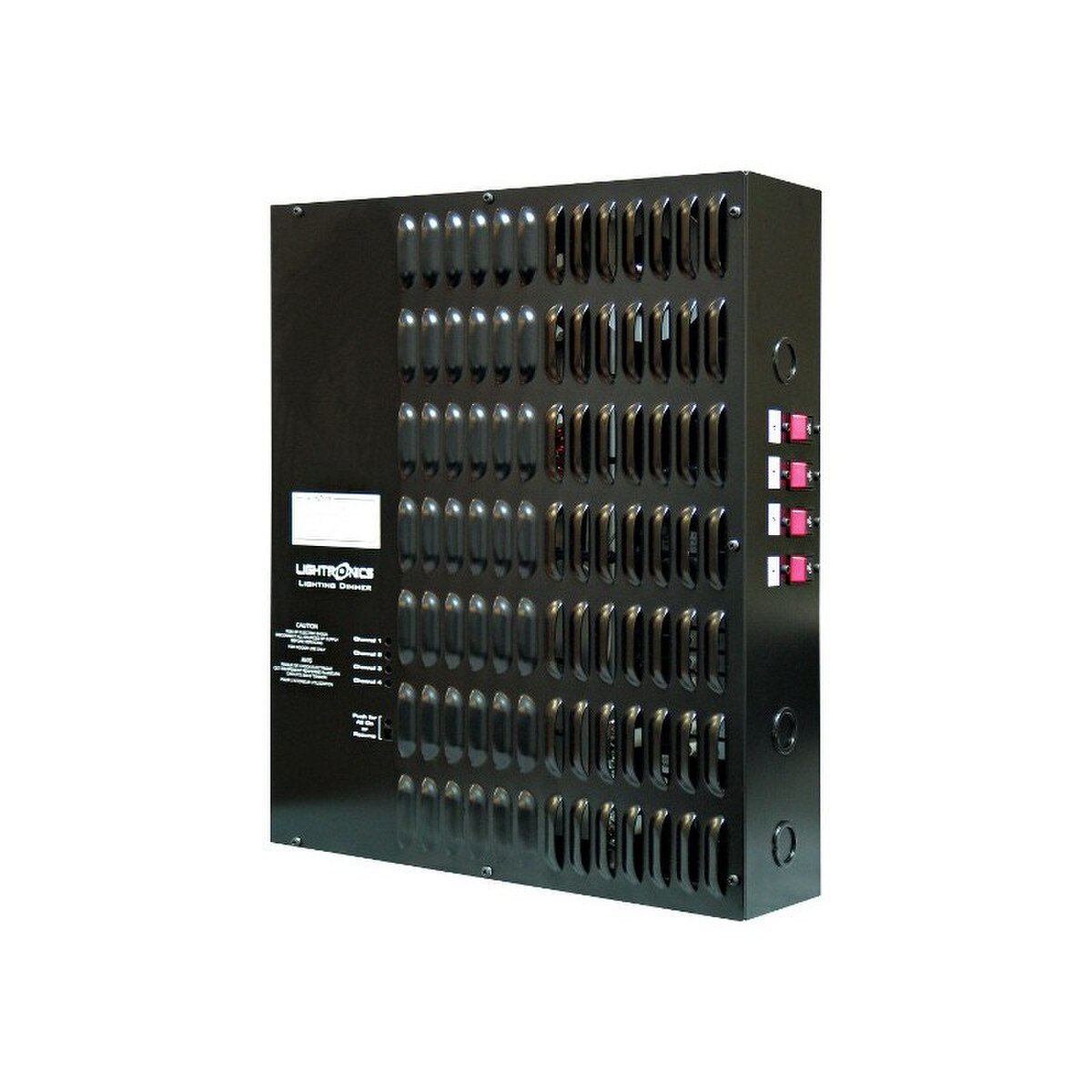

The AE4020 is a four channel add-on product for the AR1202 Unity Architectural dimmer. It provides control for incandescent lighting fixtures and 2 wire dimmable fluorescent lighting ballasts. The AE4020 provides four 2400W channels of dimmed 120VAC. It is controlled by a interface with the AR1202 control circuitry. The AR1202 uses its four auxiliary channels (13 – 16) to control the AE4020.

Specifications:

• 4 Dimmable Circuits
• Operation Integrated with AR1202
• Zero Crossing Solid State Switching
• AR1202 / AR602 Interface Cable Provided
• Unit can be supplied as a 2 Channel Expander
