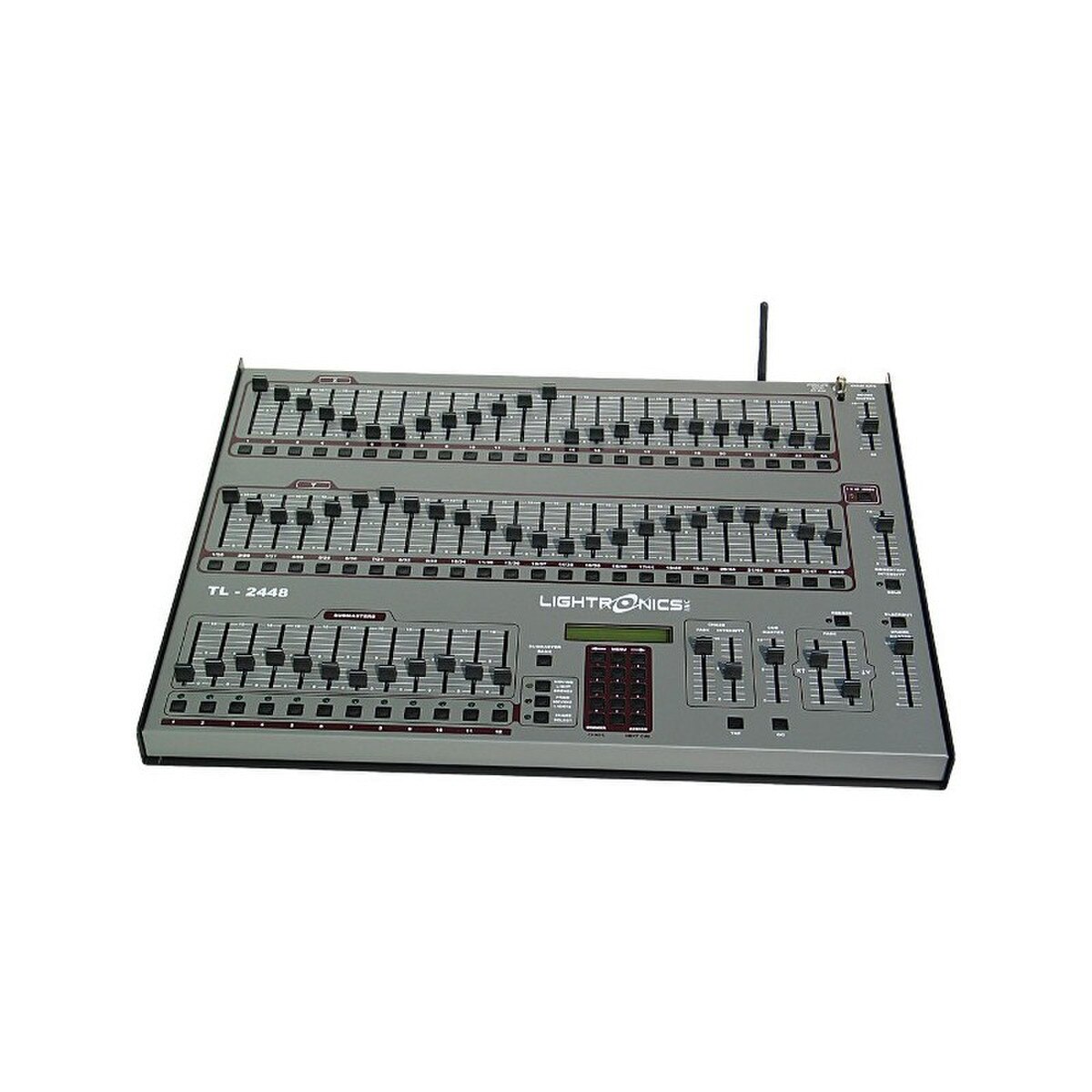

Lightronics Lighting Control Console - 48 Ch 8 Moving Light Controller

The TL2448 is a multi-application lighting control console. It is suitable for church, stage, theater, disco, night club, live performances and other event and artistic applications.

The unit provides both LMX-128 (multiplex) and DMX- 512 (5-Pin) output protocols simultaneously. This console will store 600 conventional scenes which can be cued with control of fade times. The cue list may hold up to 600 scenes. There are 2 patch pages for reassigning output channels. Thirty six chase sequences may be created and stored by the operator. Each of these may have 40 steps. Dedicated moving lights support is included for up to 8 moving light fixtures with up to 12 channels per fixture. 600 additional scenes are available for moving light control.

Specifications:

• LED Compatible
• Optional Built In Wireless DMX (5-Pin)

• 48 Conventional Channels and 8 Moving Light Sub Master Controller
• 1200 Scenes
• 36 Programmable Chases
• Cue Stack Stores 600 Scenes
• Built In Softpatch
• Full Go Button
• LMX-128 and DMX-512 (5-Pin) Protocols


Specification_Sheet_88001_File_1.pdf
User_Manual_88001_File_2.pdf
