Lightronics Portable Dimmer 4 Ch / 600W per Channel / UL-508 Compliant - 12A Mains Circuit Breaker

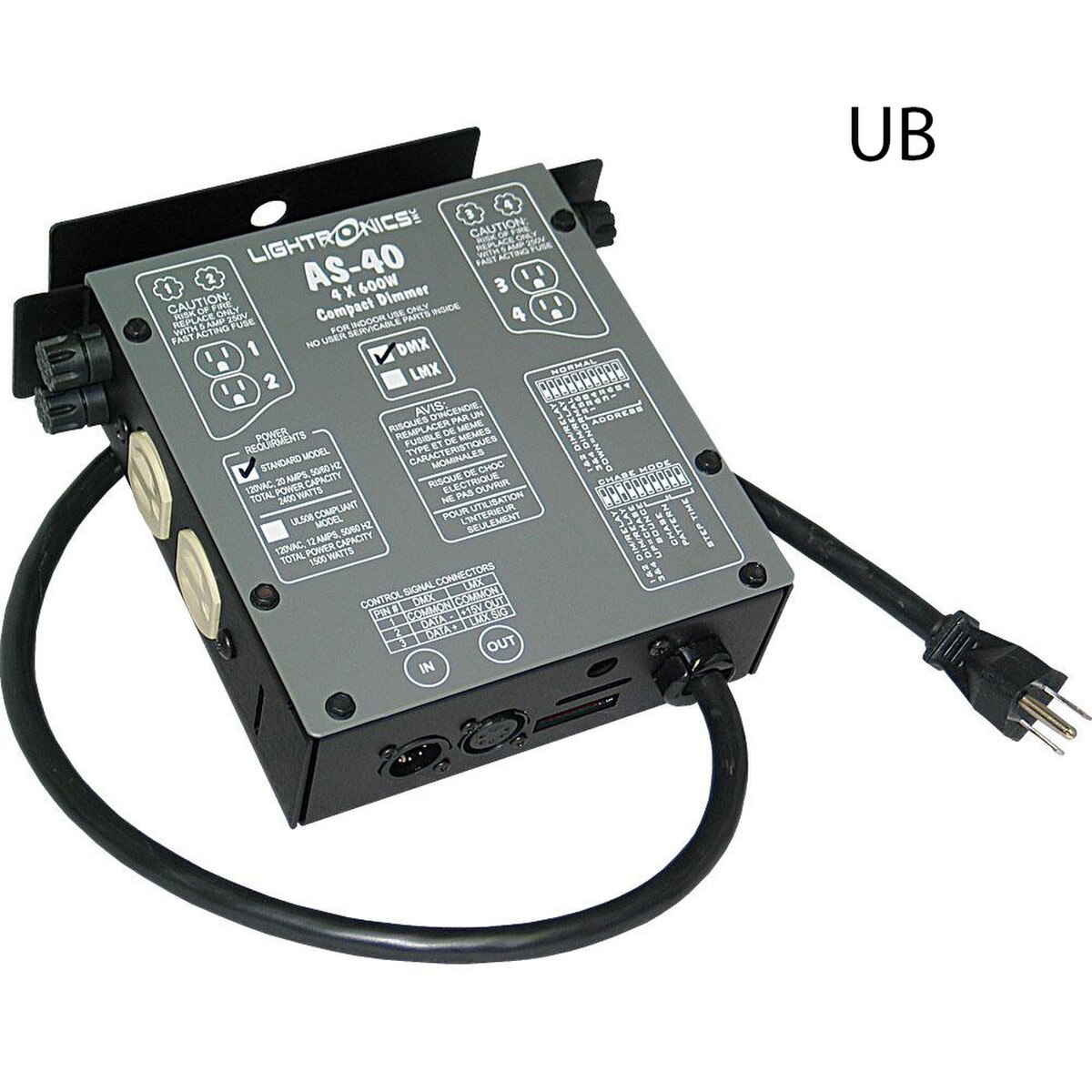

The AS40D - UB is a UL-508 Compliant compact portable 4 channel light dimmer. It has a maximum capacity of 600 Watts per channel and a maximum TOTAL load capacity of 2400 Watts. It is supplied with an input power cord which may be connected to a 120 VAC, 20 Amp power circuit. The unit operates using the USITT DMX-512 protocol. The AS40D may be operated in a relay (non-dim) mode. The unit will also function as a stand alone chaser and has eight primary preset chase patterns which may be used.


Specifications:

• 4 Channels
• 600W per Channel
• 8 Built in Chases
• Relay Mode Switchable
• DMX-512 Protocol
• 5 Amp Fuses
• Edison Output
• 120V

Options:

• UB - UL-508 Compliant - 12 Amp mains circuit breaker, 1440 Watts total power
• UT - UL-508 Compliant - Twistlock power input connector
• 230V - 230 Volt operation
