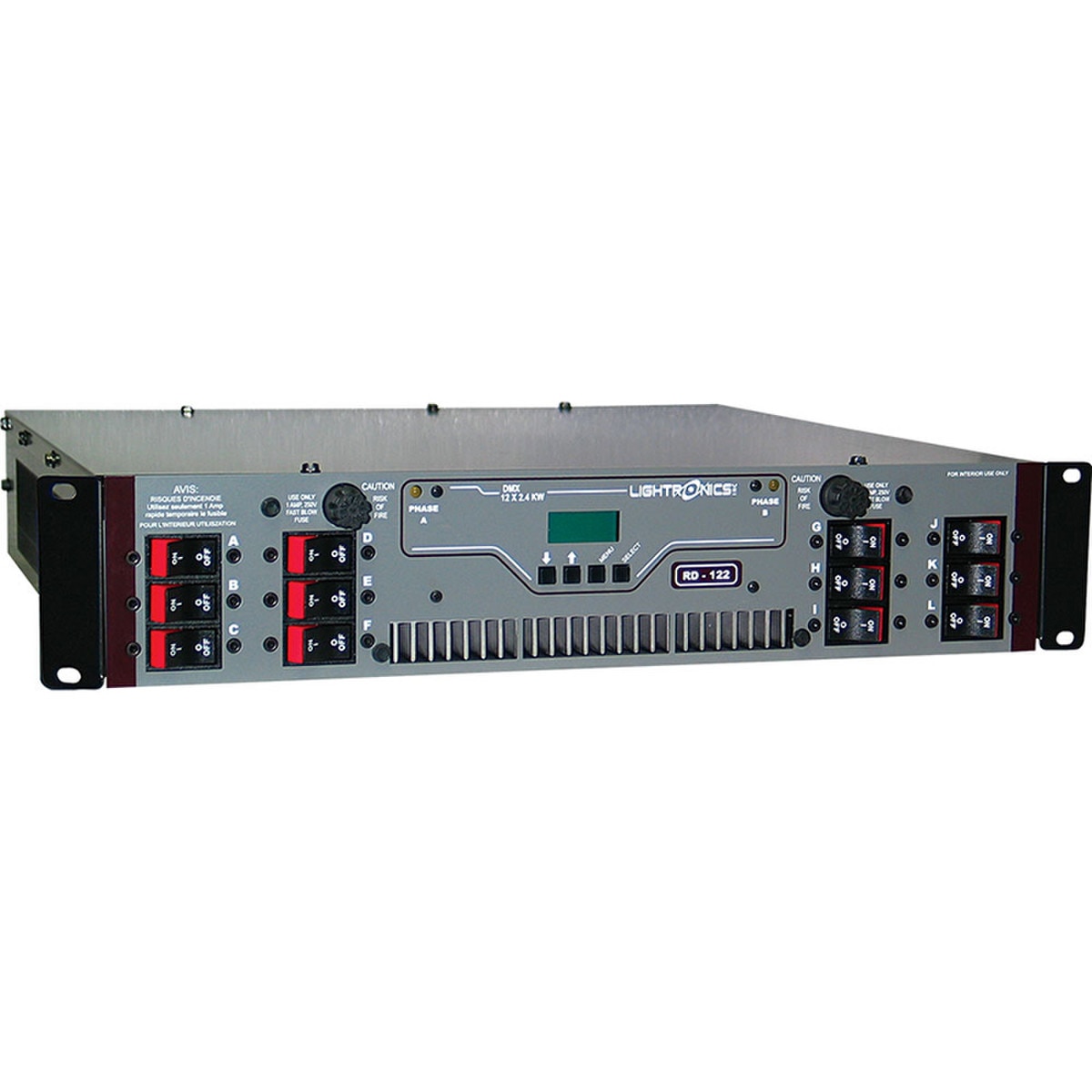

Lightronics RD122 Rack Mount Dimmer - 12 Channel 2400W

The RD122 is a 28,800 Watt, 12 channel, rack mount lighting dimmer. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications. Each of the channels has a capacity of 2400 Watts. It is controlled via USITT DMX-512 low voltage signals. The unit is fan cooled. Channels may be independently assigned from the unit. The unit is over temperature and over voltage protected and has a magnetic circuit breaker for each channel.

There are several options for channel output connection panels. Options include: Edison plug, External Terminal Strip, Patch Panel, and Socapex Connector panel. The RD122 has several stand alone functions which enable it to operate without a control console. These functions include a storable scene which may be activated by an external switch closure, a programmable chaser, and 7 factory set chase patterns.

Specifications:

• 12 Channels
• 2400W per Channel
• USITT DMX-512
• Fast Acting Magnetic Circuit Breakers
• Dim/Non-Dim Mode by Channel
• 8 Chases
• Softpatch
• 120/240V 120 Amp
