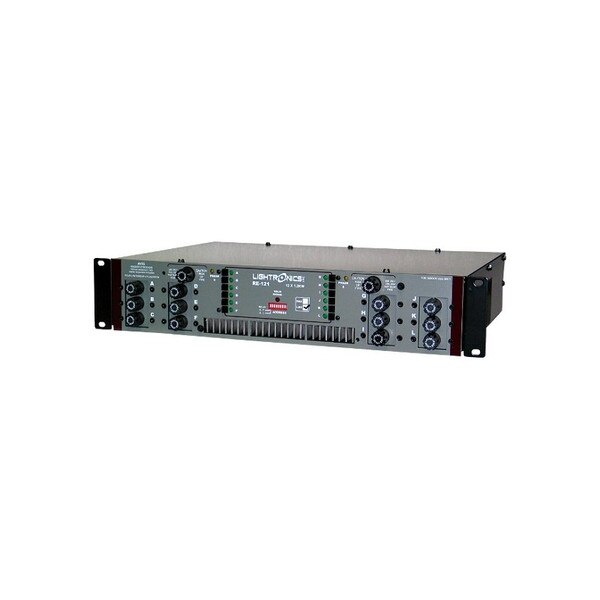

Lightronics Rack Mount Dimmer - 12 Channel 1200W LMX-128

The RE121L is a 12 channel rack mount dimmer with a capacity of 1,200W per channel giving a total of 14,400W. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.

The RE121L is controlled by a lighting control console. The unit uses the LMX-128 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either full on or full off depending on fader position.

Specifications:

• 12 channels
• 1200W per channel
• 10A Fast-acting fuses
• Dim/Relay mode per 6 channel groups
• 120/240V 60A
• LMX-128 protocol

• UL-508 compliant
• Optional circuit breakers


Options:

• Edison Duplex Outlet panel
• Terminal / Barrier Connector Strip with Knockout Cover
