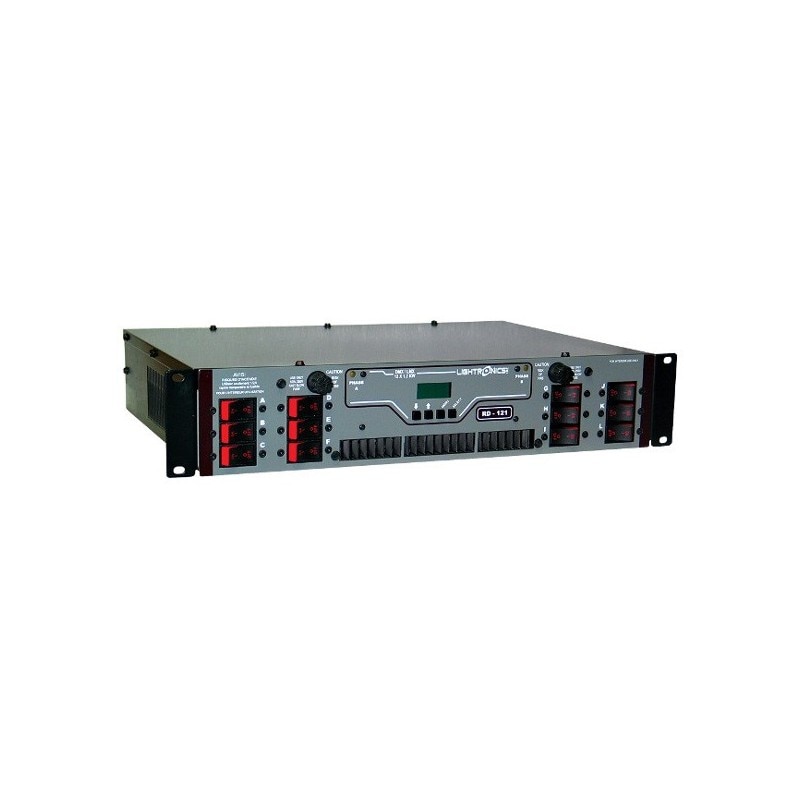

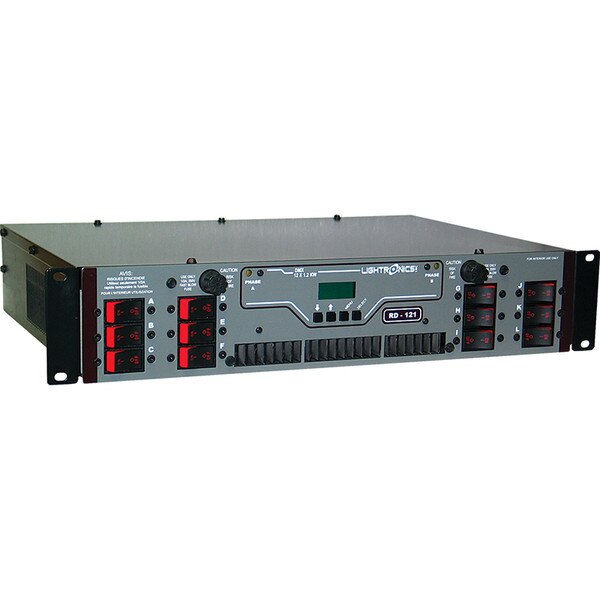

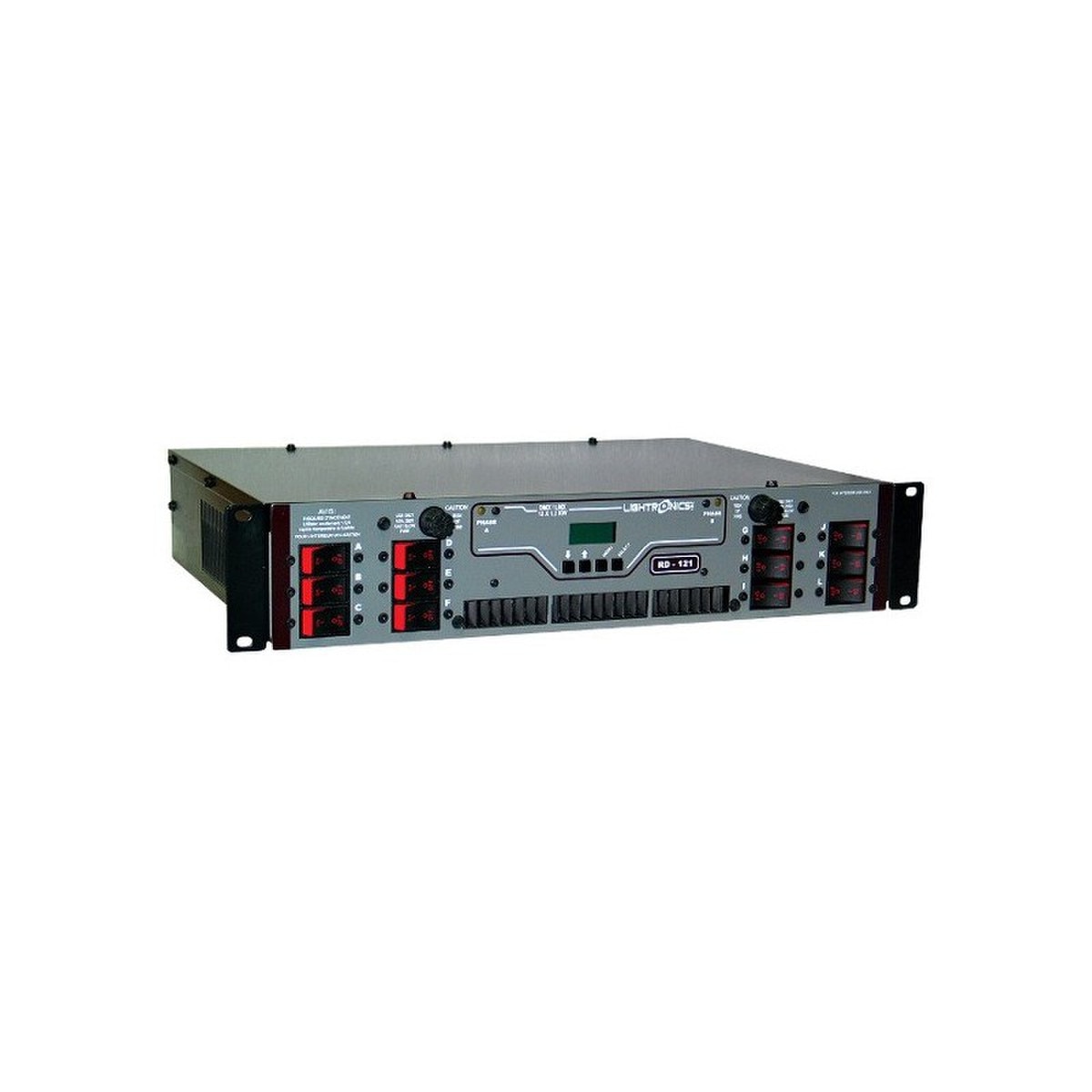

Lightronics Rack Mount Dimmer - 12 Channel - 1200W - USITT DMX-512

The RD121 is a 14,400 Watt, 12 channel, rack mount lighting dimmer. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications. Each of the channels has a capacity of 1200 Watts. It is controlled via USITT DMX-512 low voltage signals. The unit is fan cooled. Channels may be independently assigned from the unit. The unit is over temperature and over voltage protected and has a magnetic circuit breaker for each channel. The RD121 also has several “stand alone functions” which enable it to operate without a control console. These functions include a storable scene which may be activated by an external switch closure, a programmable chaser, and 7 factory set chase patterns.

Specifications

• 12 Channels
• 1200W per Channel
• USITT DMX-512
• Fast Acting Magnetic Circuit Breakers
• Dim/Non-Dim Mode by Channel
• 8 Chases
• Softpatch
• 120/240V 60 Amp
• UL-508 Compliant

Options:

• 230V - 230 Volt Operation
• ST - Stagepin Outlet Panel *Non UL-508 Compliant
• SO - Socapex Outlet Panel *Non UL-508 Compliant
• PL - Powerlock Outlet Panel *Non UL-508 Compliant
• DP - Edison Duplex Outlet Panel
• XT - Terminal / Barrier Connector Strip with Knockout Cover
