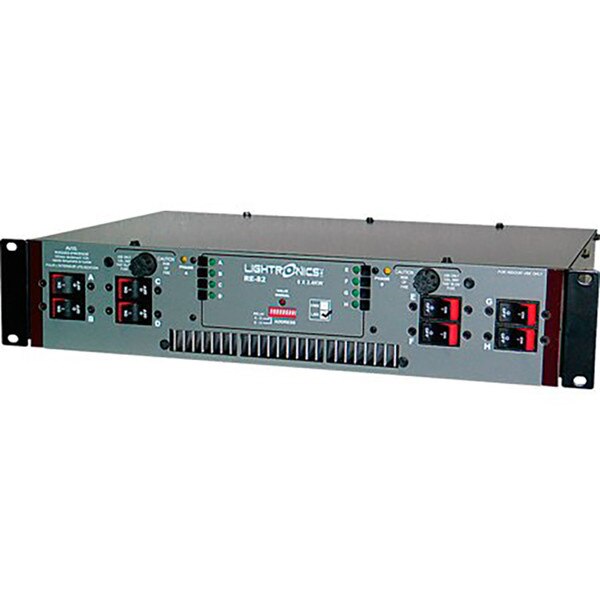

Lightronics Rack Mount Dimmer - 8 Channel, 2400W, LMX-128 with Powerlock Outlet Panel

The RE82L is an 8 channel rack mount dimmer with a maximum capacity of 2,400 watts per channel giving a total of 19,200 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.

The RE82L is controlled by a lighting console. The unit uses the LMX-128 control protocol. Channels A - D and/or channels E - H may be switched to operate in"relay" mode. In relay mode channels are either full on or full off (non-dim) depending on console fader position. The unit is overcurrent and overtemperature protected. A fan is used to ensure proper cooling. Dimming channels may be reassigned in multiples of 4 channels via switches in the front panel.


Specifications:

• 8 Channels
• 2400W per Channel
• Fast Acting Magnetic Circuit Breakers
• Dim/Non-Dim Mode by Channel
• 120/240V 80 Amp
• LMX-128 Protocol
• UL-508 Compliant

Options:

• 230V - 230 Volt Operation
• ST - Stagepin Outlet Panel
• SO - Socapex Outlet Panel *Non UL-508 Compliant
• PL - Powerlock Outlet Panel *Non UL-508 Compliant
• DP - Edison Duplex Outlet Panel
• XT - Terminal / Barrier Connector Strip with Knockout Cover
