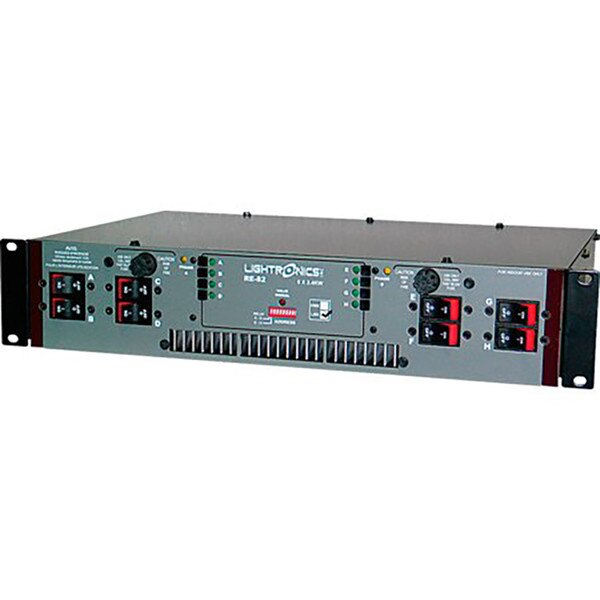

Lightronics Rack Mount Dimmer - 8 Channel, 2400W, LMX-128 with Socapex Outlet Panel
Details
This dimmer is NOT compatible with DMX systems.
The RE82L is an 8 channel rack mount dimmer with a maximum capacity of 2,400W per channel giving a total of 19,200W. It is suitable for churches, stage, theater, school, night clubs, live performances, and other event and artistic applications.
The RE82L is controlled by a lighting console. The unit uses the LMX-128 control protocol. Channels A - D and/or channels E - H may be switched to operate in "relay" mode. In relay mode, channels are either full on or full off (non-dim) depending on the console fader position. The unit is over-current and over-temperature protected, and a fan is used to ensure proper cooling. Dimming channels may be reassigned in multiples of 4 channels via switches in the front panel.
Specifications:
- 8 channels
- 2400W per channel
- Fast-acting magnetic circuit breakers
- Dim/Non-Dim mode by channel
- 120/240V 80A
- LMX-128 protocol
- UL-508 compliant
- Socapex Outlet Panel
