Lightronics XC Series Portable Dimmer - 4 Channel 600W DMX-512 5-Pin

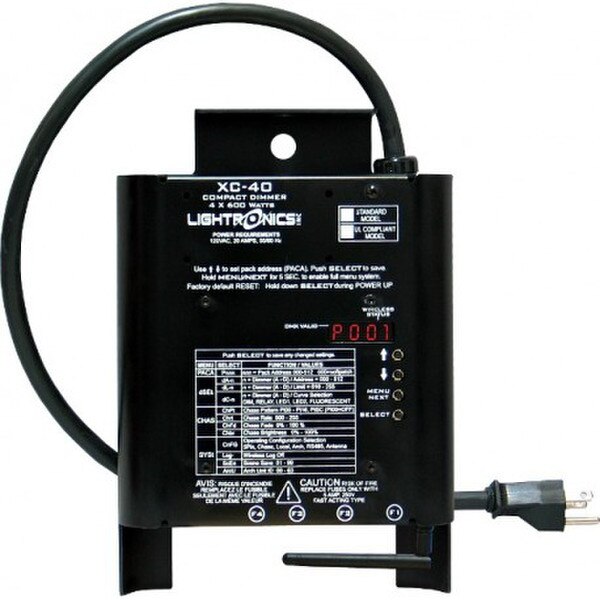

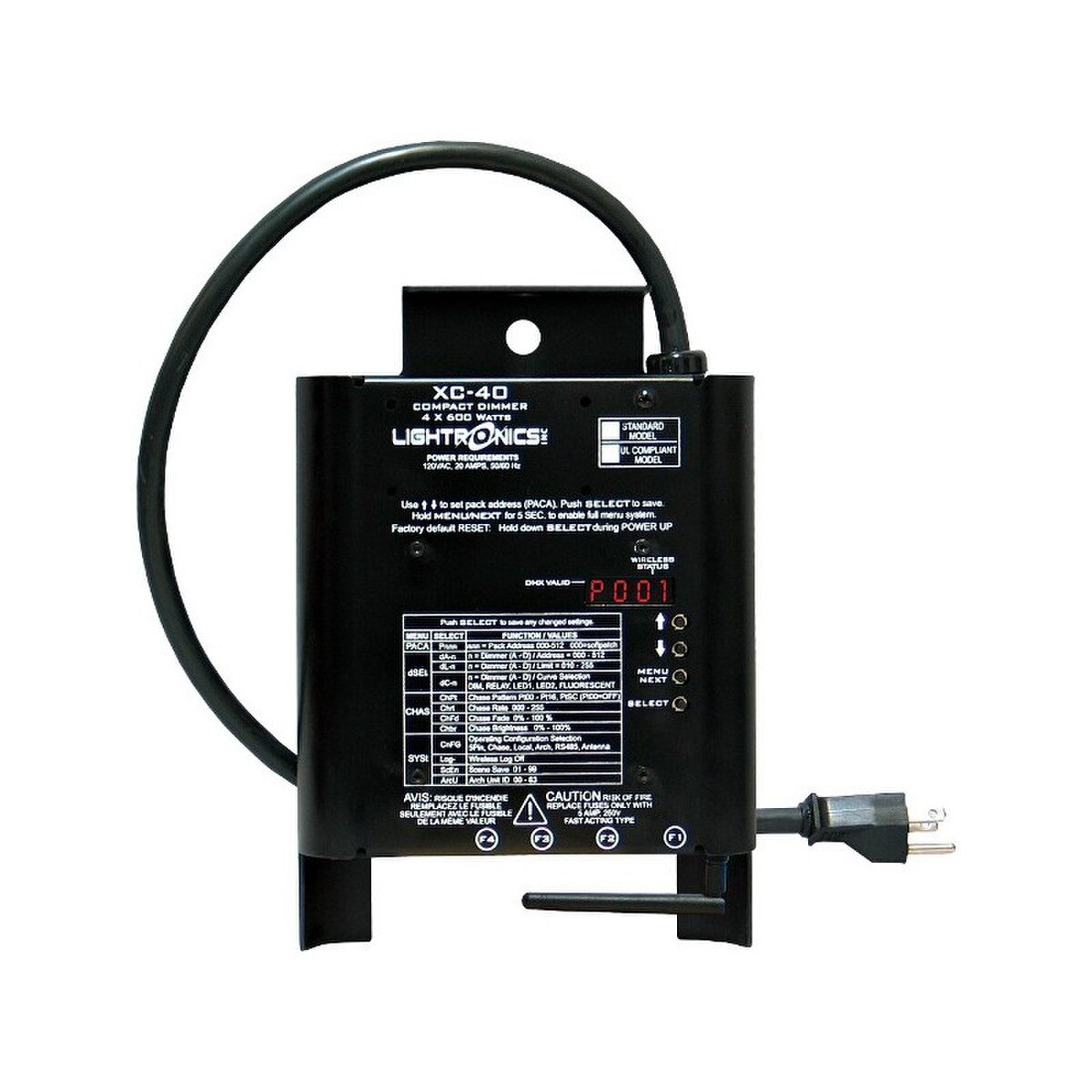

The XC40 is a four-circuit compact dimmer with a load capacity of 600W per circuit. Each circuit is protected by a 5A fuse. It can be controlled in several ways - the most common being DMX-512. Other control modes are also provided for stand-alone operations. These include individual channel control and chaser functions. Individual circuits may be operated as non-dim (relay) circuits. Individual circuits may be set for one of several response curves and may be limited to less than full intensity. In addition to full soft patch capability there is a quick pack address function which enables rapid setup.

Specifications:

• LED digital display
• 4 channels
• 600W per channel
• Softpatch (each dimmer)
• Dimmer limiting
• Dimmer curve selection
• Architectural interface
• AMX/crestron interface
• DMX-512 protocol
• 8 built-in chases
• Relay mode switchable
• Fuses
• Edison outputs
• 120V
