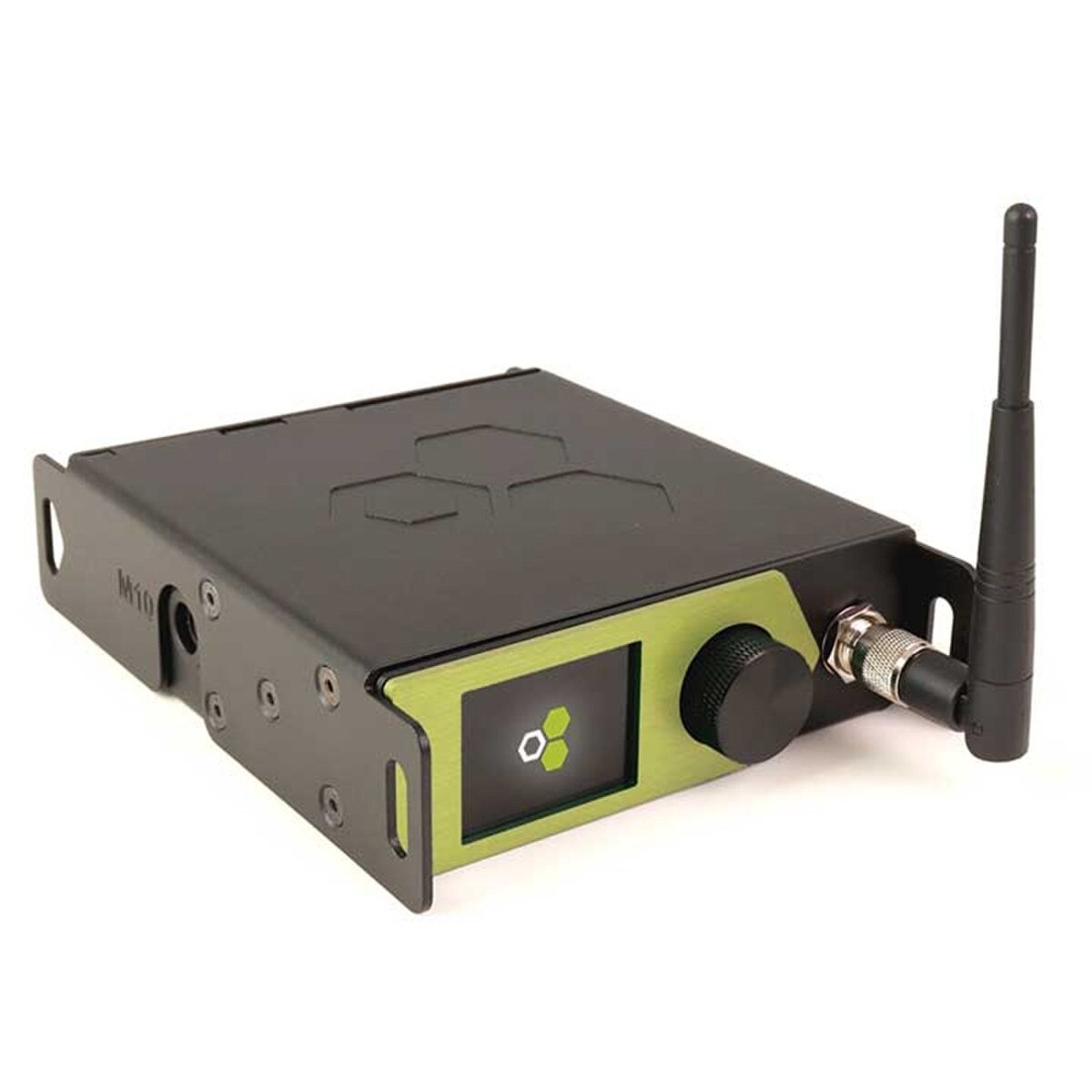

LumenRadio Aurora Single Universe DMX/RDM Transceiver

Aurora is a flexible unit able to transmit or receive one universe of DMX/RDM with several connectivity options. Using the intuitive color screen to change settings on the fly and move between universes, it is powerful enough for single-universe transmissions as well as being a receiver packing the most advanced features.

Aurora is the flexible CRMX transceiver with a multitude of connectivity options, powerful enough for single-universe transmissions as well as being a receiver packing the most advanced features.

Capable of transmitting or receiving one universe of DMX/RDM, it is the flexible unit that can also move between universes. The enhanced radio design allows for record-breaking ranges with a rock-solid experience.

The onboard WiFi can receive sACN and Art-Net. The 5-pin XLR can be used as input or output for DMX/RDM from any source making the Aurora act as a protocol converter.

With the intuitive color screen, it’s easier than ever to configure locally, using the rotary knob to move between settings and universes. For even more control the CRMX Toolbox App is capable of configuration from any smart device.

LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry-standard 5 ms latency, error correction, and 128-bit encryption at full refresh rate for a full universe.

*Linking Key encrypts the CRMX transmission with user-specified keys, making it possible to move between CRMX networks in a completely new, smooth, way.

Note: The CRMX Aurora replaces CRMX NOVA FX RDM (LRINRFX1CRMX).

Features:

• Single Universe CRMX Flex unit
• DMX/RDM, sACN, and Art-Net 1-3
• 5 GHz WiFi
• Configuration via App or Front panel
• Compatible with CRMX and W-DMX G3/G4s

Supported Protocols:

• DMX / RDM
• sACN / Art-Net 1-3
• CRMX
• W-DMX G3 / G4s
• WiFi IEEE802.11b/g/n/ac

RF Characteristics:

• Frequency range: 2402-2480 MHz
• Radio module: TimoTwo
• 5ms latency
• 128-bit encryption
• Forward Error Correction

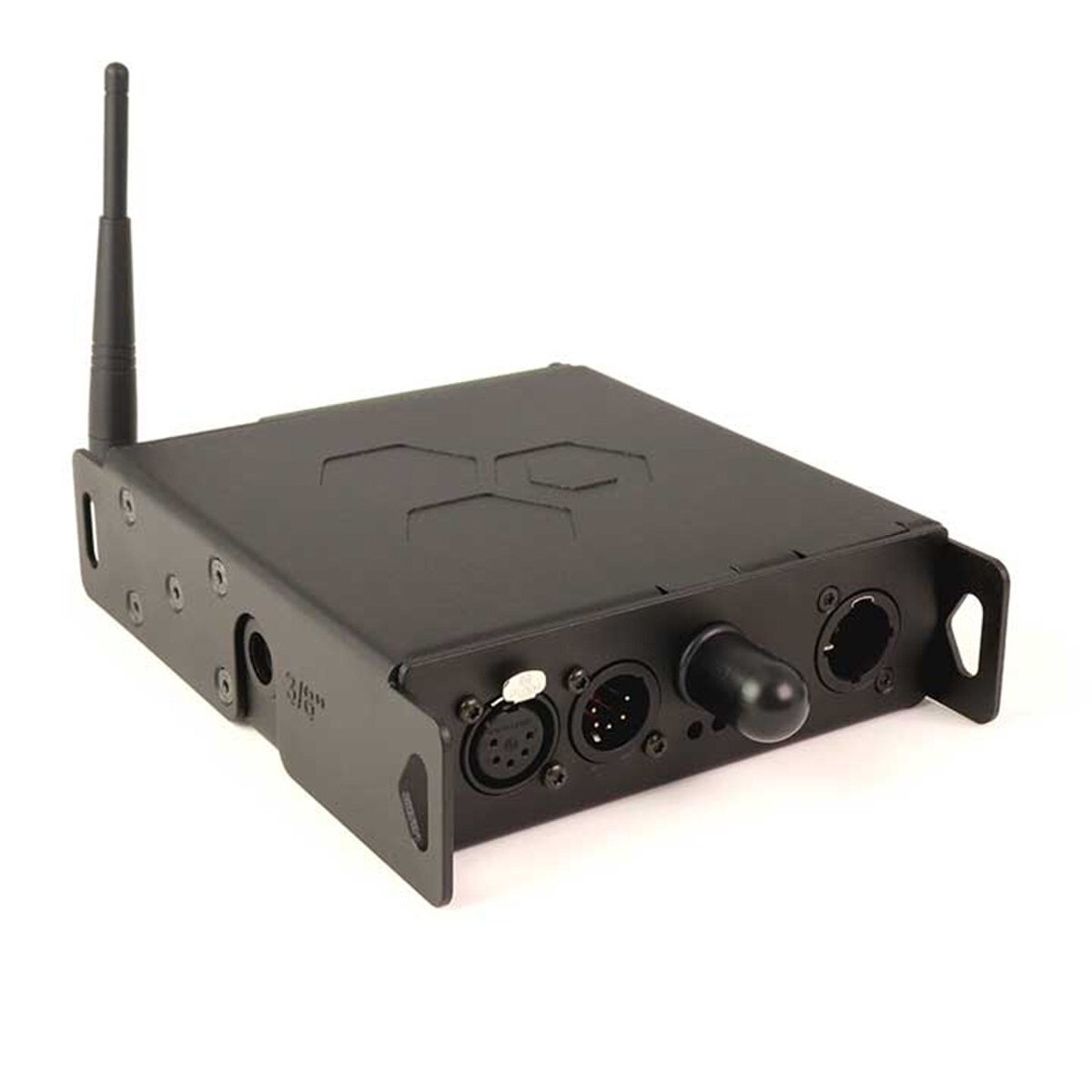

Connectors:

• Antenna: RP-TNC
• DMX: 5-pin XLR female
• DC: 2.5mm/5.5mm Barrel connector
• AC: powerCON Tru1

Power:

• DC 10-20v
• AC 100-240 VAC

Physical:

• IP20 Aluminum enclosure
• Front panel color screen and rotary knob
• M10 and 3/8” Threads
• Rack and wall mount accessories
• V-Lock battery mount accessory
