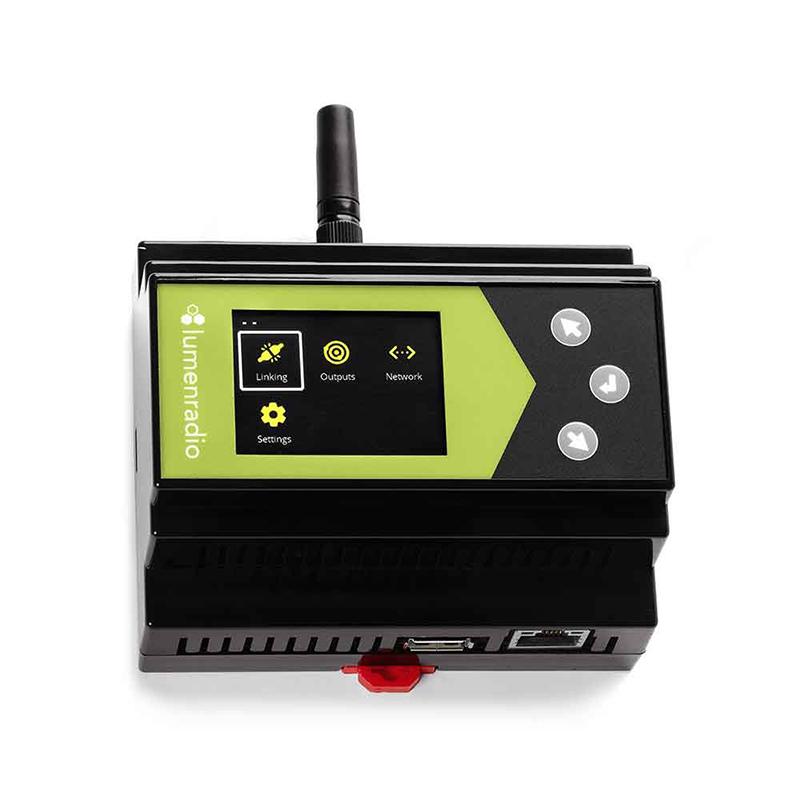

LumenRadio Galileo MAX

Galileo MAX makes architectural lighting projects easier and cheaper than ever before by providing wireless DMX in a modular, installation-friendly form.

• Set up, monitor, and check status remotely
• Suitable for all indoor and outdoor installations
• Reliable wireless technology

Features:

Multiple universe wireless DMX transmitter:

• Using a specially designed backboard, Galileo MAX can be connected to 3 standard Galileo transmitters to expand control to 4 universes and up to 8 if the fixtures have CRMX2 (to be released during 2024).

Cover large-scale projects:

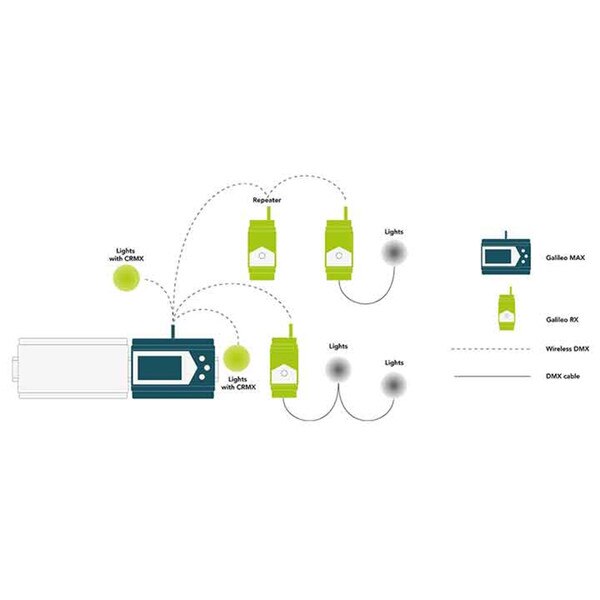

• Build a network using one Galileo MAX linked to an unlimited number of receivers – either fixtures from our OEM partners or LumenRadio products

Reliable wireless technology:

• Based on LumenRadio’s trusted CRMX technology, you get a range and performance which allows your creativity to take center stage.

Remote monitoring:

• Connect to Galileo MAX remotely and use your browser to create addresses, complete set-up and perform system healthchecks.

Flexible mounting:

• By using either DIN rail cabinets or certified enclosures (IP65 or better), Galileo MAX is suitable for all indoor and outdoor installations, making it perfect for all types of architectural lighting projects.

Technical Features:

• Art-Net and streaming ACN support via Ethernet
• DMX512-A and RDM support
• 5ms fixed latency
• 128 bit encryption
• Radio link range covering hundreds of meters
• Quick and easy Bluetooth configuration via CRMX Toolbox app
• Compatible with all CRMX and W-DMX devices

Specifications:

• Power supply: 12-24 VDC +/- 10%
• Max. power consumption: 8.5W
• Self-healing fuse: Yes
• Rated wire size: 0.2 – 1.5mm2, 24-16 AWG
• IP rating: IP X0
• Dimensions (W x H x D): 107 x 93 x 58.7 [mm]
• Weight: 195g
• Antenna connector: RP-SMA
• Operating temp. range: -20 to +55°C
• Storage temp. range: -30 to +80°C
• Humidity: 0–90% non-condensing
• Frequency range: 2402 – 2480MHz (ISM band), 5170 – 5330MHz (ISM band), 5490 – 5590MHz (ISM band)
• Max. RF output power: 100mW (280 mW is US) at 2.4GHz, 50mW at 5GHz
• Supported protocols: Art-Net, Streaming ACN, RDM
• Supported RF protocols: CRMX, CRMX2, W-DMX G3 & G4S
• Ethernet: 10/100 Mbps via RJ45 connector
• PoE: IEEE 802.3af
• USB: Version 2.0 (only for software update)
