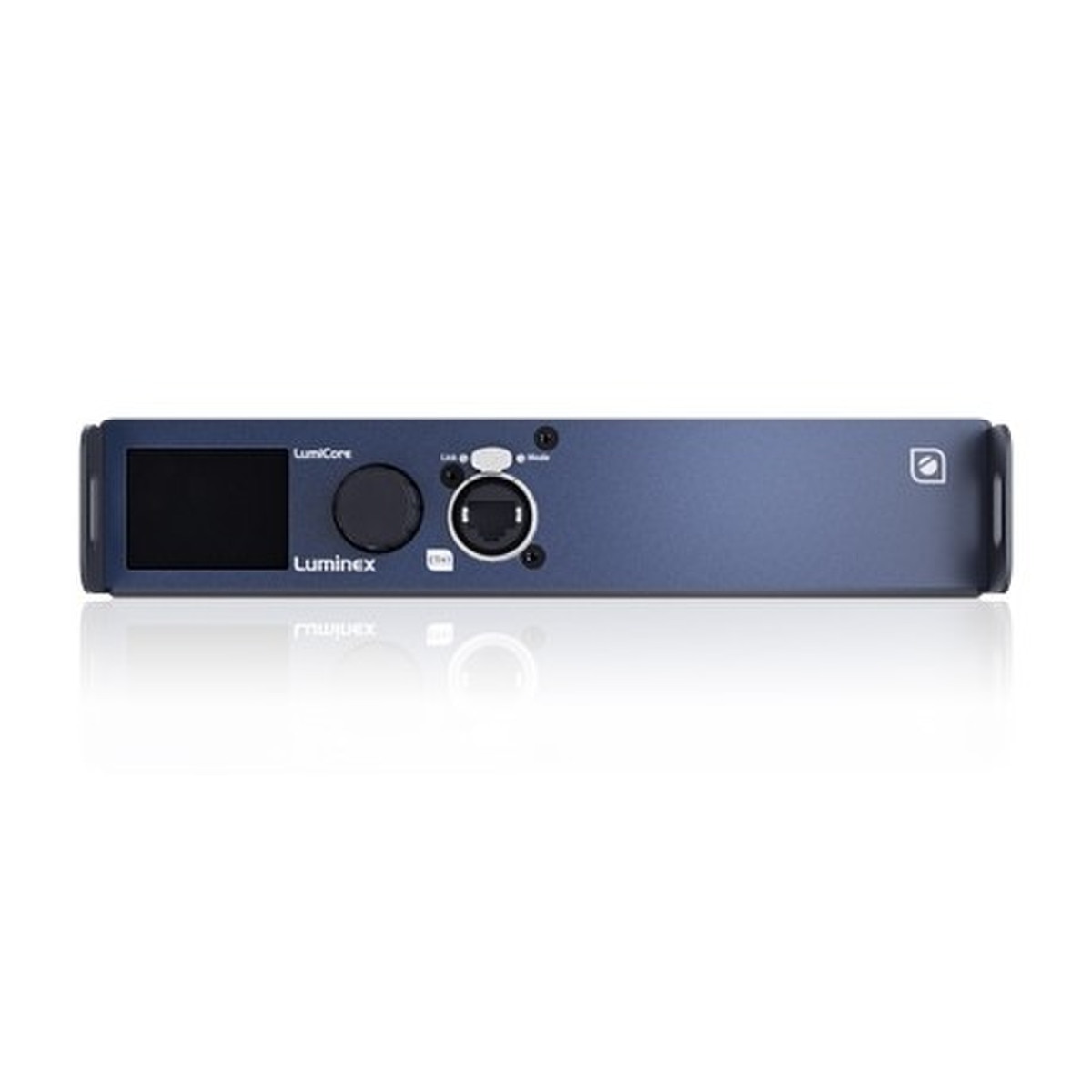

LumiCore (64 Process Engines)

(0)No Reviews yet
SKU: Luminex LU0100074


With 64 built-in engines, LumiCore allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater, or in a TV studio.

As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extremely low latency.

Merge in HTP, LTP, Backup, Switch, Crossfade or Custom Mode

The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade, or custom mode, with different triggers that can be assigned even on a per-channel basis.

In large pixel mapping applications, LumiCore is the ideal bridge to merge different control sources into new network streams.

In TV Studio's LumiCore will allow you to have Control Desks in the IT Environment

You can also use LumiCore as plugin device for a touring BlackTrax or automated follow spot system by inserting merged results as a higher priority on the network with the same sACN
universe numbers.

In TV studio’s LumiCore will allow you to have control desks in the IT environment by bridging the local lighting rig and isolating it from their show critical control part.

For festivals, Lumicore will be your ideal companion to facilitate all of your lighting setups and host the most advanced and flexible data system to your guest acts and upcoming headliners.


  • Mount one or two units in a 1U rack space
  • The unit is robust and thus ideal for touring applications
  • 64 processing engines.
  • The M10 insert and safety ear make it easy to mount it safely on a truss


  • Rack or truss mountable half 19” unit
  • RGB LED for activity indication
  • 2 x EtherCon network port @ 1Gbps with integrated switch
  • Link/Speed LED indication per Ethernet port
  • RGB Mode LED indication per Ethernet port
  • Color display and control jog for fast configuration
  • Contact closure as trigger
  • PoE powered (IEEE 802.3af)
  • Internal universal power supply with Neutrik PowerCon True1
  • Robust steel enclosure with M10 insert and protection ears
