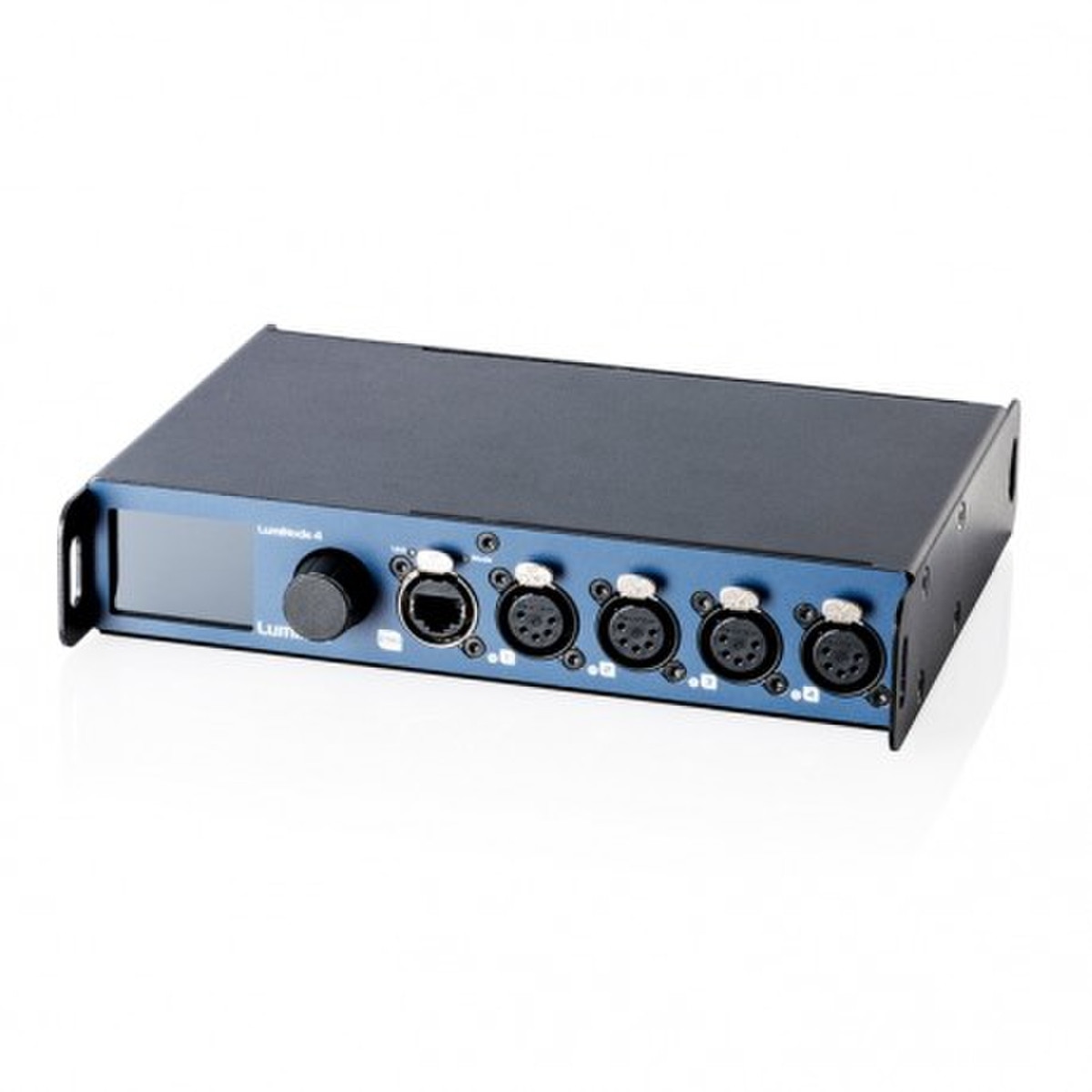

Luminex LumiNode 4 (6 Processing Engines & 4 DMX ports)
Details
LumiNode, built for today, designed for tomorrow.
With LumiNode 4 you have 6 processing engines and 4 DMX Ports.
Features:
- LumiNode 4 is a versatile 4 port node. You can mount one or two units in a 1U rack space
- The unit is robust and thus ideal for touring applications
- 6 processing engines and 4 DMX ports
- The M10 insert and safety ear make it easy to mount it safely on a truss
Specifications:
- Rack or truss mountable half 19” unit
- 4 x DMX/RDM 5-pin connector, fully isolated
- 1 x RGB LED per DMX/RDM port for activity indication
- 2 x EtherCon network port @ 1Gbps with integrated switch
- Link/Speed LED indication per Ethernet port
- RGB Mode LED indication per Ethernet port
- Color display and control jog for fast configuration
- Contact closure as trigger
- PoE powered (IEEE 802.3af)
- Internal universal power supply with Neutrik PowerCon True1
- Robust steel enclosure with M10 insert and protection ears
