M2 Modular Followspot System

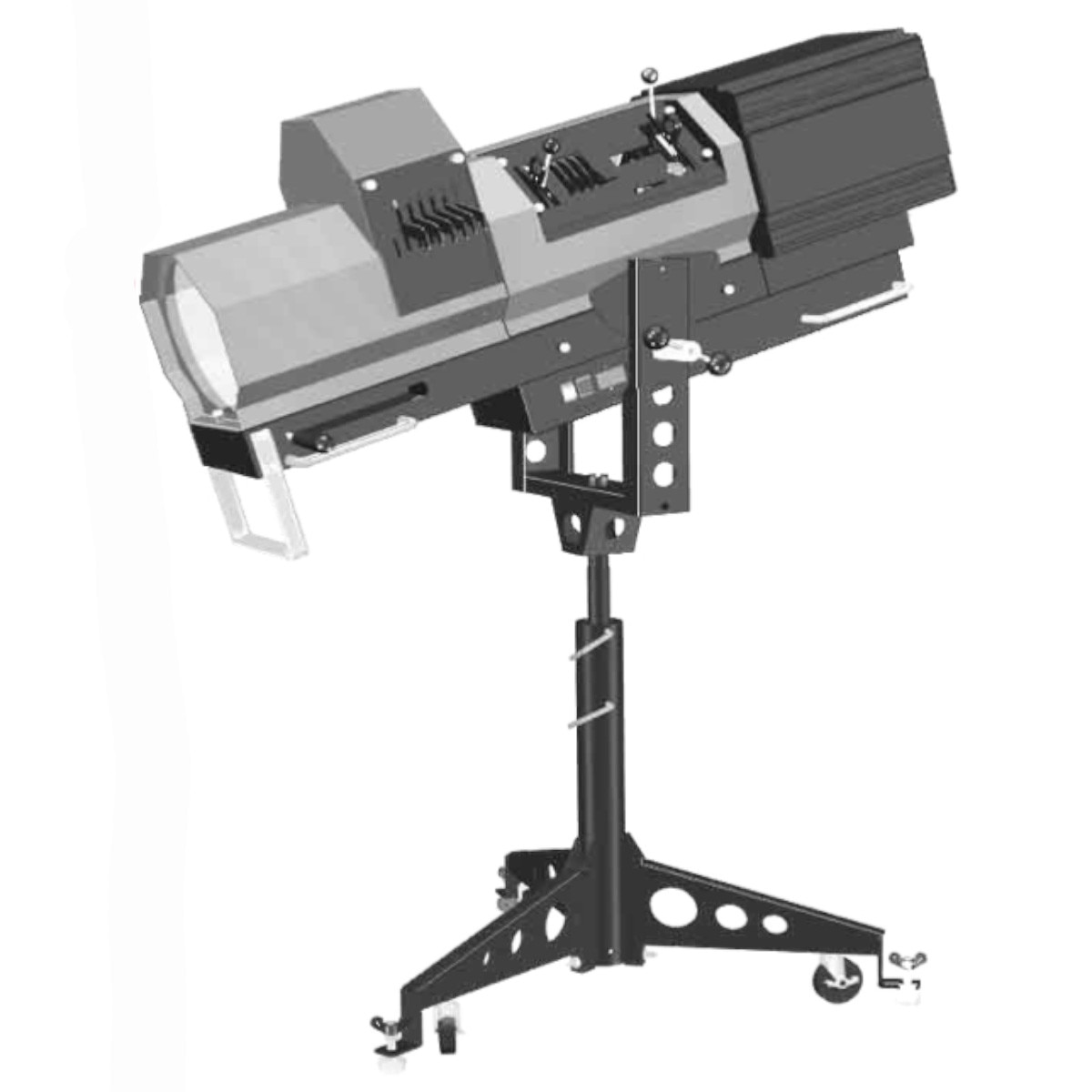

The Lycian Stage Lighting 2040-12 is part of their M2 modular followspot system which offer the ability to configure the followspot to have either a short, medium, or long throw lens, as well as to change between a 1200W or 2500W HMI light source, plus either an electronic or magnetic ballast, with this particular model including the 1200W Lamp House, Medium Throw Lens, and Magnetic Ballast. Additionally, it delivers an extremely flat, crisp beam via Superb Condenser Optics.

The M2 Modular Followspot System - The M2 modular concept provides maximum flexibility to designers, rental houses, and users, allowing them to custom configure the unit for their particular application, or to reconfigure as their needs may change. For ease of use and added flexibility, the followspot can conveniently be made to be operated from either side. The modules can easily be reconfigured in the field - with no tools - to change operation characteristics.

Features:

• Uses Long life 1200 Watt HMI lamp
• Condenser optics provide ultra flat fields
• 6-color boomerang

Versatile gate assembly:

• 4-color dichroic color changer
• Fader
• Gobo holder
• Square shutter
• Heavy duty iris-with heat shield
• Fixed or variable focus
• Variable frost filter
• Variable or fixed focus (at the flip of a lever)
• 6-lever color boomerang
• Left or Right hand operation

Modular Adjustable Throws per Application:

• School and Regional Theatres: 150ft
• Professional Musical Productions & High Concert Rigs: 75ft
• Medium Arenas & Ballrooms: 150ft
• Maximum Throw: 400ft

Specifications:

• Beam Spread: 0.31° to 7.6°

Power:

• Operates on 208-240V, 50 or 60Hz, user adjustable
• Integrated electronic power supply
• Auto switching

All information and specifications subject to change without notice. Contact your Sales Pro for more details
