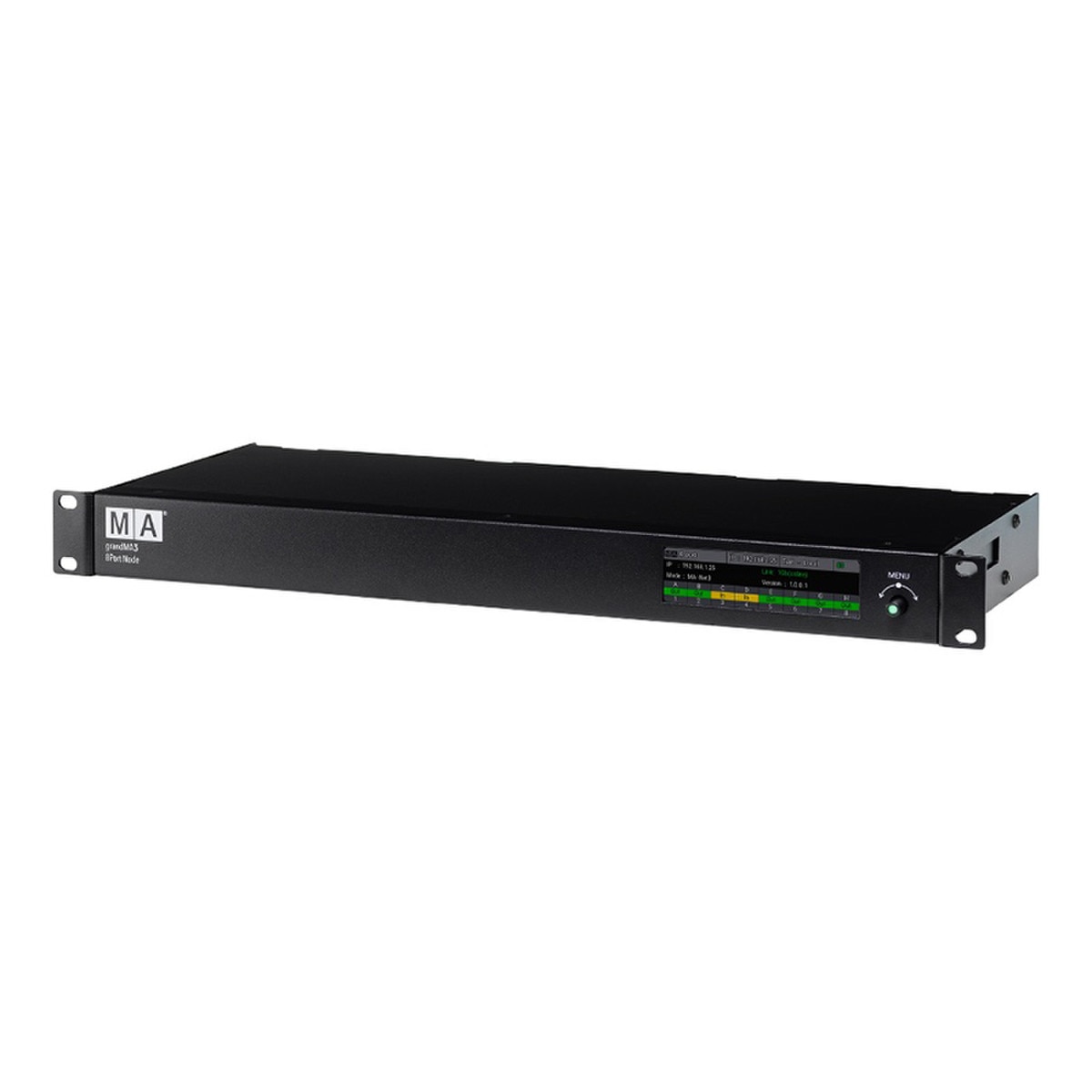

MA grandMA3 8Port Node

The grandMA3 8Port Node is the largest Ethernet to DMX converter from MA Lighting. Specifically designed to synchronously output 8 DMX universes from any grandMA3 session, the 19”, 1RU housing is suitable for touring and fixed installations.

Every grandMA3 xPort Node is designed for the ever-increasing demands in touring and fixed installation applications to build a reliable and stable backbone of synchronized data transportation. All Nodes are remotely configurable from any console/onPC within the session to provide easy access to DMX output or DMX input.

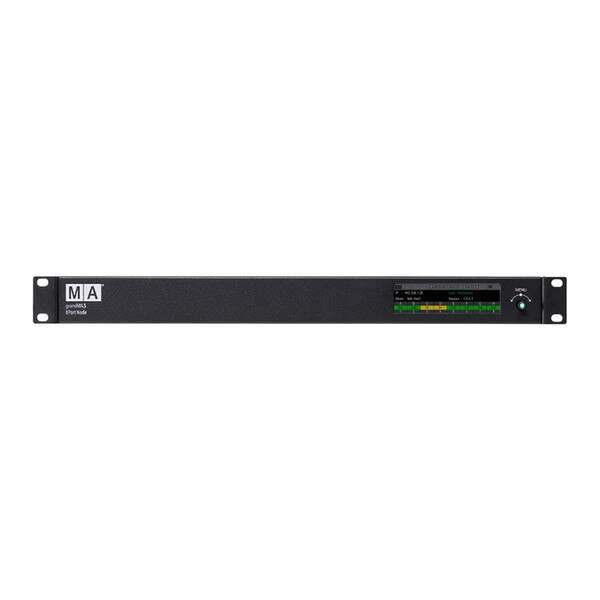

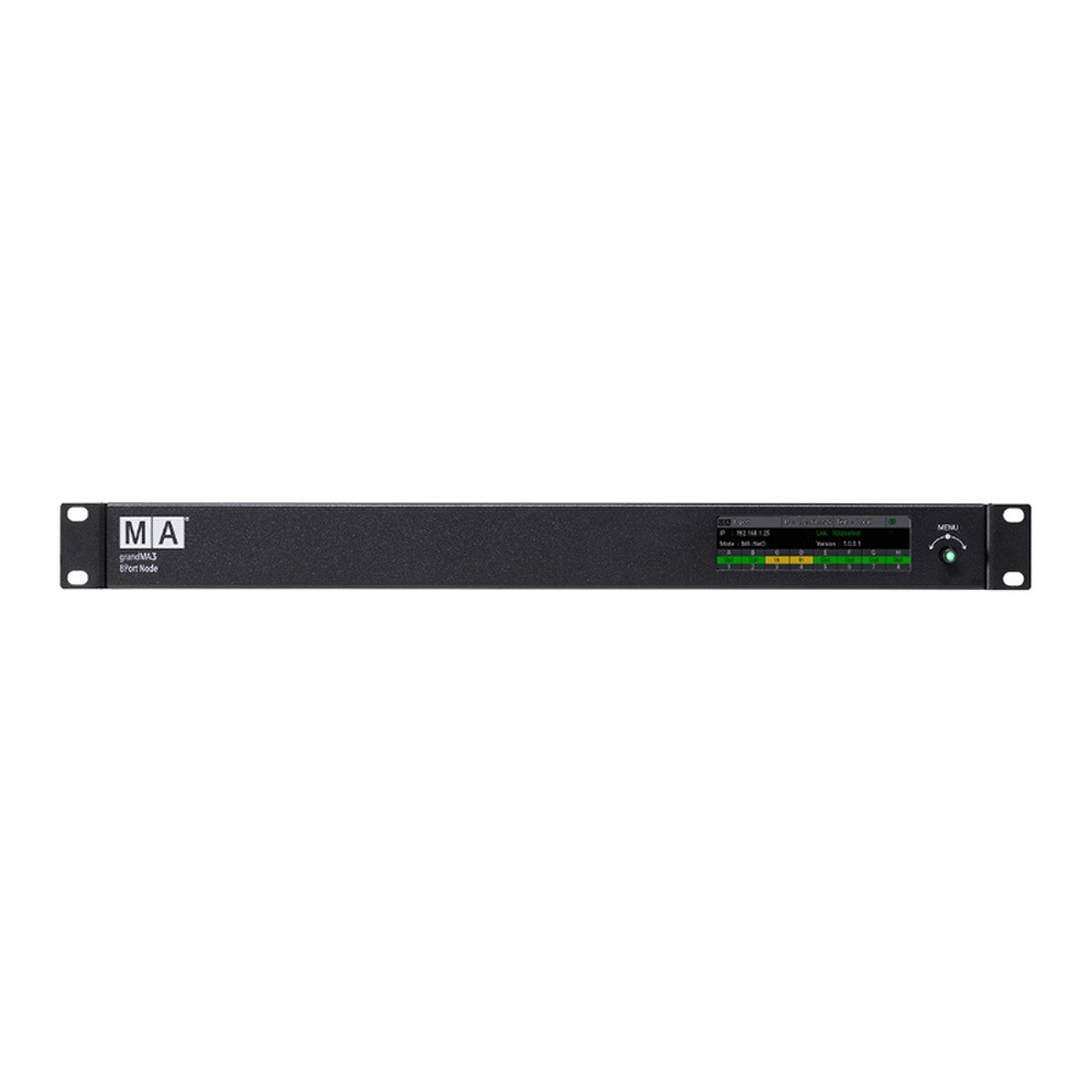

Every grandMA3 xPort Node is capable of handling MA-Net3, MA-Net2, sACN and Art-Net data and is fully RDM compliant. A 3.9" color display on the front face allows for simple configuration and provides a quick overview of the status of each Node.

All grandMA3 xPort Nodes are equipped with a powerful processor and a 1000Mbit/s Ethernet connection to ensure the most reliable and stable Ethernet to DMX and vice versa conversion.

Comes with 1 powerCON TRUE1 connector (NAC3FX-W)

Specifications:

• Operating voltage/ Supply voltage: 100-240V, 50/60Hz
• Power: max. 15VA
• Dimensions: 485 x 190 x 43 mm / 19.1 x 7.5 x 1.7 inches (width x depth x height)
• Net weight: 2.0 kg / 4.4 lbs

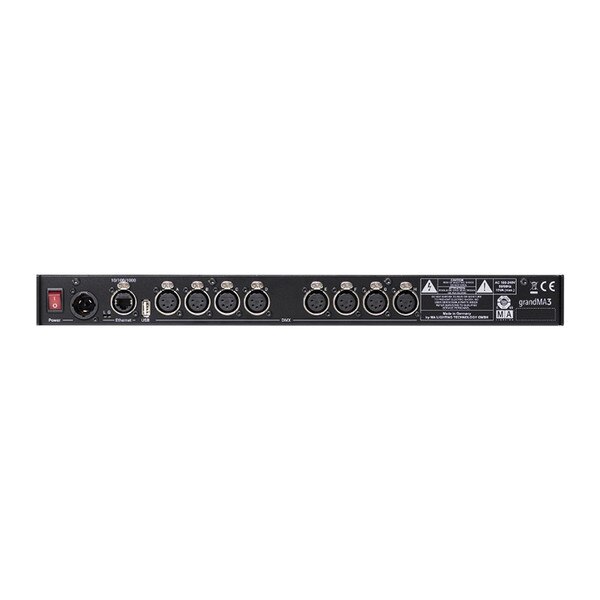

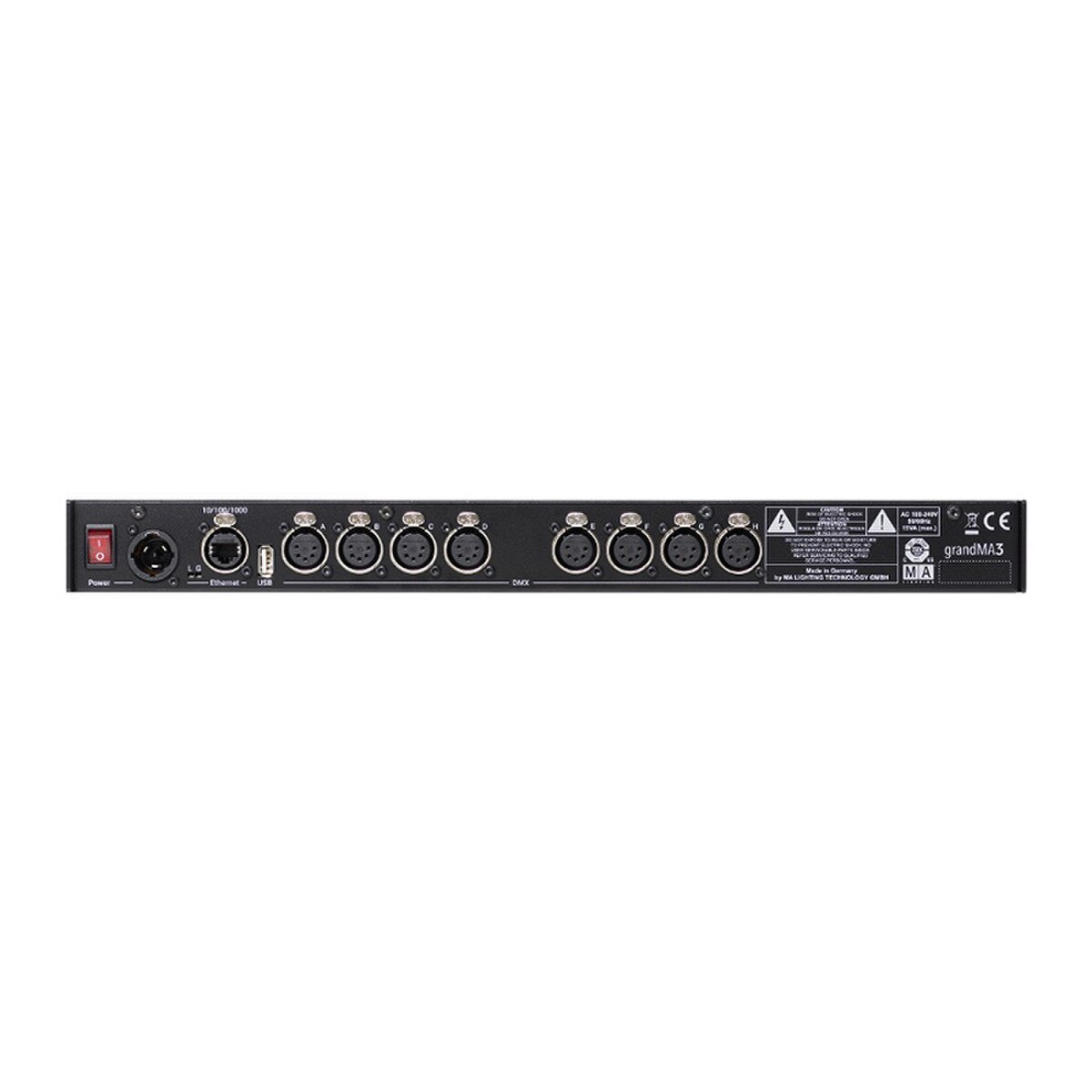

Connectors:

• 1 x powerCON TRUE1
• 1 x etherCON/RJ45
• 8 x DMX512-A Out (5pin XLR female)
• 1 x USB 2.0 (type A)
