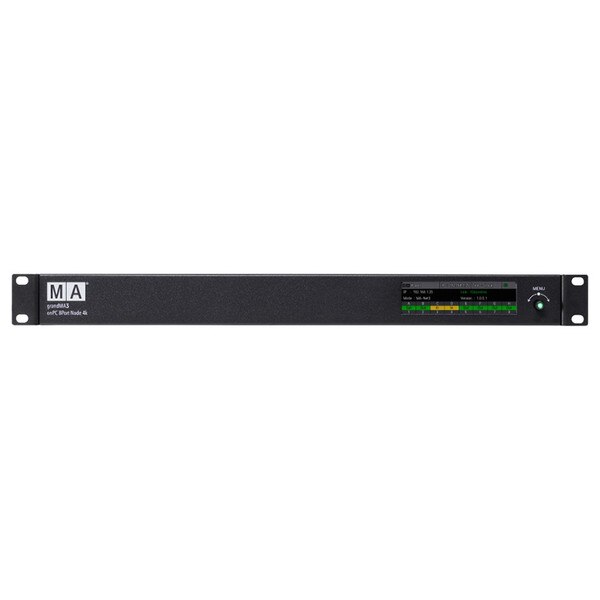

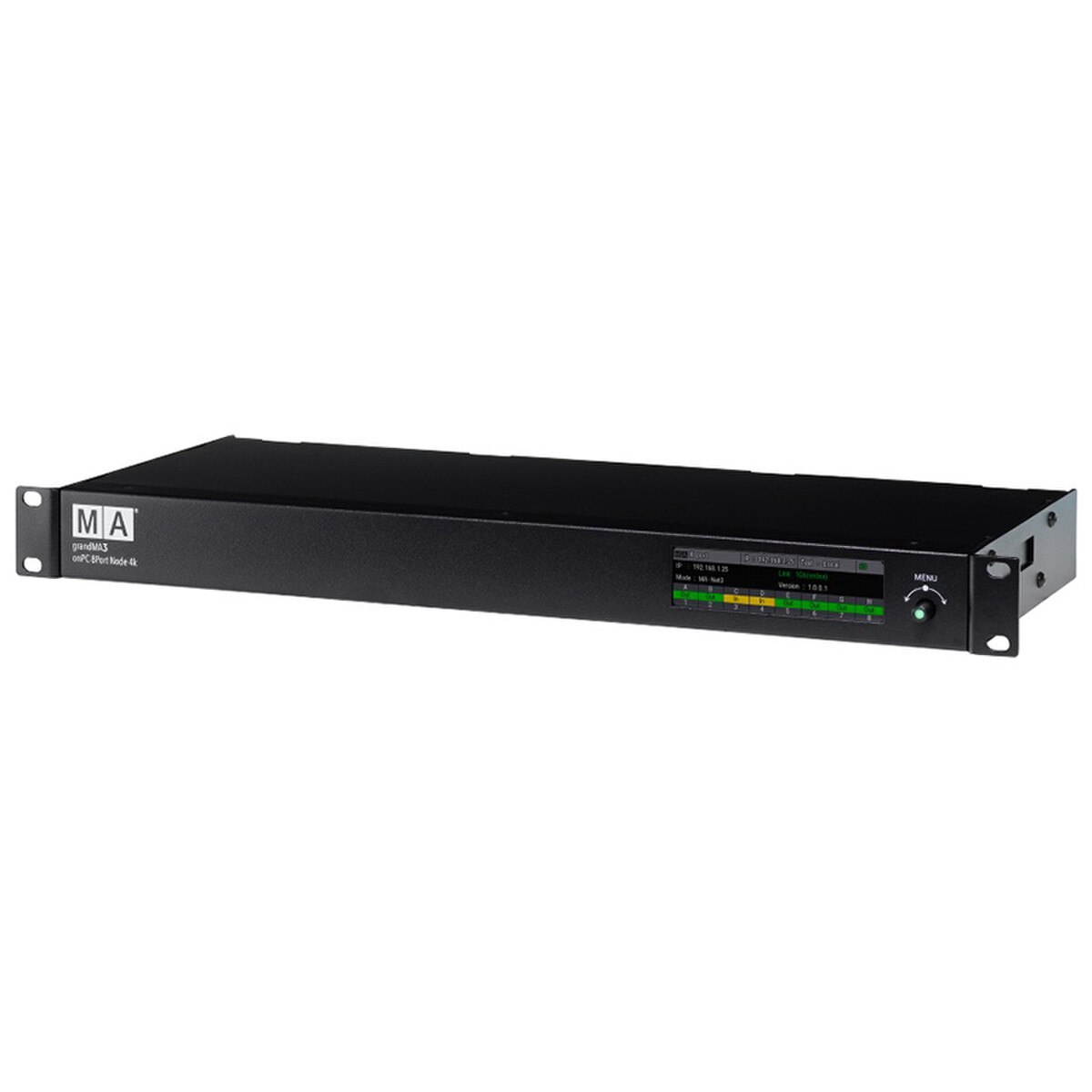

MA grandMA3 onPC 8Port Node 4K

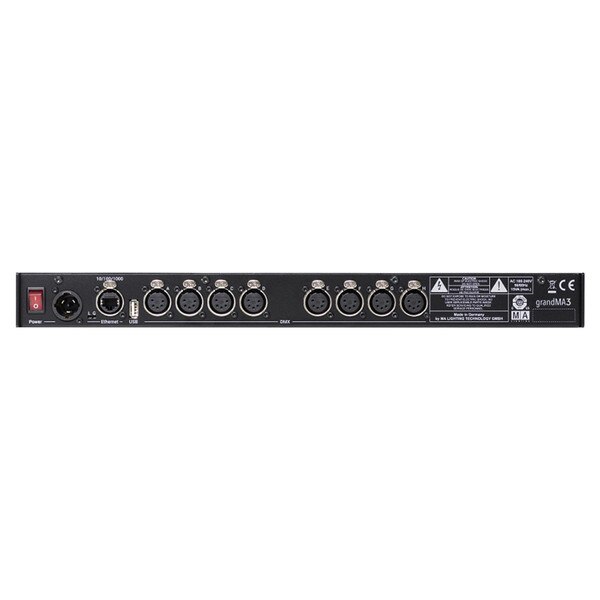

The grandMA3 onPC 8Port Node 4K enables 4,096 parameters with the grandMA3 onPC software and has 8 DMX outputs on the rear side. Packed in a 19”1RU housing, it is suitable for touring and fixed installations and is the most powerful Ethernet to DMX converter for the grandMA3 onPC solutions.


MA Lighting offers the perfect solutions for getting started with. Simply download the grandMA3 onPC software and connect to any of the “onPC” products to unlock parameters.


The amount of DMX outputs varies with each onPC product but all of them unlock parameters for the full grandMA3 software functionality. There is no compromise in feature set and the range of products allow you to make the right choice for your budget or individual needs.

Comes with 1 powerCON TRUE1 connector (NAC3FX-W)

Specifications:

• Parameters: 4,096 (HTP/LTP)
• Parameters Mode2: 2,048 (HTP/LTP)
• Operating voltage/ Supply voltage: 100-240V, 50/60Hz
• Power: max. 15VA
• Dimensions: 485 x 190 x 43 mm / 19.1 x 7.5 x 1.7 inches (width x depth x height)
• Net weight: 2.0 kg / 4.4 lbs

Connectors:

• 1 x powerCON TRUE1
• 1 x etherCON/RJ45
• 8 x DMX512-A Out (5pin XLR female)
• 1 x USB 2.0 (type A)
