ADJ Video Input Interface MCTRL4K

(0)No Reviews yet
$7,459.99
SKU: ADJ MCT999

Details

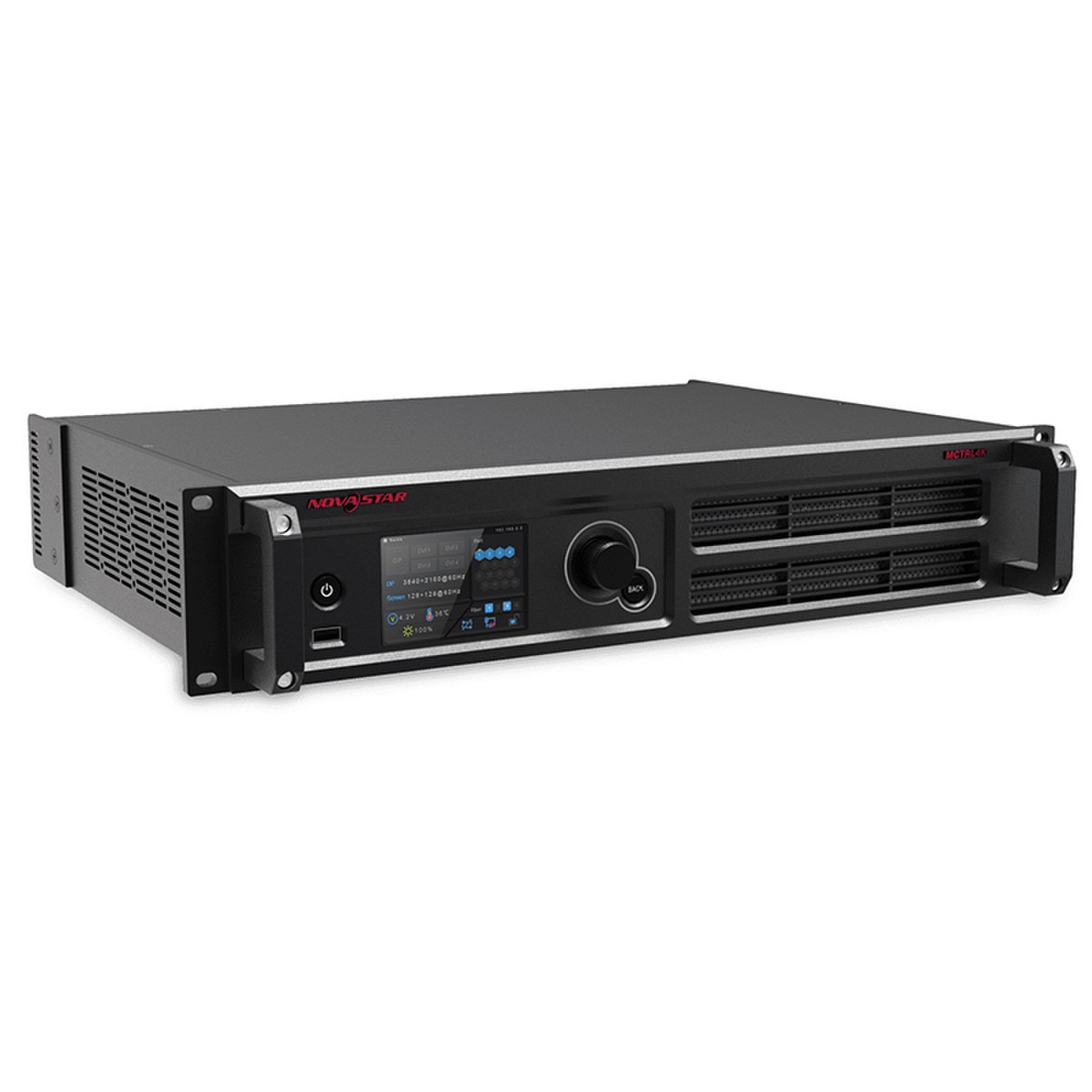

MCTRL4K is an independent master controller developed by NovaStar with an epoch-making significance. The loading capacity of a single unit is up to 3840x2160@60Hz, which is able to meet the on-site requirements of oversized LED displays. MCTRL4K makes it easier to create stunning visual effects for users.

Features:

  • Complete video input interfaces: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2.
  • Supports 16-channel Neutrik Gigabit Ethernet outputs and 4-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840x2160@60Hz.
  • Supports two operating modes during dual-link DVI input: mosaic and multi-card.
  • Innovative design to enable smart configuration which has greatly shortened the time for stage preparation.
  • NovaStar's G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering.
  • Supports NovaStar's latest pixel-by-pixel calibration technology, the process of which is fast and efficient.
  • Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color.
  • Screen configuration can be done at any time without PC.
  • Manual adjustment of screen brightness, which makes it much easier and quicker.
  • Multiple controllers are able to be cascaded for uniform control.

Specifications:
Inputs:

  • (1) DP 1.2 standard
  • Max. supported resolution:3840×2160@60Hz,
  • Max. width and height are 3840(downward compatibility)
  • (1) HDMI 2.0 standard
  • Max. supported resolution:3840×2160@60Hz
  • Max. width and height are 3840 (downward compatibility)
  • (2) Dual-Link DVI
  • VESA standard, max. supported resolution:
  • 3840x1080@60Hz and 3840×2160@30Hz (downward compatibility)

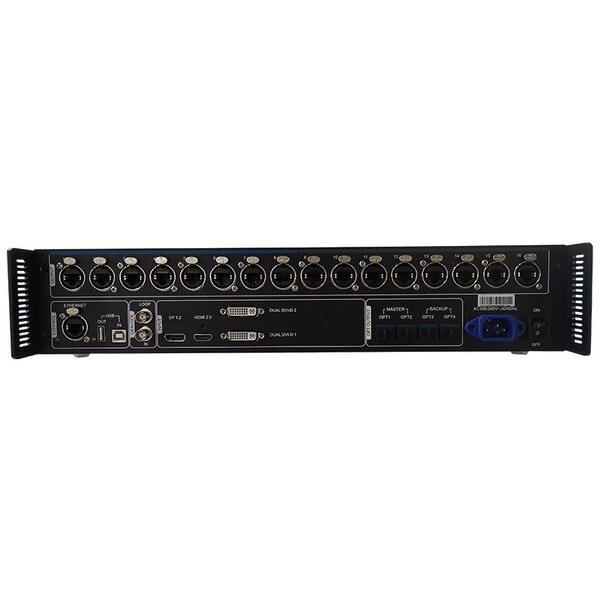

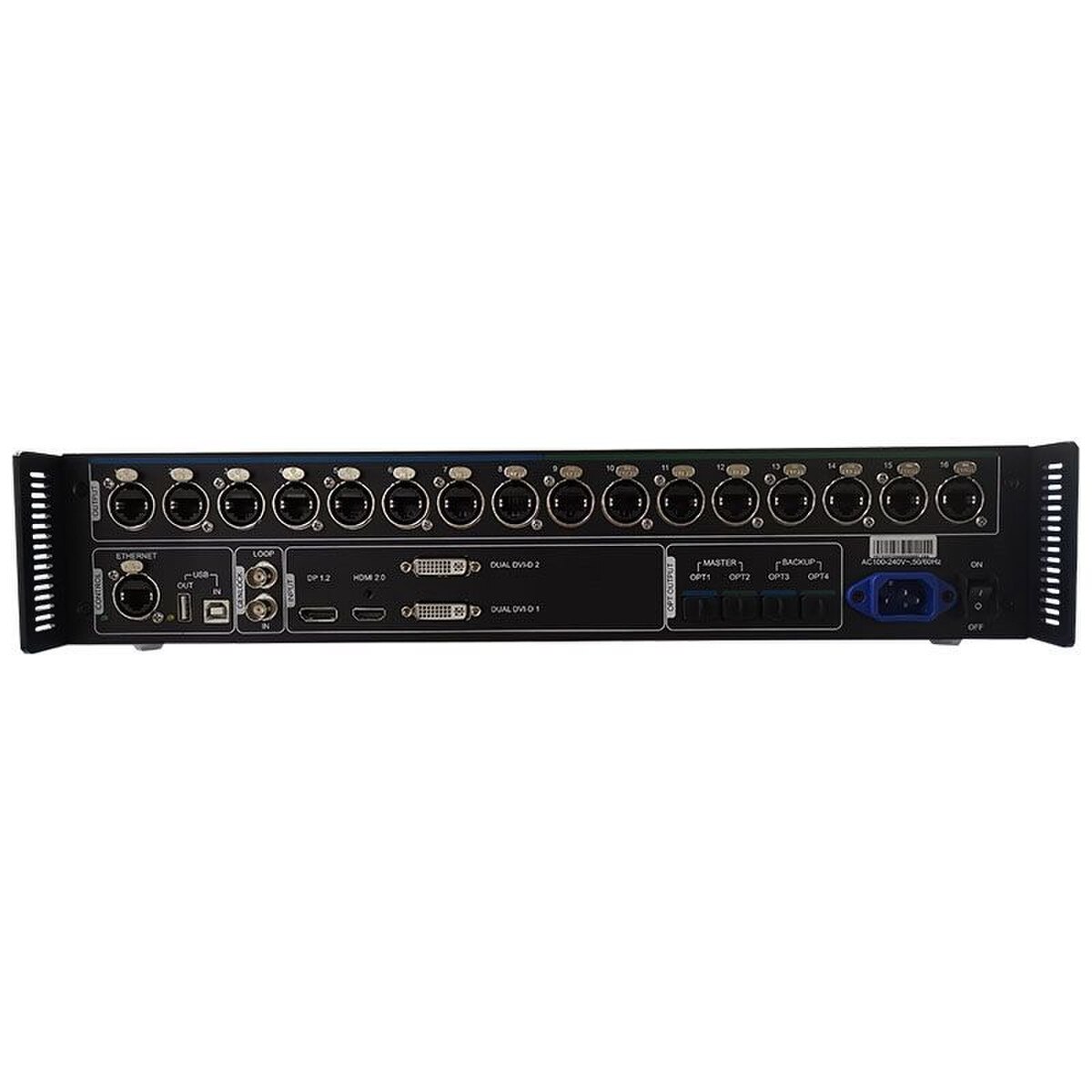

Outputs:

  • (16) RJ45 Neutrik Gigabit Ethernet Ports
  • (4) Optical Fiber Ports, single mode and double fiber, LC port, 1310mm
  • OPT1 is used for transferring the data of port 1-8
  • OPT2 is used for transferring the data of port 9-16
  • OPT3 is the backup channel of OPT1
  • OPT4 is the backup channel of OPT2
  • Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously.

Control:

  • (1) ETHERNET Control interface
  • (2) USB Control interface of upper computer and cascading interface

Size/Weight:

  • Length: 19.0” (482.6mm)
  • Width: 14.6” (372mm)
  • Depth: 3.5” (89mm)
  • Weight 10.1 lbs. (4.6kg)

Electrical/Thermal:

  • Input Power AC 100-240V, 50/60Hz
  • Overall Power Consumption 30W
  • Operating temperature -20~60℃

Approvals:

  • cULus | CE | RoHs | EAC | FCC
  • *Specifications and documentation subject to change without notice.

ADJ MCTRL4K Cut Sheet.pdf
ADJ MCTRL4K User Manual.pdf
