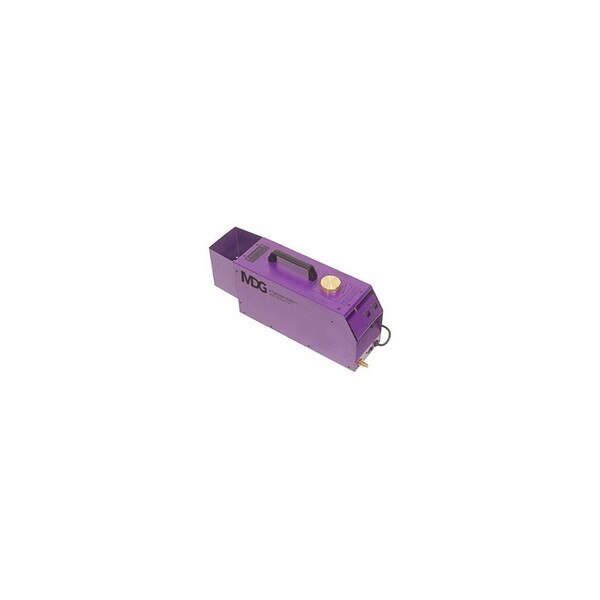

MDG Atmosphere Hazer

(0)No Reviews yet
CALL FOR PRICE
SKU: MDG MDGATM

If you add this item, you're only $149 away from free shipping! (Motor Freight Excluded)

Details

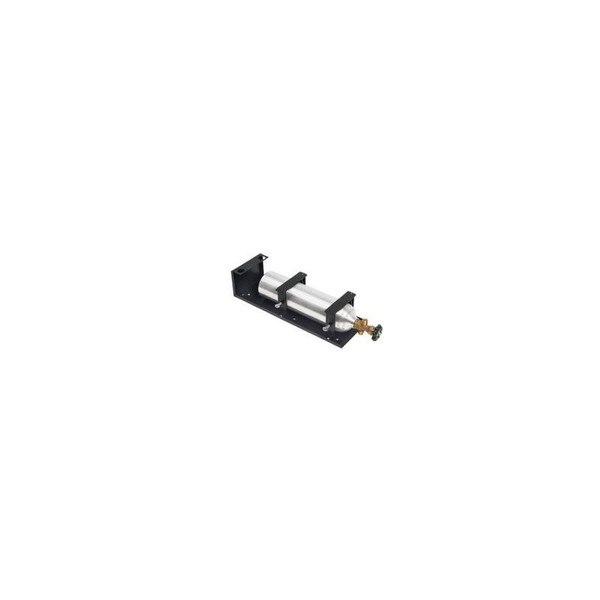

The ATMOSPHERE APS is the standard model of the range. It is also available as a self-contained portable version, with a metal housing below the main generator unit for the storage of a special 3.3 pound Aluminum CO2 bottle.

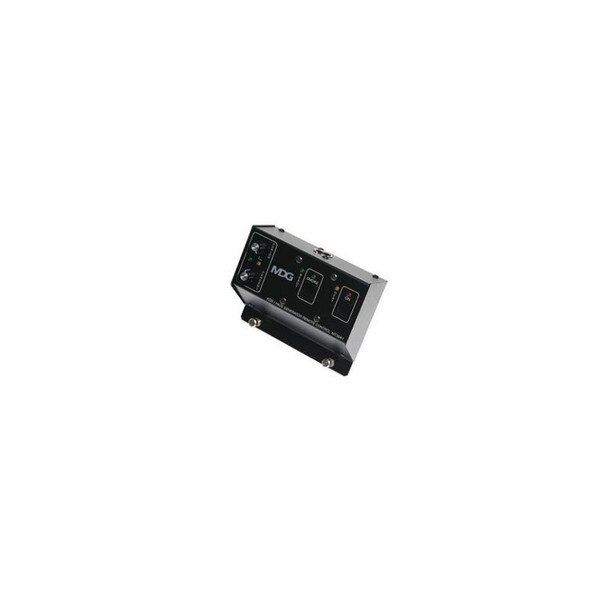

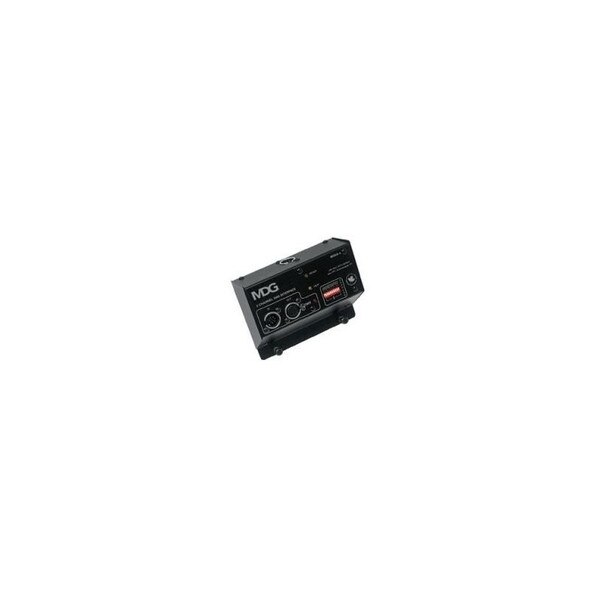

The ATMOSPHERE APS includes a 5' gas hose (a 16" single adapter hose is supplied with the portable version), onboard/remote controller, and 26' XLR5 extension cable for the remote. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control.


CO2 bottles and CO2 regulator are sold separately.

Features:

  • Extremely quiet output with the longest hanging times
  • Continuous or momentary haze emission
  • Automatic Purging System (APS) to prevent build-up and clogging
  • Compatible with remote control timer and DMX interface
  • Detachable remote control and 8 m (26') cable included

Specifications:

  • CO2 Consumption: 0.18 kg (0.4 lb) (per hour at 1.38 bar/20 psi)
  • Reservoir Capacity: 2.5 L (0.66 US gallon)
  • Automatic Purging System (APS): Standard feature
  • Haze Color: Pure white
  • Particle Size: 0.5-0.7 microns
  • Total Running Time: 45 hrs (at 1.38 bar/20 psi with a full tank)
  • Warm-up Time (Maximum): 8 min
  • Fluid Type: MDG Neutral Fluid
  • Operating Voltage: 115 or 230 VAC, 50/60 Hz
  • Power Consumption: 715 W
  • Noise Emission: (at 1 m/3.3') 45.4 dB
  • Dimensions: Length 68.5 cm (27")
  • Width: 18 cm (7")
  • Height: 30 cm (12")
  • Weight: 23 kg (51 lb)
  • Shipping Weight: 34 kg (76 lb) (with flight case)
  • Approval: CE approved, CSA and UL pending

Material_Safety_Data_Sheet_81624_File_2.pdf
Specifications_Sheet_81624.pdf
User_Guide_81624_File_1.pdf
