MDG Ice Fog Compack Low Pressure Unit

(0)No Reviews yet
CALL FOR PRICE
SKU: MDG MDGIFCL

If you add this item, you're only $149 away from free shipping! (Motor Freight Excluded)

Details

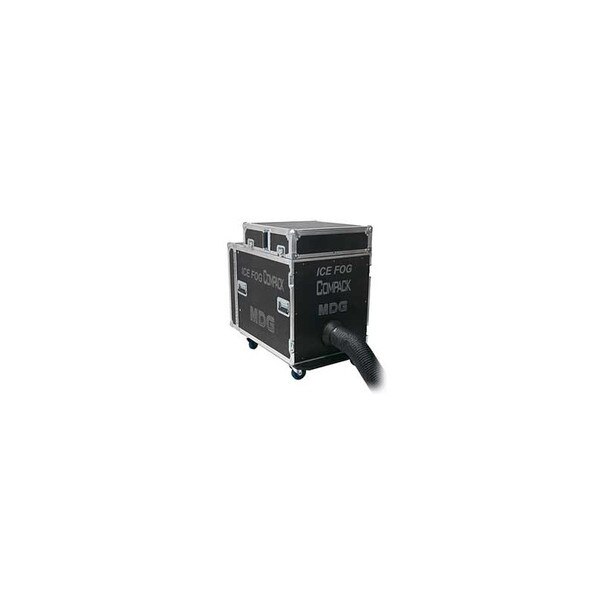

The ICE FOG Compack is the newest product in the MDG range of low fog generators. Smaller than the ICE FOG Q, the ICE FOG Compack operates at 115VAC. The ICE FOG Compack also is available in two versions, for use either with high pressure liquid CO2 or with low pressure refrigerated CO2. The ICE FOG Compack uses liquid CO2, so it is important to use either a high pressure cylinder equipped with a siphon, or to connect to the liquid output of the low pressure Dewar cylinder.

All versions of the ICE FOG Compack include an onboard/remote controller and appropriate hoses. Other control options include a 2-channel DMX Interface and a Remote Control Timer. High-capacity CO2 cylinders are available from your local compressed gas distributor.

Features:
  • Extremely quiet, adjustable low fog output
  • Self-contained unit on wheels for easy transport
  • Compartments for accessories
  • Compatible with remote control timer and DMX interface
  • Detachable remote control and 8 m (26') cable included
  • Convenient compact size
  • Extremely low fluid consumption (0.035 L/1.05 oz per minute at full output)
  • Low pressure/high pressure versions available
Specifications:
  • Fluid consumption 0.035 L (1.05 oz) (per minute at full output)
  • Liquid CO2 Type: Refrigerated
  • Liquid CO2 Consumption (Per Minute): 1.5 L (3.4 lb) at 1500 kPa (225 psi)
  • Reservoir Capacity: 2.5 L (0.66 US gallon)
  • Fog Color: Pure white
  • Particle Size: 0.5-4.5 microns
  • CO2 Running Time: 180 L (48 US gallon) canister (DEWAR) = 120 minutes
  • Warm-up Time (Maximum): 8 minutes
  • Fluid Type: MDG Low Fog Fluid
  • Operating Voltage: 115 or 230 VAC, 50/60 Hz
  • Power Consumption: 1,450 W
  • Dimensions:
    • Total Length: 1.15 m (45 1/8")
    • Operating Length: 1.08 m (42 3/8")
    • Width: 63.5 cm (25")
    • Height: 82.5 cm (32 1/2")
    • Weight: 91 kg (200 lb)
  • Approval: CE approved, CSA and UL pending
  • Included:
    • Remote control
    • 8 m (26') 5-pin XLR extension cable
    • 2.5 m (8') long x 13 cm (5") diameter fog output conduit
    • 3 m (10') insulated low-pressure liquid CO2 input hose with gauge

Data_Sheet_81637_File_1.pdf
Specifications_Sheet_81637.pdf
User_Guide_81637_File_2.pdf
