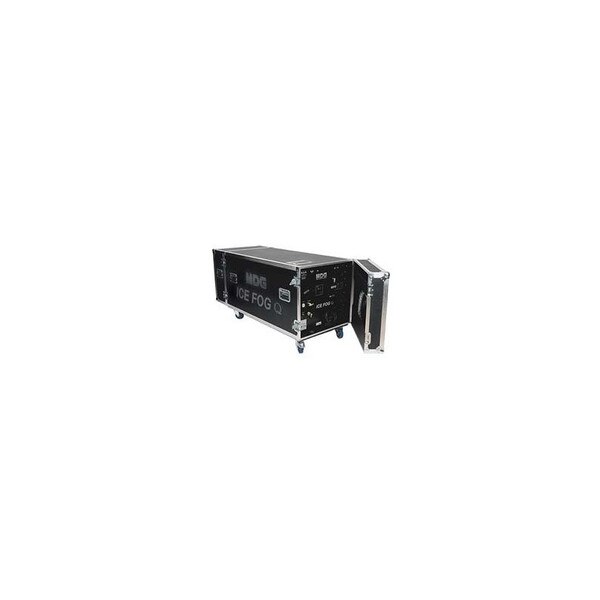

MDG Ice Fog Q Low Fog Generator

The ICE FOG Q is the premier product in the MDG range of low fog generators. The ICE FOG Q connects to a high-capacity refrigerated liquid CO2 Dewar cylinder and a single 208VAC circuit. The ICE FOG Q has three times the output capacity of its smaller sibling, but is still extremely quiet in operation.

The ICE FOG Q includes an onboard/remote controller, a 26' XLR5 extension cable for the remote, and an 8' long x 9" diameter Output Fog Hose, and a 10') Input low pressure Liquid CO2 Insulated Hose. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control. High-capacity refrigerated low-pressure CO2 Dewar cylinders are available from your local compressed gas distributor.

Features:

• Extremely quiet, adjustable low fog output
• Self-contained unit on wheels for easy transport
• Compartments for accessories
• Compatible with remote control timer and DMX interface
• Detachable remote control and 8 m (26 ft) cable included
• The quietest low fog generator on the market
• Low fluid consumption (0.09 L/3 oz per minute at full output)
• Can be placed closer to the action

Specifications:

• Fluid consumption: 0.09 L (3 oz) (per minute at full output)
• Liquid CO2 Type: Low pressure refrigerated
• Liquid CO2 Consumption (Per Minute): 3 L (6.8 lb) at 1500 kPa (225 psi)
• Reservoir Capacity: 2.5 L (0.66 US gallon)
• Fog Color: Pure white
• Particle Size: 0.5 - 4.5 microns
• CO2 Running Time: 180 L (48 US gallon) canister (DEWAR) = 70 minutes
• Warm-up Time (Maximum): 8 minutes
• Fluid Type: MDG Low Fog Fluid
• Operating Voltage: 208 VAC 1Ø or 230 VAC, 50/60 Hz
• Power Consumption: 2,850 W
• Dimensions:
  • Total Length: 1.71 m (67 3/8")
  • Operating Length: 1.51 m (59 1/2")
  • Width: 67 cm (26 3/8")
  • Height: 78 cm (30 5/8")
  • Weight: 113 kg (250 lb)
• Approval: CE approved, CSA and UL pending
• Included:
  • Remote control
  • 8 m (26 ft) 5-pin XLR extension cable
  • 2.5 m (8 ft) long x 13 cm (5 in) diameter fog output conduit
  • 3 m (10 ft) insulated low-pressure liquid CO2 input hose with gauge
