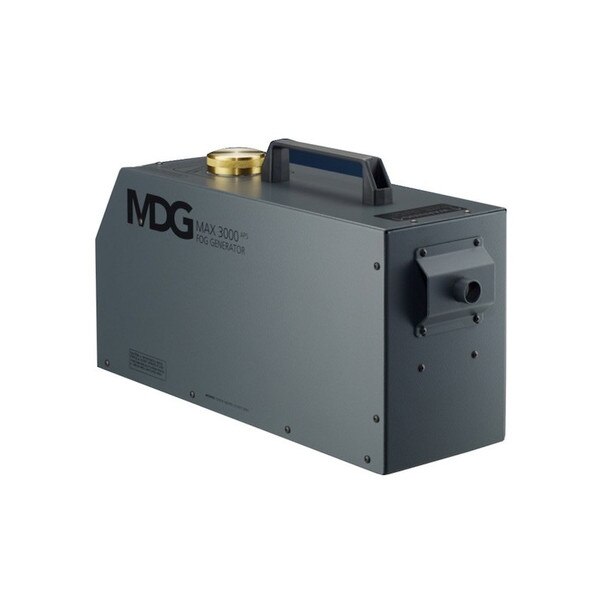

MDG MAX 3000 Fog Generator

(0)No Reviews yet
CALL FOR PRICE
SKU: MDG MDGM3

If you add this item, you're only $149 away from free shipping! (Motor Freight Excluded)

Details

The smallest of the MAX series, powerful and always ready, the MAX 3000 APS gives you fog the moment you need it.

The MAX 3000APS includes a 5' gas hose (a 16" single adapter hose is supplied with the portable version), onboard/remote controller, and 26' XLR5 extension cable for the remote. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control.

CO2 bottles and CO2 regulator are sold separately.

Features:

  • Extremely powerful, adjustable fog output
  • Virtually noiseless, with the finest fog and the longest hanging times
  • Automatic Purging System (APS) to prevent build-up and clogging
  • Compatible with remote control timer and DMX interface
  • Detachable remote control and 8 m (26 ft) cable included
  • Powerful fog output (up to 85 cubic meters / 3,000 cubic ft per minute)
  • Portability option

Specifications:

  • Maximum Fog Output: 85 cubic meters (3,000 cubic ft)
  • Fluid Consumption: 1 L (34 oz) at 2.76 bar (40 psi)
  • Gas Type: CO2 or N2
  • Gas Consumption: 0.07 kg (2.13 lb) at 2.76 bar (40 psi)
  • Reservoir Capacity: 2.5 L (0.66 US gallons)
  • Fog Color: Pure white
  • Particle Size: 0.5 - 0.7 microns
  • Warm-up Time (Maximum): 8 minutes
  • Fluid Type: MDG Neutral Fluid
  • Operating Voltage: 115 or 230 VAC, 50/60 Hz
  • Power Consumption: 715 W
  • Dimensions:
    • Length: 24" (61 cm)
    • Width: 7" (18 cm)
    • Height: 12" (30 cm)
    • Weight: 43 lbs (20 kg)
    • Shipping Weight: 72 lbs (33 kg) (with flight case)
  • Approval: CE certified and ETL field approved

DMX_Interface_User_Guide_97409_File_2.pdf
Data_Sheet_93459_File_1.pdf
Specifications_93459_File_4.pdf
User_Guide_93406_File_1.pdf
