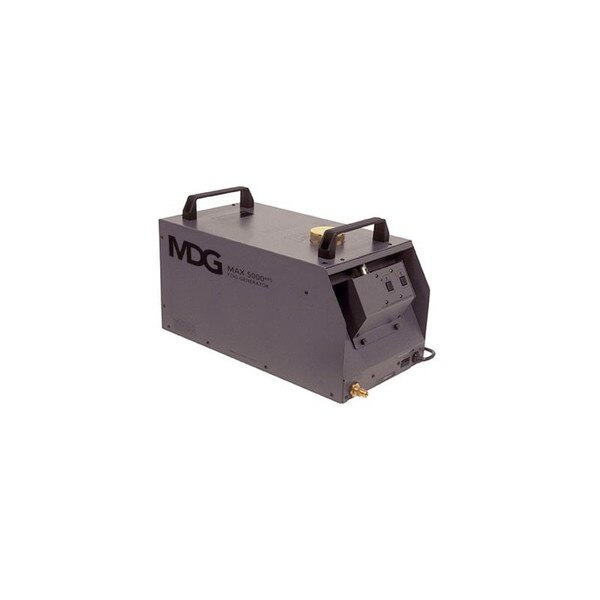

MDG MAX 5000 Fog Generator

The MAX 5000APS fog generator produces a very high volume of the finest fog available, with the longest hang time and the lowest fluid consumption. The MAX 5000APS is very similar to the MAX 3000APS, but has dual outputs to create more than three times the fog output. The MAX 5000APS is also available as a self-contained portable version with a metal housing below the main generator unit for the storage of two special 3.3 pound Aluminum CO2 bottles.

The MAX 5000APS includes a 5' gas hose (a 16" double-bottle adapter hose is supplied with the portable version), onboard/remote controller, and 26' XLR5 extension cable for the remote. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control.

CO2 bottles and CO2 regulator are sold separately.

Features:

• Extremely powerful, adjustable fog output
• Virtually noiseless, with the finest fog and the longest hanging times
• Automatic Purging System (APS) to prevent build-up and clogging
• Compatible with remote control timer and DMX interface
• Detachable remote control and 8 m (26') cable included
• More powerful fog output (up to 218 cubic meters / 7,680 cubic ft per minute)
• Portability option

Specifications:

• Maximum Fog Output: 218 cubic meters (7,680 cubic ft)
• Fluid Consumption: 2.6 L (88 oz) at 2.76 bar (40 psi)
• Gas Type: CO2 or N2
• Gas Consumption Per Hour: 2.25 kg (5 lb) at 2.76 bar (40 psi)
• Reservoir Capacity: 2.5 L (0.66 US gallons)
• Automatic Purging System (APS): Standard feature
• Fog Color: Pure white
• Particle Size: 0.5 - 0.7 microns
• Warm-up Time (Maximum): 8 min
• Fluid Type: MDG Neutral Fluid
• Operating Voltage: 115 or 230 VAC, 50/60 Hz
• Power Consumption: 1,415 W
• Dimensions:
  • Length: 61 cm (24")
  • Width: 28 cm (11")
  • Height: 30 cm (12")
  • Weight: 26 kg (56 lbs)
  • Shipping Weight: 38 kg (85 lbs) (with flight case)
• Approvals: CE approved, CSA and UL pending
