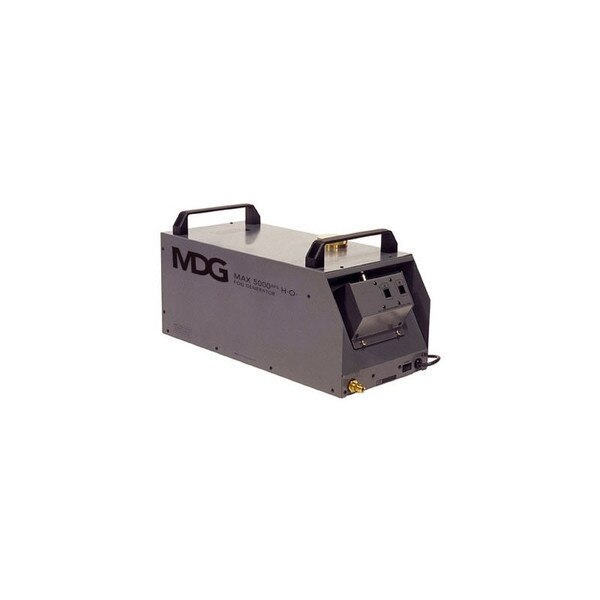

MDG MAX 5000 High Output Fog Generator - 208V

The MAX 5000 APS H.O. (High Output) system is identical in function to the standard MAX 5000 APS, with a larger fluid reservoir and even greater fog output! The unit connects to a single high-pressure liquid Nitrogen (N2) cylinder and a single 208VAC circuit, but with a 65% greater fog output.

The MAX 5000 APS H.O. includes a 5' gas hose, onboard/remote controller, and 26' XLR5 extension cable for the remote. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control.

N2 bottles and N2 regulator are sold separately.

Features:

• Extremely powerful, adjustable fog output
• Virtually noiseless, with the finest fog and the longest hanging times
• Automatic Purging System (APS) to prevent build-up and clogging
• Compatible with remote control timer and DMX interface
• Detachable remote control and 8 m (26 ft) cable included
• Maximum Fog Output (up to 445 cubic meters / 15,750 cubic ft per minute)
• Operates with N2 only

Specifications:

• Maximum Fog Output: 445 cubic meters (15,750 cubic ft)
• Fluid Consumption: 4.5 L (1.2 US gallons) at 2.76 bar (40 psi)
• Gas Type: N2 Only
• Gas Consumption Per Hour: 5 kg (11 lb) at 4.14 bar (60 psi)
• Reservoir Capacity: 6.5 L (1.7 US gallons)
• Automatic Purging System (APS): Standard feature
• Fog Color: Pure white
• Particle Size: 0.5 - 0.7 microns
• Warm-up Time (Maximum): 8 minutes
• Fluid Type: MDG Neutral Fluid
• Operating Voltage: 208 VAC 1Ø or 230 VAC, 50/60 Hz
• Power Consumption: 2.815 W
• Dimensions:
  • Length: 68.5 cm (27")
  • Width: 28 cm (11")
  • Height: 30 cm (12")
  • Weight: 33 kg (72 lbs)
  • Shipping Weight: 44 kg (97 lbs) (with flight case)
• Approvals: CE approved, CSA and UL pending
