MDG MAX 5000 High Output Fog Generator - 230V

(0)No Reviews yet
$0.00
SKU: MDG MDGM5HO230V

Details

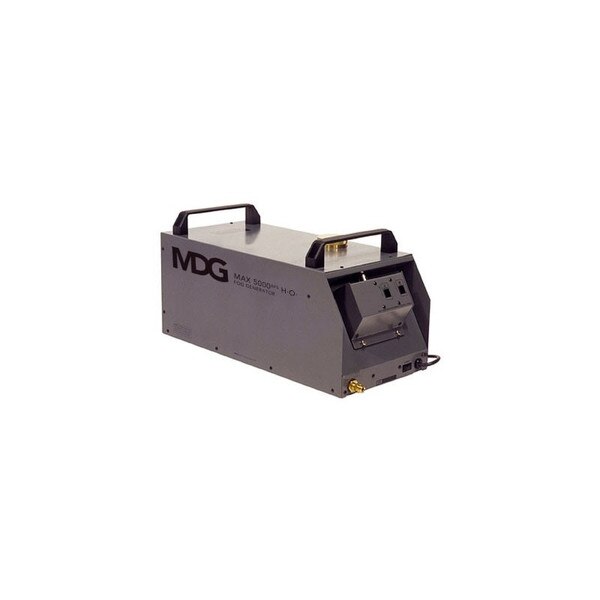

The MAX 5000 APS H.O. (High Output) system is identical in function to the standard MAX 5000 APS, with a larger fluid reservoir and even greater fog output! The unit connects to a single high-pressuer liquid Nitrogen (N2) cylinder and a single 230VAC circuit, but with a 65% greater fog output.

The MAX 5000 APS H.O. includes a 5' gas hose, onboard/remote controller, and 26' XLR5 extension cable for the remote. Other control options include a 2-channel DMX Interface and a Remote Control Timer. Both of these control options connect in place of the standard Remote Control.

N2 bottles and N2 regulator are sold separately.

Features:

  • Extremely powerful, adjustable fog output
  • Virtually noiseless, with the finest fog and the longest hanging times
  • Automatic Purging System (APS) to prevent build-up and clogging
  • Compatible with remote control timer and DMX interface
  • Detachable remote control and 8 m (26 ft) cable included
  • Maximum Fog Output (up to 445 cubic meters / 15,750 cubic ft per minute)
  • Operates with N2 only
Specifications:
  • Maximum Fog Output: 445 cubic meters (15,750 cubic ft)
  • Fluid Consumption: 4.5 L (1.2 US gallons) at 2.76 bar (40 psi)
  • Gas Type: N2 Only
  • Gas Consumption Per Hour: 5 kg (11 lb) at 4.14 bar (60 psi)
  • Reservoir Capacity: 6.5 L (1.7 US gallons)
  • Automatic Purging System (APS): Standard feature
  • Fog Color: Pure white
  • Particle Size: 0.5 - 0.7 microns
  • Warm-up Time (Maximum): 8 minutes
  • Fluid Type: MDG Neutral Fluid
  • Operating Voltage: 208 VAC 1Ø or 230 VAC, 50/60 Hz
  • Power Consumption: 2.815 W
  • Dimensions:
    • Length: 68.5 cm (27")
    • Width: 28 cm (11")
    • Height: 30 cm (12")
    • Weight: 33 kg (72 lbs)
    • Shipping Weight: 44 kg (97 lbs) (with flight case)
  • Approvals: CE approved, CSA and UL pending

Material_Safety_Data_Sheet_93459_File_2.pdf
Data_Sheet_93459_File_1.pdf
Specifications_93459_File_4.pdf
User_Guide_93406_File_1.pdf
