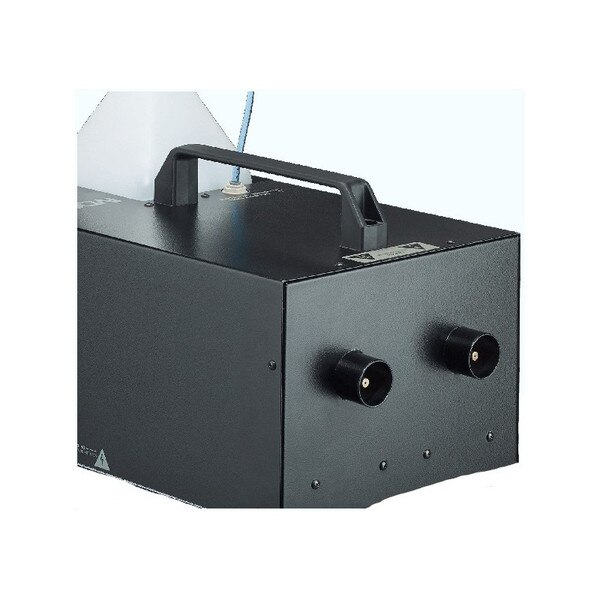

MDG Mega MAX Fog Generator

(0)No Reviews yet
$0.00
SKU: MDG MDGMM20

Details

The Mega Max Fogger was designed with safety and reliability in mind. It is capable of generating pure white, non-toxic fog for as long as you have fluid (100% duty cycle). This Fogger is also equipped, as a standard feature, with the Automatic Extract SystemTM (AESTM). This system extracts the fluid from the heating modules after every emission of fog preventing residual build up and clogging as well as reducing incidental puffing.

At the heart of the MDG Fogger is an electronic assembly that keeps the heat exchanger(s) at a very stable temperature, which integrates 3 types of fail-safe systems. Those 3 types of electronic fail-safe systems are designed to protect against over and under-heating conditions and against component failure. When an overheating condition is detected, or if the internal temperature of the Fogger reaches 60 degrees C (140 degrees F), a safety circuit is triggered. This circuit removes the power to the heating elements, preventing hazardous conditions. When an under-heating condition occurs, the Fogger will stop producing fog until the temperature of the heating module is back within safe parameters.

Features:

  • Portable and Lightweight for maximum versatility
  • Detachable 26’ (8m) Remote Control cable included
  • Maximum output of 150 m3 (5,000 ft3) per minute
  • Compatible with DMX Interface and Remote Control Timer

Specifications:

  • Maximum fog output per minute: 150 m3 (5,000 ft3)
  • Fluid capacity: 1.32 US gallon (5 L)
  • Warm-up time: 8 minutes (maximum)
  • Operating voltage: 208 VAC 1Ø or 230 VAC, 50/60 Hz
  • Power consumption: 2,815W
  • Approval: CE certified, CSA, UL pending

Dimensions

  • Length: 19” (49cm)
  • Width: 11” (28cm)
  • Height: 10” (25cm)
  • Weight: 35 lbs. (16kg)
  • Shipping Weight: 60 lbs. with Flight Case (27kg)

Data_Sheet_98004_File_2.pdf
User_Manual_98004_File_1.pdf
