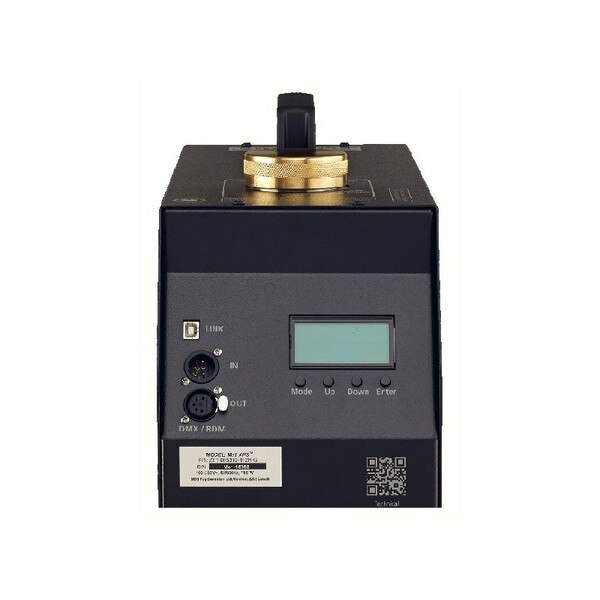

MDG Single High Output Fog Generator

Me1 is the first and smallest in our powerful Me family of fog generators.

Features:

• With its single nozzle, the maximum fog output is 100 m³ (3,531 ft³) per minute.
• 0-100% fog output control from your DMX/RDM device, or direct local control.
• MAX 3000 APS configuration setting.
• 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Specifications:

• Maximum fog output: 100 m³ (3,531 ft³) per minute
• Fluid consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
• Gas type: CO² or N²
• Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
• Reservoir capacity: 2.5 L (0.66 US gallon)
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715W

Dimensions

• Length: 24” (61cm)
• Width: 7” (18cm)
• Height: 12” (30cm)
• Approval: CE certified, CSA and UL approved
