Martin Atomic Colors for Atomic 3000
Details

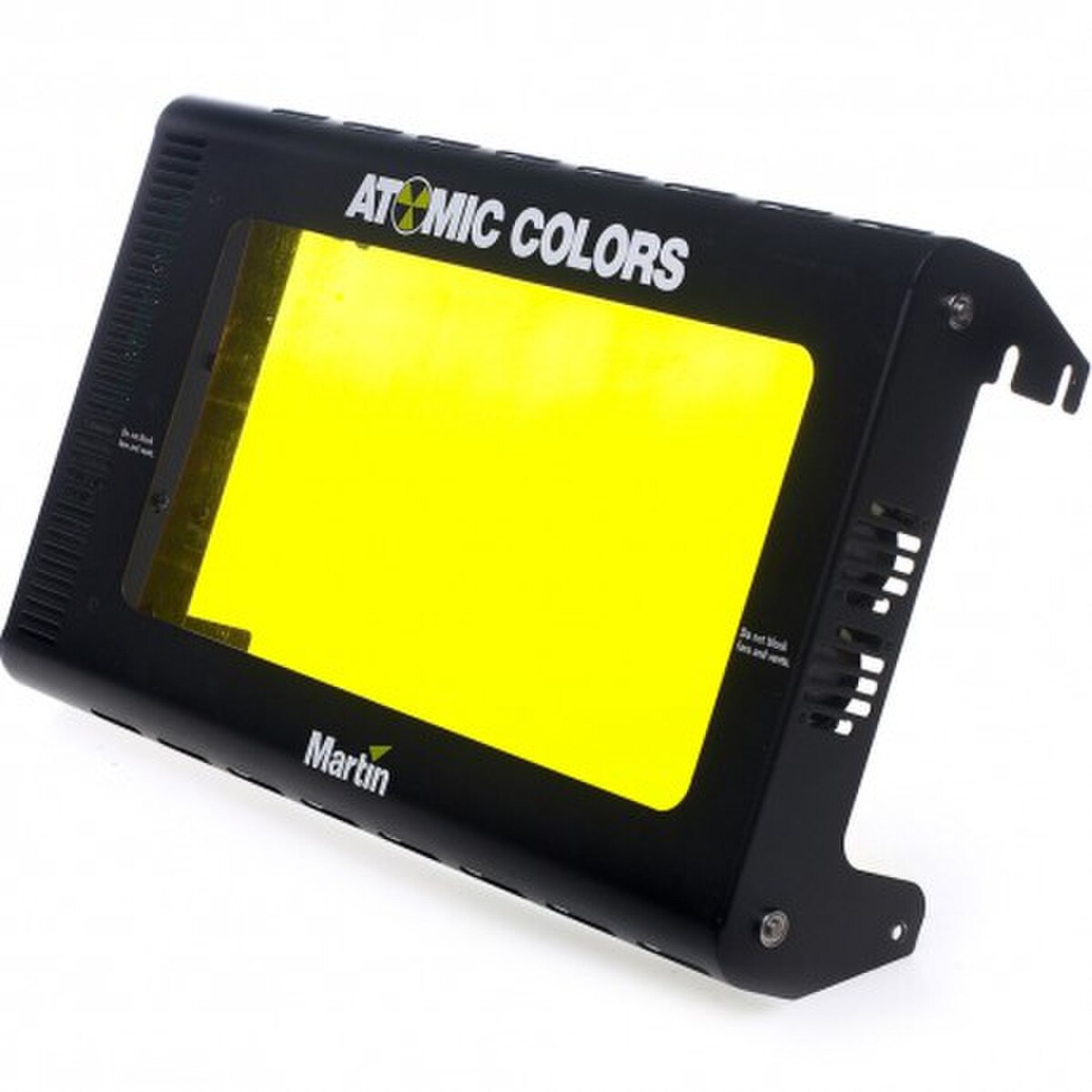

The Atomic Colors is a specially designed color scroller accessory which fits onto the front of the original Atomic 3000 DMX and also the new Atomic 3000 LED - allowing up to ten brightly colored strobe and blinder effects. In combination with the Aura backlight and main output of the Atomic 3000 LED it also delivers stunning three-dimensional eye candy looks.
Specifications:
- PHYSICAL
- Length: 470 mm (18.5 in.)
- Width: 273 mm (10.7 in.)
- Height: 102 mm (4.0 in.)
- Weight: 2.5 kg (5.5 lbs.)
- Color gel thickness: 0.075 mm (0.003 in.) - 0.125 mm (0.005 in.)
- DYNAMIC EFFECTS
- Color gel scrolling: 10 standard colors supplied, custom color gel strings can be fabricated by customer
- CONTROL AND PROGRAMMING
- Control options: DMX
- Cooling fan speed control: Onboard control panel, DMX
- Gel scrolling speed, 'gel saver' mode, light-activated fan operation: Onboard control panel
- Setting and addressing: Three-button LED control panel
- DMX channels: 1 or 2
- DMX compliance: USITT DMX512/1990
- CONSTRUCTION
- Housing: Steel
- Color: Black
- Finish: Electrostatic powder-coated
- Protection rating: IP20
- INSTALLATION
- Mounting points: Fastens to Atomic fixture
- Location: Indoor use only, mounted on Atomic fixture
- Orientation: Any
- CONNECTIONS
- Combined power and DMX data from Atomic fixture: 4-pin XLR
- ELECTRICAL
- DC Power: 24 V (+/- 10%)
- DC current: 0.55 A (max.)
- Power source when used with xenon tube-based Atomic 3000 DMX: MPU-02 or MPU-08 external PSU
- THERMAL
- Cooling: Forced air (4-speed fans)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 10° C (50° F)
- INCLUDED ITEMS
- 10-color gel string (installed): P/N 91611090
- 5 m power/data cable, 4-pin XLR
- User manual
- ACCESSORIES
- MPU-02 Power Supply Unit*: P/N 91611084
- MPU-08 Power Supply Unit*: P/N 91611085
- *For use with original Atomic 3000 DMX only. Do not use a PSU when installing on Atomic 3000 LED
